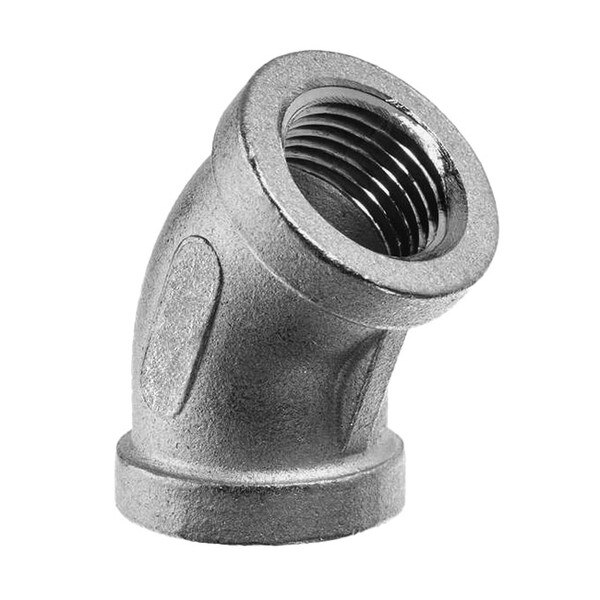

150# Cast NPT Threaded 45° Pipe Elbows - Stainless Steel
150# investment cast 45 degree pipe elbows with threaded end connections available in 304 and 316 stainless steel. Manufactured to A182 specification.
 | |||||||||
| Part # | Size (NPT) | d1 | d2 | d3 | C | E | H | I | Material |
|---|---|---|---|---|---|---|---|---|---|
| 150TH454S-013 | 1/8" | 0.125" (3.2mm) | 0.63" (16.0mm) | 0.53" (13.5mm) | 0.28" (7.1mm) | 0.63" (16.0mm) | 0.24" (6.1mm) | 0.08" (2.0mm) | 304 SS |
| 150TH454S-025 | 1/4" | 0.25" (6.4mm) | 0.75" (19.1mm) | 0.61" (15.5mm) | 0.37" (9.4mm) | 0.67" (17.0mm) | 0.26" (6.6mm) | 0.08" (2.0mm) | 304 SS |
| 150TH454S-038 | 3/8" | 0.375" (9.5mm) | 0.89" (22.6mm) | 0.77" (19.6mm) | 0.38" (9.7mm) | 0.75" (19.1mm) | 0.24" (6.1mm) | 0.08" (2.0mm) | 304 SS |
| 150TH454S-050 | 1/2" | 0.5" (12.7mm) | 1.18" (30.0mm) | 1.10" (27.9mm) | 0.39" (9.9mm) | 0.83" (21.1mm) | 0.31" (7.9mm) | 0.10" (2.5mm) | 304 SS |
| 150TH454S-075 | 3/4" | 0.75" (19.1mm) | 1.42" (36.1mm) | 1.34" (34.0mm) | 0.43" (10.9mm) | 0.94" (23.9mm) | 0.39" (9.9mm) | 0.10" (2.5mm) | 304 SS |
| 150TH454S-100 | 1" | 1" (25.4mm) | 1.77" (45.0mm) | 1.57" (39.9mm) | 0.55" (14.0mm) | 1.10" (27.9mm) | 0.39" (9.9mm) | 0.10" (2.5mm) | 304 SS |
| 150TH454S-125 | 1-1/4" | 1.25" (31.8mm) | 2.22" (56.4mm) | 1.91" (48.5mm) | 0.61" (15.5mm) | 1.30" (33.0mm) | 0.43" (10.9mm) | 0.10" (2.5mm) | 304 SS |
| 150TH454S-150 | 1-1/2" | 1.5" (38.1mm) | 2.30" (58.4mm) | 2.20" (55.9mm) | 0.61" (15.5mm) | 1.42" (36.1mm) | 0.49" (12.4mm) | 0.10" (2.5mm) | 304 SS |
| 150TH454S-200 | 2" | 2" (50.8mm) | 2.83" (71.9mm) | 2.68" (68.1mm) | 0.65" (16.5mm) | 1.65" (41.9mm) | 0.51" (13.0mm) | 0.10" (2.5mm) | 304 SS |
| 150TH454S-250 | 2-1/2" | 2.5" (63.5mm) | 3.54" (89.9mm) | 3.43" (87.1mm) | 0.87" (22.1mm) | 1.93" (49.0mm) | 0.55" (14.0mm) | 0.16" (4.1mm) | 304 SS |
| 150TH454S-300 | 3" | 3" (76.2mm) | 4.17" (105.9mm) | 4.00" (101.6mm) | 0.98" (24.9mm) | 2.13" (54.1mm) | 0.59" (15.0mm) | 0.16" (4.1mm) | 304 SS |
| 150TH454S-400 | 4" | 4" (101.6mm) | 6.24" (158.5mm) | 4.25" (108.0mm) | 0.98" (24.9mm) | 2.56" (65.0mm) | 0.59" (15.0mm) | 0.16" (4.1mm) | 304 SS |
| 150TH456S-013 | 1/8" | 0.125" (3.2mm) | 0.63" (16.0mm) | 0.53" (13.5mm) | 0.28" (7.1mm) | 0.63" (16.0mm) | 0.24" (6.1mm) | 0.08" (2.0mm) | 316 SS |
| 150TH456S-025 | 1/4" | 0.25" (6.4mm) | 0.75" (19.1mm) | 0.61" (15.5mm) | 0.37" (9.4mm) | 0.67" (17.0mm) | 0.26" (6.6mm) | 0.08" (2.0mm) | 316 SS |
| 150TH456S-038 | 3/8" | 0.375" (9.5mm) | 0.89" (22.6mm) | 0.77" (19.6mm) | 0.38" (9.7mm) | 0.75" (19.1mm) | 0.24" (6.1mm) | 0.08" (2.0mm) | 316 SS |
| 150TH456S-050 | 1/2" | 0.5" (12.7mm) | 1.18" (30.0mm) | 1.10" (27.9mm) | 0.39" (9.9mm) | 0.83" (21.1mm) | 0.31" (7.9mm) | 0.10" (2.5mm) | 316 SS |
| 150TH456S-075 | 3/4" | 0.75" (19.1mm) | 1.42" (36.1mm) | 1.34" (34.0mm) | 0.43" (10.9mm) | 0.94" (23.9mm) | 0.39" (9.9mm) | 0.10" (2.5mm) | 316 SS |
| 150TH456S-100 | 1" | 1" (25.4mm) | 1.77" (45.0mm) | 1.57" (39.9mm) | 0.55" (14.0mm) | 1.10" (27.9mm) | 0.39" (9.9mm) | 0.10" (2.5mm) | 316 SS |
| 150TH456S-125 | 1-1/4" | 1.25" (31.8mm) | 2.22" (56.4mm) | 1.91" (48.5mm) | 0.61" (15.5mm) | 1.30" (33.0mm) | 0.43" (10.9mm) | 0.10" (2.5mm) | 316 SS |
| 150TH456S-150 | 1-1/2" | 1.5" (38.1mm) | 2.30" (58.4mm) | 2.20" (55.9mm) | 0.61" (15.5mm) | 1.42" (36.1mm) | 0.49" (12.4mm) | 0.10" (2.5mm) | 316 SS |
| 150TH456S-200 | 2" | 2" (50.8mm) | 2.83" (71.9mm) | 2.68" (68.1mm) | 0.65" (16.5mm) | 1.65" (41.9mm) | 0.51" (13.0mm) | 0.10" (2.5mm) | 316 SS |
| 150TH456S-250 | 2-1/2" | 2.5" (63.5mm) | 3.54" (89.9mm) | 3.43" (87.1mm) | 0.87" (22.1mm) | 1.93" (49.0mm) | 0.55" (14.0mm) | 0.16" (4.1mm) | 316 SS |
| 150TH456S-300 | 3" | 3" (76.2mm) | 4.17" (105.9mm) | 4.00" (101.6mm) | 0.98" (24.9mm) | 2.13" (54.1mm) | 0.59" (15.0mm) | 0.16" (4.1mm) | 316 SS |
| 150TH456S-400 | 4" | 4" (101.6mm) | 6.24" (158.5mm) | 4.25" (108.0mm) | 0.98" (24.9mm) | 2.56" (65.0mm) | 0.59" (15.0mm) | 0.16" (4.1mm) | 316 SS |
