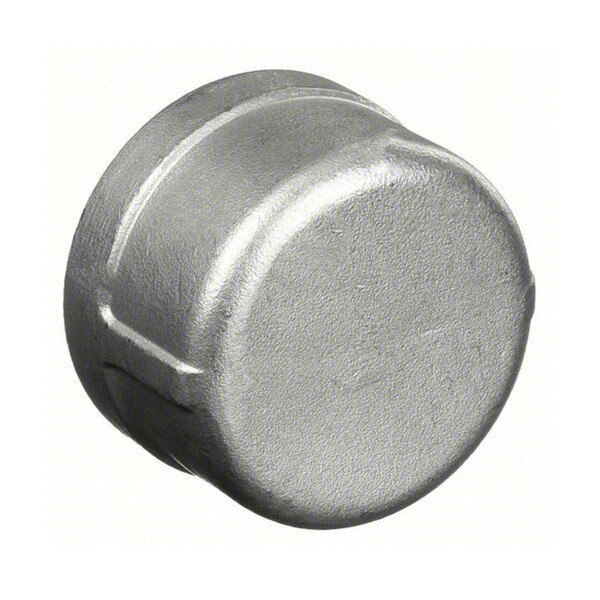

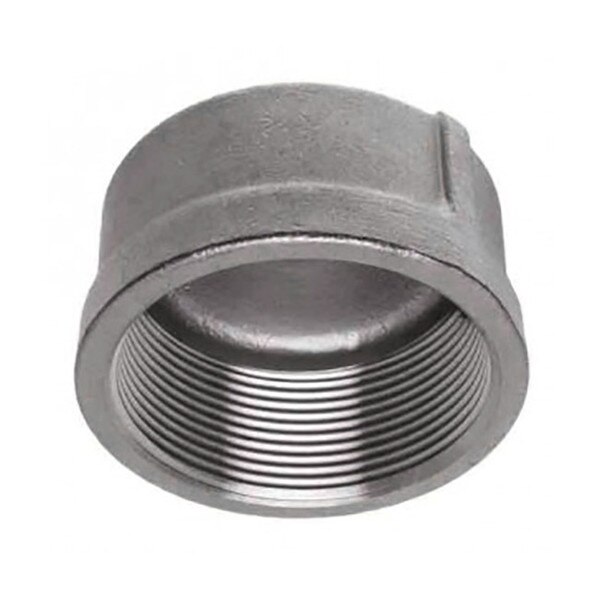

150# Cast NPT Threaded Pipe Caps - Stainless Steel
150# investment cast pipe caps with threaded end connections available in 304 and 316 stainless steel. Manufactured to A182 specification.
 | ||||||||||
| Part # | Size (NPT) | d1 | d2 | d3 | A | B | C | H | I | Material |
|---|---|---|---|---|---|---|---|---|---|---|
| 150THCAP4S-013 | 1/8" | 0.125" (3.2mm) | 0.63" (16.0mm) | 0.53" (13.5mm) | 0.59" (15.0mm) | 0.47" (11.9mm) | 0.24" (6.1mm) | 0.26" (6.6mm) | 0.12" (3.0mm) | 304 SS |
| 150THCAP4S-025 | 1/4" | 0.25" (6.4mm) | 0.79" (20.1mm) | 0.71" (18.0mm) | 0.87" (22.1mm) | 0.75" (19.1mm) | 0.37" (9.4mm) | 0.26" (6.6mm) | 0.12" (3.0mm) | 304 SS |
| 150THCAP4S-038 | 3/8" | 0.375" (9.5mm) | 1.00" (25.4mm) | 0.93" (23.6mm) | 0.96" (24.4mm) | 0.87" (22.1mm) | 0.38" (9.7mm) | 0.30" (7.6mm) | 0.10" (2.5mm) | 304 SS |
| 150THCAP4S-050 | 1/2" | 0.5" (12.7mm) | 1.18" (30.0mm) | 1.10" (27.9mm) | 1.10" (27.9mm) | 0.98" (24.9mm) | 0.39" (9.9mm) | 0.30" (7.6mm) | 0.12" (3.0mm) | 304 SS |
| 150THCAP4S-075 | 3/4" | 0.75" (19.1mm) | 1.42" (36.1mm) | 1.30" (33.0mm) | 1.10" (27.9mm) | 0.98" (24.9mm) | 0.39" (9.9mm) | 0.33" (8.4mm) | 0.12" (3.0mm) | 304 SS |
| 150THCAP4S-100 | 1" | 1" (25.4mm) | 1.75" (44.5mm) | 1.63" (41.4mm) | 1.26" (32.0mm) | 1.14" (29.0mm) | 0.55" (14.0mm) | 0.35" (8.9mm) | 0.12" (3.0mm) | 304 SS |
| 150THCAP4S-125 | 1-1/4" | 1.25" (31.8mm) | 2.09" (53.1mm) | 1.97" (50.0mm) | 1.28" (32.5mm) | 1.12" (28.4mm) | 0.65" (16.5mm) | 0.43" (10.9mm) | 0.16" (4.1mm) | 304 SS |
| 150THCAP4S-150 | 1-1/2" | 1.5" (38.1mm) | 2.36" (59.9mm) | 2.24" (56.9mm) | 1.42" (36.1mm) | 1.22" (31.0mm) | 0.65" (16.5mm) | 0.43" (10.9mm) | 0.20" (5.1mm) | 304 SS |
| 150THCAP4S-200 | 2" | 2" (50.8mm) | 2.91" (73.9mm) | 2.76" (70.1mm) | 1.54" (39.1mm) | 1.34" (34.0mm) | 0.71" (18.0mm) | 0.47" (11.9mm) | 0.20" (5.1mm) | 304 SS |
| 150THCAP4S-250 | 2-1/2" | 2.5" (63.5mm) | 3.58" (90.9mm) | 3.39" (86.1mm) | 1.69" (42.9mm) | 1.54" (39.1mm) | 0.87" (22.1mm) | 0.55" (14.0mm) | 0.24" (6.1mm) | 304 SS |
| 150THCAP4S-300 | 3" | 3" (76.2mm) | 4.33" (110.0mm) | 4.09" (103.9mm) | 1.87" (47.5mm) | 1.63" (41.4mm) | 0.91" (23.1mm) | 0.55" (14.0mm) | 0.24" (6.1mm) | 304 SS |
| 150THCAP4S-400 | 4" | 4" (101.6mm) | 5.47" (138.9mm) | 5.24" (133.1mm) | 2.05" (52.1mm) | 1.77" (45.0mm) | 1.02" (25.9mm) | 0.59" (15.0mm) | 0.24" (6.1mm) | 304 SS |
| 150THCAP6S-013 | 1/8" | 0.125" (3.2mm) | 0.63" (16.0mm) | 0.53" (13.5mm) | 0.59" (15.0mm) | 0.47" (11.9mm) | 0.24" (6.1mm) | 0.26" (6.6mm) | 0.12" (3.0mm) | 316 SS |
| 150THCAP6S-025 | 1/4" | 0.25" (6.4mm) | 0.79" (20.1mm) | 0.71" (18.0mm) | 0.87" (22.1mm) | 0.75" (19.1mm) | 0.37" (9.4mm) | 0.26" (6.6mm) | 0.12" (3.0mm) | 316 SS |
| 150THCAP6S-038 | 3/8" | 0.375" (9.5mm) | 1.00" (25.4mm) | 0.93" (23.6mm) | 0.96" (24.4mm) | 0.87" (22.1mm) | 0.38" (9.7mm) | 0.30" (7.6mm) | 0.10" (2.5mm) | 316 SS |
| 150THCAP6S-050 | 1/2" | 0.5" (12.7mm) | 1.18" (30.0mm) | 1.10" (27.9mm) | 1.10" (27.9mm) | 0.98" (24.9mm) | 0.39" (9.9mm) | 0.30" (7.6mm) | 0.12" (3.0mm) | 316 SS |
| 150THCAP6S-075 | 3/4" | 0.75" (19.1mm) | 1.42" (36.1mm) | 1.30" (33.0mm) | 1.10" (27.9mm) | 0.98" (24.9mm) | 0.39" (9.9mm) | 0.33" (8.4mm) | 0.12" (3.0mm) | 316 SS |
| 150THCAP6S-100 | 1" | 1" (25.4mm) | 1.75" (44.5mm) | 1.63" (41.4mm) | 1.26" (32.0mm) | 1.14" (29.0mm) | 0.55" (14.0mm) | 0.35" (8.9mm) | 0.12" (3.0mm) | 316 SS |
| 150THCAP6S-125 | 1-1/4" | 1.25" (31.8mm) | 2.09" (53.1mm) | 1.97" (50.0mm) | 1.28" (32.5mm) | 1.12" (28.4mm) | 0.65" (16.5mm) | 0.43" (10.9mm) | 0.16" (4.1mm) | 316 SS |
| 150THCAP6S-150 | 1-1/2" | 1.5" (38.1mm) | 2.36" (59.9mm) | 2.24" (56.9mm) | 1.42" (36.1mm) | 1.22" (31.0mm) | 0.65" (16.5mm) | 0.43" (10.9mm) | 0.20" (5.1mm) | 316 SS |
| 150THCAP6S-200 | 2" | 2" (50.8mm) | 2.91" (73.9mm) | 2.76" (70.1mm) | 1.54" (39.1mm) | 1.34" (34.0mm) | 0.71" (18.0mm) | 0.47" (11.9mm) | 0.20" (5.1mm) | 316 SS |
| 150THCAP6S-250 | 2-1/2" | 2.5" (63.5mm) | 3.58" (90.9mm) | 3.39" (86.1mm) | 1.69" (42.9mm) | 1.54" (39.1mm) | 0.87" (22.1mm) | 0.55" (14.0mm) | 0.24" (6.1mm) | 316 SS |
| 150THCAP6S-300 | 3" | 3" (76.2mm) | 4.33" (110.0mm) | 4.09" (103.9mm) | 1.87" (47.5mm) | 1.63" (41.4mm) | 0.91" (23.1mm) | 0.55" (14.0mm) | 0.24" (6.1mm) | 316 SS |
| 150THCAP6S-400 | 4" | 4" (101.6mm) | 5.47" (138.9mm) | 5.24" (133.1mm) | 2.05" (52.1mm) | 1.77" (45.0mm) | 1.02" (25.9mm) | 0.59" (15.0mm) | 0.24" (6.1mm) | 316 SS |
