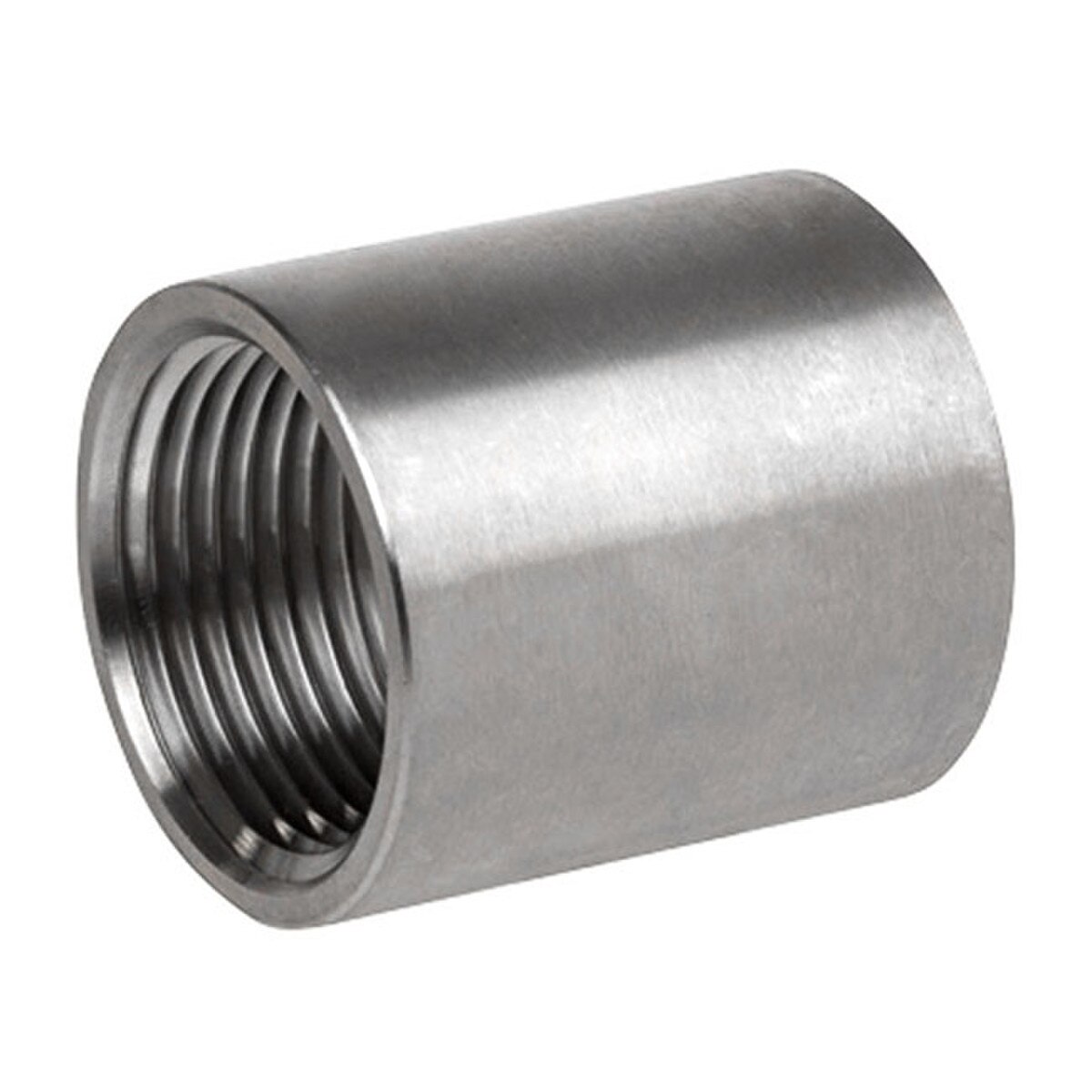

150# Cast NPT Threaded Pipe Full Couplings - Stainless Steel
150# investment cast pipe full couplings with threaded end connections available in 304 and 316 stainless steel. Manufactured to A182 specification.
 | |||||
| Part # | Size (NPT) | d1 | d3 | L2 | Material |
|---|---|---|---|---|---|
| 150THCP4S-013 | 1/8" | 0.125" (3.2mm) | 0.55" (14.0mm) | 0.79" (20.1mm) | 304 SS |
| 150THCP4S-025 | 1/4" | 0.25" (6.4mm) | 0.73" (18.5mm) | 1.06" (26.9mm) | 304 SS |
| 150THCP4S-038 | 3/8" | 0.375" (9.5mm) | 0.85" (21.6mm) | 1.10" (27.9mm) | 304 SS |
| 150THCP4S-050 | 1/2" | 0.5" (12.7mm) | 1.04" (26.4mm) | 1.42" (36.1mm) | 304 SS |
| 150THCP4S-075 | 3/4" | 0.75" (19.1mm) | 1.26" (32.0mm) | 1.54" (39.1mm) | 304 SS |
| 150THCP4S-100 | 1" | 1" (25.4mm) | 1.56" (39.6mm) | 1.69" (42.9mm) | 304 SS |
| 150THCP4S-125 | 1-1/4" | 1.25" (31.8mm) | 1.91" (48.5mm) | 1.89" (48.0mm) | 304 SS |
| 150THCP4S-150 | 1-1/2" | 1.5" (38.1mm) | 2.15" (54.6mm) | 1.89" (48.0mm) | 304 SS |
| 150THCP4S-200 | 2" | 2" (50.8mm) | 2.62" (66.5mm) | 2.20" (55.9mm) | 304 SS |
| 150THCP4S-250 | 2-1/2" | 2.5" (63.5mm) | 3.31" (84.1mm) | 2.56" (65.0mm) | 304 SS |
| 150THCP4S-300 | 3" | 3" (76.2mm) | 3.94" (100.1mm) | 2.80" (71.1mm) | 304 SS |
| 150THCP4S-400 | 4" | 4" (101.6mm) | 5.08" (129.0mm) | 3.27" (83.1mm) | 304 SS |
| 150THCP4S-600 | 6" | 6" (152.4mm) | 7.28" (184.9mm) | 3.96" (100.6mm) | 304 SS |
| 150THCP6S-013 | 1/8" | 0.125" (3.2mm) | 0.55" (14.0mm) | 0.79" (20.1mm) | 316 SS |
| 150THCP6S-025 | 1/4" | 0.25" (6.4mm) | 0.73" (18.5mm) | 1.06" (26.9mm) | 316 SS |
| 150THCP6S-038 | 3/8" | 0.375" (9.5mm) | 0.85" (21.6mm) | 1.10" (27.9mm) | 316 SS |
| 150THCP6S-050 | 1/2" | 0.5" (12.7mm) | 1.04" (26.4mm) | 1.42" (36.1mm) | 316 SS |
| 150THCP6S-075 | 3/4" | 0.75" (19.1mm) | 1.26" (32.0mm) | 1.54" (39.1mm) | 316 SS |
| 150THCP6S-100 | 1" | 1" (25.4mm) | 1.56" (39.6mm) | 1.69" (42.9mm) | 316 SS |
| 150THCP6S-125 | 1-1/4" | 1.25" (31.8mm) | 1.91" (48.5mm) | 1.89" (48.0mm) | 316 SS |
| 150THCP6S-150 | 1-1/2" | 1.5" (38.1mm) | 2.15" (54.6mm) | 1.89" (48.0mm) | 316 SS |
| 150THCP6S-200 | 2" | 2" (50.8mm) | 2.62" (66.5mm) | 2.20" (55.9mm) | 316 SS |
| 150THCP6S-250 | 2-1/2" | 2.5" (63.5mm) | 3.31" (84.1mm) | 2.56" (65.0mm) | 316 SS |
| 150THCP6S-300 | 3" | 3" (76.2mm) | 3.94" (100.1mm) | 2.80" (71.1mm) | 316 SS |
| 150THCP6S-400 | 4" | 4" (101.6mm) | 5.08" (129.0mm) | 3.27" (83.1mm) | 316 SS |
| 150THCP6S-600 | 6" | 6" (152.4mm) | 7.28" (184.9mm) | 3.96" (100.6mm) | 316 SS |
