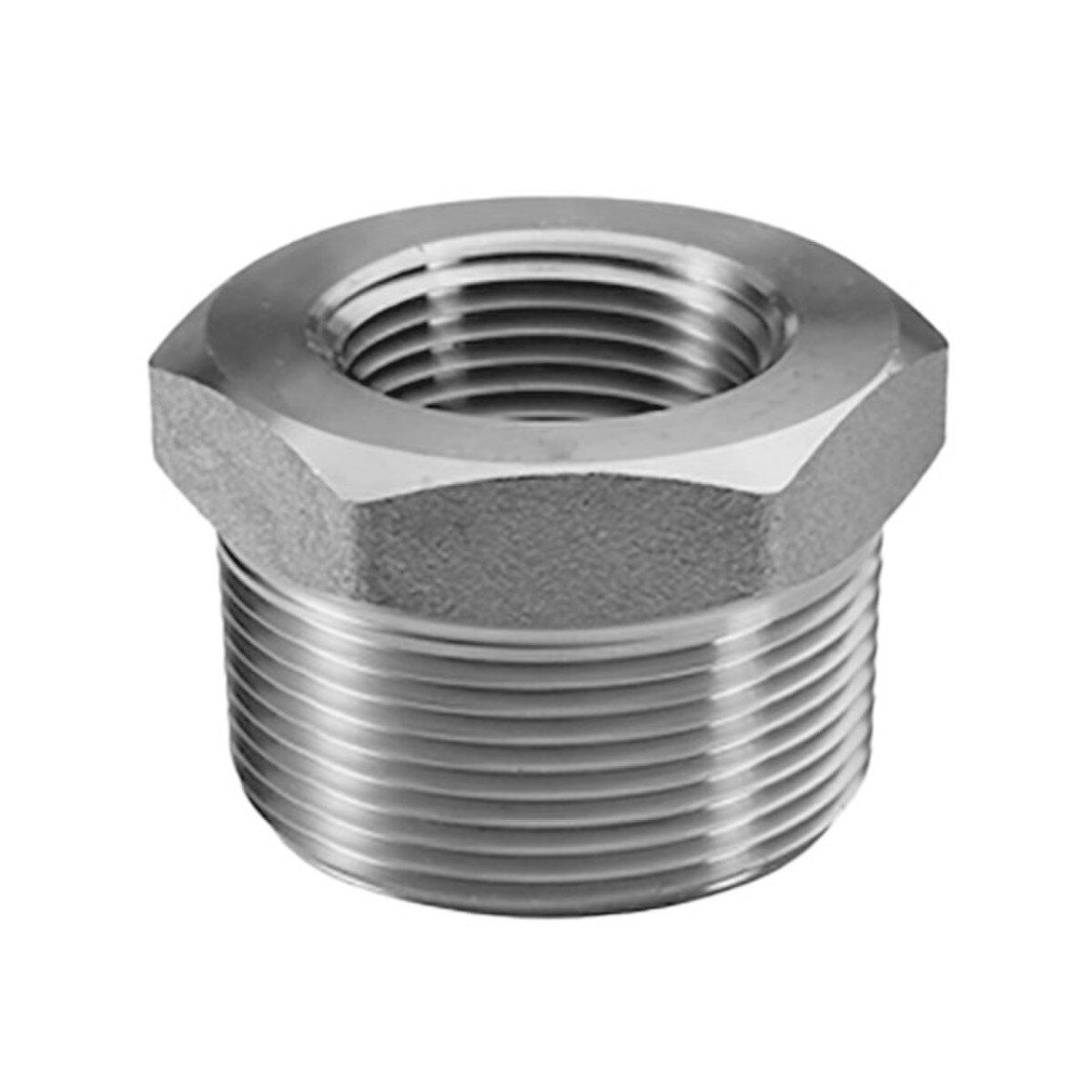

150# Cast NPT Threaded Pipe Hex Bushings - Stainless Steel
150# investment cast pipe hex bushings with threaded end connections available in 304 and 316 stainless steel. Manufactured to A182 specification.
 | ||||||||||
| Part # | Size (NPT) | A | L | D1 | D2 | D4 | h | h1 | h2 | Material |
|---|---|---|---|---|---|---|---|---|---|---|
| 150THHBUSH4S-025-013 | 1/4" x 1/8" | 0.67" (17.0mm) | 0.59" (15.0mm) | 0.25" (6.4mm) | 0.33" (8.4mm) | 0.125" (3.2mm) | 0.89" (22.6mm) | 0.67" (17.0mm) | 0.22" (5.6mm) | 304 SS |
| 150THHBUSH4S-038-013 | 3/8" x 1/8" | 0.87" (22.1mm) | 0.59" (15.0mm) | 0.375" (9.5mm) | 0.43" (10.9mm) | 0.125" (3.2mm) | 0.91" (23.1mm) | 0.67" (17.0mm) | 0.24" (6.1mm) | 304 SS |
| 150THHBUSH4S-038-025 | 3/8" x 1/4" | 0.87" (22.1mm) | - | 0.375" (9.5mm) | 0.43" (10.9mm) | 0.25" (6.4mm) | 0.91" (23.1mm) | 0.67" (17.0mm) | 0.24" (6.1mm) | 304 SS |
| 150THHBUSH4S-050-013 | 1/2" x 1/8" | 1.02" (25.9mm) | 0.67" (17.0mm) | 0.5" (12.7mm) | 0.57" (14.5mm) | 0.125" (3.2mm) | 1" (25.4mm) | 0.79" (20.1mm) | 0.22" (5.6mm) | 304 SS |
| 150THHBUSH4S-050-025 | 1/2" x 1/4" | 1.02" (25.9mm) | 0.67" (17.0mm) | 0.5" (12.7mm) | 0.57" (14.5mm) | 0.25" (6.4mm) | 1" (25.4mm) | 0.79" (20.1mm) | 0.22" (5.6mm) | 304 SS |
| 150THHBUSH4S-050-038 | 1/2" x 3/8" | 1.02" (25.9mm) | - | 0.5" (12.7mm) | 0.57" (14.5mm) | 0.375" (9.5mm) | 1" (25.4mm) | 0.79" (20.1mm) | 0.22" (5.6mm) | 304 SS |
| 150THHBUSH4S-075-013 | 3/4" x 1/8" | 1.26" (32.0mm) | 0.69" (17.5mm) | 0.75" (19.1mm) | 0.71" (18.0mm) | 0.125" (3.2mm) | 1.04" (26.4mm) | 0.79" (20.1mm) | 0.26" (6.6mm) | 304 SS |
| 150THHBUSH4S-075-025 | 3/4" x 1/4" | 1.26" (32.0mm) | 0.69" (17.5mm) | 0.75" (19.1mm) | 0.71" (18.0mm) | 0.25" (6.4mm) | 1.04" (26.4mm) | 0.79" (20.1mm) | 0.26" (6.6mm) | 304 SS |
| 150THHBUSH4S-075-038 | 3/4" x 3/8" | 1.26" (32.0mm) | 0.69" (17.5mm) | 0.75" (19.1mm) | 0.71" (18.0mm) | 0.375" (9.5mm) | 1.04" (26.4mm) | 0.79" (20.1mm) | 0.26" (6.6mm) | 304 SS |
| 150THHBUSH4S-075-050 | 3/4" x 1/2" | 1.26" (32.0mm) | - | 0.75" (19.1mm) | 0.71" (18.0mm) | 0.5" (12.7mm) | 1.04" (26.4mm) | 0.79" (20.1mm) | 0.26" (6.6mm) | 304 SS |
| 150THHBUSH4S-100-013 | 1" x 1/8" | 1.50" (38.1mm) | 0.96" (24.4mm) | 1" (25.4mm) | 1.02" (25.9mm) | 0.125" (3.2mm) | 1.32" (33.5mm) | 1" (25.4mm) | 0.31" (7.9mm) | 304 SS |
| 150THHBUSH4S-100-025 | 1" x 1/4" | 1.50" (38.1mm) | 0.96" (24.4mm) | 1" (25.4mm) | 1.02" (25.9mm) | 0.25" (6.4mm) | 1.32" (33.5mm) | 1" (25.4mm) | 0.31" (7.9mm) | 304 SS |
| 150THHBUSH4S-100-038 | 1" x 3/8" | 1.50" (38.1mm) | 0.96" (24.4mm) | 1" (25.4mm) | 1.02" (25.9mm) | 0.375" (9.5mm) | 1.32" (33.5mm) | 1" (25.4mm) | 0.31" (7.9mm) | 304 SS |
| 150THHBUSH4S-100-050 | 1" x 1/2" | 1.50" (38.1mm) | 0.87" (22.1mm) | 1" (25.4mm) | 1.02" (25.9mm) | 0.5" (12.7mm) | 1.32" (33.5mm) | 1" (25.4mm) | 0.31" (7.9mm) | 304 SS |
| 150THHBUSH4S-100-075 | 1" x 3/4" | 1.50" (38.1mm) | 0.81" (20.6mm) | 1" (25.4mm) | 1.02" (25.9mm) | 0.75" (19.1mm) | 1.32" (33.5mm) | 1" (25.4mm) | 0.31" (7.9mm) | 304 SS |
| 150THHBUSH4S-125-013 | 1-1/4" x 1/8" | 1.81" (46.0mm) | 1.02" (25.9mm) | 1.25" (31.8mm) | 1.38" (35.1mm) | 0.125" (3.2mm) | 1.34" (34.0mm) | 1.02" (25.9mm) | 0.31" (7.9mm) | 304 SS |
| 150THHBUSH4S-125-025 | 1-1/4" x 1/4" | 1.81" (46.0mm) | 0.96" (24.4mm) | 1.25" (31.8mm) | 1.38" (35.1mm) | 0.25" (6.4mm) | 1.34" (34.0mm) | 1.02" (25.9mm) | 0.31" (7.9mm) | 304 SS |
| 150THHBUSH4S-125-038 | 1-1/4" x 3/8" | 1.81" (46.0mm) | 0.96" (24.4mm) | 1.25" (31.8mm) | 1.38" (35.1mm) | 0.375" (9.5mm) | 1.34" (34.0mm) | 1.02" (25.9mm) | 0.31" (7.9mm) | 304 SS |
| 150THHBUSH4S-125-050 | 1-1/4" x 1/2" | 1.81" (46.0mm) | 0.91" (23.1mm) | 1.25" (31.8mm) | 1.38" (35.1mm) | 0.5" (12.7mm) | 1.34" (34.0mm) | 1.02" (25.9mm) | 0.31" (7.9mm) | 304 SS |
| 150THHBUSH4S-125-075 | 1-1/4" x 3/4" | 1.81" (46.0mm) | 0.83" (21.1mm) | 1.25" (31.8mm) | 1.38" (35.1mm) | 0.75" (19.1mm) | 1.34" (34.0mm) | 1.02" (25.9mm) | 0.31" (7.9mm) | 304 SS |
| 150THHBUSH4S-125-100 | 1-1/4" x 1" | 1.81" (46.0mm) | 0.77" (19.6mm) | 1.25" (31.8mm) | 1.38" (35.1mm) | 1" (25.4mm) | 1.34" (34.0mm) | 1.02" (25.9mm) | 0.31" (7.9mm) | 304 SS |
| 150THHBUSH4S-150-013 | 1-1/2" x 1/8" | 2.05" (52.1mm) | 1.06" (26.9mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 0.125" (3.2mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 304 SS |
| 150THHBUSH4S-150-025 | 1-1/2" x 1/4" | 2.05" (52.1mm) | 1.06" (26.9mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 0.25" (6.4mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 304 SS |
| 150THHBUSH4S-150-038 | 1-1/2" x 3/8" | 2.05" (52.1mm) | 1.02" (25.9mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 0.375" (9.5mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 304 SS |
| 150THHBUSH4S-150-050 | 1-1/2" x 1/2" | 2.05" (52.1mm) | 0.94" (23.9mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 0.5" (12.7mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 304 SS |
| 150THHBUSH4S-150-075 | 1-1/2" x 3/4" | 2.05" (52.1mm) | 0.91" (23.1mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 0.75" (19.1mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 304 SS |
| 150THHBUSH4S-150-100 | 1-1/2" x 1" | 2.05" (52.1mm) | 0.83" (21.1mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 1" (25.4mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 304 SS |
| 150THHBUSH4S-150-125 | 1-1/2" x 1-1/4" | 2.05" (52.1mm) | 0.73" (18.5mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 1.25" (31.8mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 304 SS |
| 150THHBUSH4S-200-025 | 2" x 1/4" | 2.48" (63.0mm) | 1.06" (26.9mm) | 2" (50.8mm) | 2.01" (51.1mm) | 0.25" (6.4mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 304 SS |
| 150THHBUSH4S-200-038 | 2" x 3/8" | 2.48" (63.0mm) | 1.06" (26.9mm) | 2" (50.8mm) | 2.01" (51.1mm) | 0.375" (9.5mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 304 SS |
| 150THHBUSH4S-200-050 | 2" x 1/2" | 2.48" (63.0mm) | 0.98" (24.9mm) | 2" (50.8mm) | 2.01" (51.1mm) | 0.5" (12.7mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 304 SS |
| 150THHBUSH4S-200-075 | 2" x 3/4" | 2.48" (63.0mm) | 0.91" (23.1mm) | 2" (50.8mm) | 2.01" (51.1mm) | 0.75" (19.1mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 304 SS |
| 150THHBUSH4S-200-100 | 2" x 1" | 2.48" (63.0mm) | 0.87" (22.1mm) | 2" (50.8mm) | 2.01" (51.1mm) | 1" (25.4mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 304 SS |
| 150THHBUSH4S-200-125 | 2" x 1-1/4" | 2.48" (63.0mm) | 0.79" (20.1mm) | 2" (50.8mm) | 2.01" (51.1mm) | 1.25" (31.8mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 304 SS |
| 150THHBUSH4S-200-150 | 2" x 1-1/2" | 2.48" (63.0mm) | 0.79" (20.1mm) | 2" (50.8mm) | 2.01" (51.1mm) | 1.5" (38.1mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 304 SS |
| 150THHBUSH4S-250-050 | 2-1/2" x 1/2" | 3.15" (80.0mm) | 1.52" (38.6mm) | 2.5" (63.5mm) | 2.48" (63.0mm) | 0.5" (12.7mm) | 1.93" (49.0mm) | 1.46" (37.1mm) | 0.47" (11.9mm) | 304 SS |
| 150THHBUSH4S-250-075 | 2-1/2" x 3/4" | 3.15" (80.0mm) | 1.44" (36.6mm) | 2.5" (63.5mm) | 2.48" (63.0mm) | 0.75" (19.1mm) | 1.93" (49.0mm) | 1.46" (37.1mm) | 0.47" (11.9mm) | 304 SS |
| 150THHBUSH4S-250-100 | 2-1/2" x 1" | 3.15" (80.0mm) | 1.36" (34.5mm) | 2.5" (63.5mm) | 2.48" (63.0mm) | 1" (25.4mm) | 1.93" (49.0mm) | 1.46" (37.1mm) | 0.47" (11.9mm) | 304 SS |
| 150THHBUSH4S-250-125 | 2-1/2" x 1-1/4" | 3.15" (80.0mm) | 1.24" (31.5mm) | 2.5" (63.5mm) | 2.48" (63.0mm) | 1.25" (31.8mm) | 1.93" (49.0mm) | 1.46" (37.1mm) | 0.47" (11.9mm) | 304 SS |
| 150THHBUSH4S-250-150 | 2-1/2" x 1-1/2" | 3.15" (80.0mm) | 1.18" (30.0mm) | 2.5" (63.5mm) | 2.48" (63.0mm) | 1.5" (38.1mm) | 1.93" (49.0mm) | 1.46" (37.1mm) | 0.47" (11.9mm) | 304 SS |
| 150THHBUSH4S-250-200 | 2-1/2" x 2" | 3.15" (80.0mm) | 1.14" (29.0mm) | 2.5" (63.5mm) | 2.48" (63.0mm) | 2" (50.8mm) | 1.93" (49.0mm) | 1.46" (37.1mm) | 0.47" (11.9mm) | 304 SS |
| 150THHBUSH4S-300-050 | 3" x 1/2" | 3.74" (95.0mm) | 1.54" (39.1mm) | 3" (76.2mm) | 3.03" (77.0mm) | 0.5" (12.7mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 304 SS |
| 150THHBUSH4S-300-075 | 3" x 3/4" | 3.74" (95.0mm) | 1.46" (37.1mm) | 3" (76.2mm) | 3.03" (77.0mm) | 0.75" (19.1mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 304 SS |
| 150THHBUSH4S-300-100 | 3" x 1" | 3.74" (95.0mm) | 1.38" (35.1mm) | 3" (76.2mm) | 3.03" (77.0mm) | 1" (25.4mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 304 SS |
| 150THHBUSH4S-300-125 | 3" x 1-1/4" | 3.74" (95.0mm) | 1.26" (32.0mm) | 3" (76.2mm) | 3.03" (77.0mm) | 1.25" (31.8mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 304 SS |
| 150THHBUSH4S-300-150 | 3" x 1-1/2" | 3.74" (95.0mm) | 1.22" (31.0mm) | 3" (76.2mm) | 3.03" (77.0mm) | 1.5" (38.1mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 304 SS |
| 150THHBUSH4S-300-200 | 3" x 2" | 3.74" (95.0mm) | 1.18" (30.0mm) | 3" (76.2mm) | 3.03" (77.0mm) | 2" (50.8mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 304 SS |
| 150THHBUSH4S-300-250 | 3" x 2-1/2" | 3.74" (95.0mm) | 1.02" (25.9mm) | 3" (76.2mm) | 3.03" (77.0mm) | 2.5" (63.5mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 304 SS |
| 150THHBUSH4S-400-100 | 4" x 1" | 4.72" (119.9mm) | 1.42" (36.1mm) | 4" (101.6mm) | 3.98" (101.1mm) | 1" (25.4mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 304 SS |
| 150THHBUSH4S-400-125 | 4" x 1-1/4" | 4.72" (119.9mm) | 1.32" (33.5mm) | 4" (101.6mm) | 3.98" (101.1mm) | 1.25" (31.8mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 304 SS |
| 150THHBUSH4S-400-150 | 4" x 1-1/2" | 4.72" (119.9mm) | 1.26" (32.0mm) | 4" (101.6mm) | 3.98" (101.1mm) | 1.5" (38.1mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 304 SS |
| 150THHBUSH4S-400-200 | 4" x 2" | 4.72" (119.9mm) | 1.22" (31.0mm) | 4" (101.6mm) | 3.98" (101.1mm) | 2" (50.8mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 304 SS |
| 150THHBUSH4S-400-250 | 4" x 2-1/2" | 4.72" (119.9mm) | 1.10" (27.9mm) | 4" (101.6mm) | 3.98" (101.1mm) | 2.5" (63.5mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 304 SS |
| 150THHBUSH4S-400-300 | 4" x 3" | 4.72" (119.9mm) | 1.02" (25.9mm) | 4" (101.6mm) | 3.98" (101.1mm) | 3" (76.2mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 304 SS |
| 150THHBUSH6S-025-013 | 1/4" x 1/8" | 0.67" (17.0mm) | 0.59" (15.0mm) | 0.25" (6.4mm) | 0.33" (8.4mm) | 0.125" (3.2mm) | 0.89" (22.6mm) | 0.67" (17.0mm) | 0.22" (5.6mm) | 316 SS |
| 150THHBUSH6S-038-013 | 3/8" x 1/8" | 0.87" (22.1mm) | 0.59" (15.0mm) | 0.375" (9.5mm) | 0.43" (10.9mm) | 0.125" (3.2mm) | 0.91" (23.1mm) | 0.67" (17.0mm) | 0.24" (6.1mm) | 316 SS |
| 150THHBUSH6S-038-025 | 3/8" x 1/4" | 0.87" (22.1mm) | - | 0.375" (9.5mm) | 0.43" (10.9mm) | 0.25" (6.4mm) | 0.91" (23.1mm) | 0.67" (17.0mm) | 0.24" (6.1mm) | 316 SS |
| 150THHBUSH6S-050-013 | 1/2" x 1/8" | 1.02" (25.9mm) | 0.67" (17.0mm) | 0.5" (12.7mm) | 0.57" (14.5mm) | 0.125" (3.2mm) | 1.00" (25.4mm) | 0.79" (20.1mm) | 0.22" (5.6mm) | 316 SS |
| 150THHBUSH6S-050-025 | 1/2" x 1/4" | 1.02" (25.9mm) | 0.67" (17.0mm) | 0.5" (12.7mm) | 0.57" (14.5mm) | 0.25" (6.4mm) | 1.00" (25.4mm) | 0.79" (20.1mm) | 0.22" (5.6mm) | 316 SS |
| 150THHBUSH6S-050-038 | 1/2" x 3/8" | 1.02" (25.9mm) | - | 0.5" (12.7mm) | 0.57" (14.5mm) | 0.375" (9.5mm) | 1" (25.4mm) | 0.79" (20.1mm) | 0.22" (5.6mm) | 316 SS |
| 150THHBUSH6S-075-013 | 3/4" x 1/8" | 1.26" (32.0mm) | 0.69" (17.5mm) | 0.75" (19.1mm) | 0.71" (18.0mm) | 0.125" (3.2mm) | 1.04" (26.4mm) | 0.79" (20.1mm) | 0.26" (6.6mm) | 316 SS |
| 150THHBUSH6S-075-025 | 3/4" x 1/4" | 1.26" (32.0mm) | 0.69" (17.5mm) | 0.75" (19.1mm) | 0.71" (18.0mm) | 0.25" (6.4mm) | 1.04" (26.4mm) | 0.79" (20.1mm) | 0.26" (6.6mm) | 316 SS |
| 150THHBUSH6S-075-038 | 3/4" x 3/8" | 1.26" (32.0mm) | 0.69" (17.5mm) | 0.75" (19.1mm) | 0.71" (18.0mm) | 0.375" (9.5mm) | 1.04" (26.4mm) | 0.79" (20.1mm) | 0.26" (6.6mm) | 316 SS |
| 150THHBUSH6S-075-050 | 3/4" x 1/2" | 1.26" (32.0mm) | - | 0.75" (19.1mm) | 0.71" (18.0mm) | 0.5" (12.7mm) | 1.04" (26.4mm) | 0.79" (20.1mm) | 0.26" (6.6mm) | 316 SS |
| 150THHBUSH6S-100-013 | 1" x 1/8" | 1.50" (38.1mm) | 0.96" (24.4mm) | 1" (25.4mm) | 1.02" (25.9mm) | 0.125" (3.2mm) | 1.32" (33.5mm) | 1" (25.4mm) | 0.31" (7.9mm) | 316 SS |
| 150THHBUSH6S-100-025 | 1" x 1/4" | 1.50" (38.1mm) | 0.96" (24.4mm) | 1" (25.4mm) | 1.02" (25.9mm) | 0.25" (6.4mm) | 1.32" (33.5mm) | 1" (25.4mm) | 0.31" (7.9mm) | 316 SS |
| 150THHBUSH6S-100-038 | 1" x 3/8" | 1.50" (38.1mm) | 0.96" (24.4mm) | 1" (25.4mm) | 1.02" (25.9mm) | 0.375" (9.5mm) | 1.32" (33.5mm) | 1" (25.4mm) | 0.31" (7.9mm) | 316 SS |
| 150THHBUSH6S-100-050 | 1" x 1/2" | 1.50" (38.1mm) | 0.87" (22.1mm) | 1" (25.4mm) | 1.02" (25.9mm) | 0.5" (12.7mm) | 1.32" (33.5mm) | 1" (25.4mm) | 0.31" (7.9mm) | 316 SS |
| 150THHBUSH6S-100-075 | 1" x 3/4" | 1.50" (38.1mm) | 0.81" (20.6mm) | 1" (25.4mm) | 1.02" (25.9mm) | 0.75" (19.1mm) | 1.32" (33.5mm) | 1" (25.4mm) | 0.31" (7.9mm) | 316 SS |
| 150THHBUSH6S-125-013 | 1-1/4" x 1/8" | 1.81" (46.0mm) | 1.02" (25.9mm) | 1.25" (31.8mm) | 1.38" (35.1mm) | 0.125" (3.2mm) | 1.34" (34.0mm) | 1.02" (25.9mm) | 0.31" (7.9mm) | 316 SS |
| 150THHBUSH6S-125-025 | 1-1/4" x 1/4" | 1.81" (46.0mm) | 0.96" (24.4mm) | 1.25" (31.8mm) | 1.38" (35.1mm) | 0.25" (6.4mm) | 1.34" (34.0mm) | 1.02" (25.9mm) | 0.31" (7.9mm) | 316 SS |
| 150THHBUSH6S-125-038 | 1-1/4" x 3/8" | 1.81" (46.0mm) | 0.96" (24.4mm) | 1.25" (31.8mm) | 1.38" (35.1mm) | 0.375" (9.5mm) | 1.34" (34.0mm) | 1.02" (25.9mm) | 0.31" (7.9mm) | 316 SS |
| 150THHBUSH6S-125-050 | 1-1/4" x 1/2" | 1.81" (46.0mm) | 0.91" (23.1mm) | 1.25" (31.8mm) | 1.38" (35.1mm) | 0.5" (12.7mm) | 1.34" (34.0mm) | 1.02" (25.9mm) | 0.31" (7.9mm) | 316 SS |
| 150THHBUSH6S-125-075 | 1-1/4" x 3/4" | 1.81" (46.0mm) | 0.83" (21.1mm) | 1.25" (31.8mm) | 1.38" (35.1mm) | 0.75" (19.1mm) | 1.34" (34.0mm) | 1.02" (25.9mm) | 0.31" (7.9mm) | 316 SS |
| 150THHBUSH6S-125-100 | 1-1/4" x 1" | 1.81" (46.0mm) | 0.77" (19.6mm) | 1.25" (31.8mm) | 1.38" (35.1mm) | 1" (25.4mm) | 1.34" (34.0mm) | 1.02" (25.9mm) | 0.31" (7.9mm) | 316 SS |
| 150THHBUSH6S-150-013 | 1-1/2" x 1/8" | 2.05" (52.1mm) | 1.06" (26.9mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 0.125" (3.2mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 316 SS |
| 150THHBUSH6S-150-025 | 1-1/2" x 1/4" | 2.05" (52.1mm) | 1.06" (26.9mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 0.25" (6.4mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 316 SS |
| 150THHBUSH6S-150-038 | 1-1/2" x 3/8" | 2.05" (52.1mm) | 1.02" (25.9mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 0.375" (9.5mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 316 SS |
| 150THHBUSH6S-150-050 | 1-1/2" x 1/2" | 2.05" (52.1mm) | 0.94" (23.9mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 0.5" (12.7mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 316 SS |
| 150THHBUSH6S-150-075 | 1-1/2" x 3/4" | 2.05" (52.1mm) | 0.91" (23.1mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 0.75" (19.1mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 316 SS |
| 150THHBUSH6S-150-100 | 1-1/2" x 1" | 2.05" (52.1mm) | 0.83" (21.1mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 1" (25.4mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 316 SS |
| 150THHBUSH6S-150-125 | 1-1/2" x 1-1/4" | 2.05" (52.1mm) | 0.73" (18.5mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 1.25" (31.8mm) | 1.42" (36.1mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 316 SS |
| 150THHBUSH6S-200-025 | 2" x 1/4" | 2.48" (63.0mm) | 1.06" (26.9mm) | 2" (50.8mm) | 2.01" (51.1mm) | 0.25" (6.4mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 316 SS |
| 150THHBUSH6S-200-038 | 2" x 3/8" | 2.48" (63.0mm) | 1.06" (26.9mm) | 2" (50.8mm) | 2.01" (51.1mm) | 0.375" (9.5mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 316 SS |
| 150THHBUSH6S-200-050 | 2" x 1/2" | 2.48" (63.0mm) | 0.98" (24.9mm) | 2" (50.8mm) | 2.01" (51.1mm) | 0.5" (12.7mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 316 SS |
| 150THHBUSH6S-200-075 | 2" x 3/4" | 2.48" (63.0mm) | 0.91" (23.1mm) | 2" (50.8mm) | 2.01" (51.1mm) | 0.75" (19.1mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 316 SS |
| 150THHBUSH6S-200-100 | 2" x 1" | 2.48" (63.0mm) | 0.87" (22.1mm) | 2" (50.8mm) | 2.01" (51.1mm) | 1" (25.4mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 316 SS |
| 150THHBUSH6S-200-125 | 2" x 1-1/4" | 2.48" (63.0mm) | 0.79" (20.1mm) | 2" (50.8mm) | 2.01" (51.1mm) | 1.25" (31.8mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 316 SS |
| 150THHBUSH6S-200-150 | 2" x 1-1/2" | 2.48" (63.0mm) | 0.79" (20.1mm) | 2" (50.8mm) | 2.01" (51.1mm) | 1.5" (38.1mm) | 1.42" (36.1mm) | 1" (25.4mm) | 0.41" (10.4mm) | 316 SS |
| 150THHBUSH6S-250-050 | 2-1/2" x 1/2" | 3.15" (80.0mm) | 1.52" (38.6mm) | 2.5" (63.5mm) | 2.48" (63.0mm) | 0.5" (12.7mm) | 1.93" (49.0mm) | 1.46" (37.1mm) | 0.47" (11.9mm) | 316 SS |
| 150THHBUSH6S-250-075 | 2-1/2" x 3/4" | 3.15" (80.0mm) | 1.44" (36.6mm) | 2.5" (63.5mm) | 2.48" (63.0mm) | 0.75" (19.1mm) | 1.93" (49.0mm) | 1.46" (37.1mm) | 0.47" (11.9mm) | 316 SS |
| 150THHBUSH6S-250-100 | 2-1/2" x 1" | 3.15" (80.0mm) | 1.36" (34.5mm) | 2.5" (63.5mm) | 2.48" (63.0mm) | 1" (25.4mm) | 1.93" (49.0mm) | 1.46" (37.1mm) | 0.47" (11.9mm) | 316 SS |
| 150THHBUSH6S-250-125 | 2-1/2" x 1-1/4" | 3.15" (80.0mm) | 1.24" (31.5mm) | 2.5" (63.5mm) | 2.48" (63.0mm) | 1.25" (31.8mm) | 1.93" (49.0mm) | 1.46" (37.1mm) | 0.47" (11.9mm) | 316 SS |
| 150THHBUSH6S-250-150 | 2-1/2" x 1-1/2" | 3.15" (80.0mm) | 1.18" (30.0mm) | 2.5" (63.5mm) | 2.48" (63.0mm) | 1.5" (38.1mm) | 1.93" (49.0mm) | 1.46" (37.1mm) | 0.47" (11.9mm) | 316 SS |
| 150THHBUSH6S-250-200 | 2-1/2" x 2" | 3.15" (80.0mm) | 1.14" (29.0mm) | 2.5" (63.5mm) | 2.48" (63.0mm) | 2" (50.8mm) | 1.93" (49.0mm) | 1.46" (37.1mm) | 0.47" (11.9mm) | 316 SS |
| 150THHBUSH6S-300-050 | 3" x 1/2" | 3.74" (95.0mm) | 1.54" (39.1mm) | 3" (76.2mm) | 3.03" (77.0mm) | 0.5" (12.7mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 316 SS |
| 150THHBUSH6S-300-075 | 3" x 3/4" | 3.74" (95.0mm) | 1.46" (37.1mm) | 3" (76.2mm) | 3.03" (77.0mm) | 0.75" (19.1mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 316 SS |
| 150THHBUSH6S-300-100 | 3" x 1" | 3.74" (95.0mm) | 1.38" (35.1mm) | 3" (76.2mm) | 3.03" (77.0mm) | 1" (25.4mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 316 SS |
| 150THHBUSH6S-300-125 | 3" x 1-1/4" | 3.74" (95.0mm) | 1.26" (32.0mm) | 3" (76.2mm) | 3.03" (77.0mm) | 1.25" (31.8mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 316 SS |
| 150THHBUSH6S-300-150 | 3" x 1-1/2" | 3.74" (95.0mm) | 1.22" (31.0mm) | 3" (76.2mm) | 3.03" (77.0mm) | 1.5" (38.1mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 316 SS |
| 150THHBUSH6S-300-200 | 3" x 2" | 3.74" (95.0mm) | 1.18" (30.0mm) | 3" (76.2mm) | 3.03" (77.0mm) | 2" (50.8mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 316 SS |
| 150THHBUSH6S-300-250 | 3" x 2-1/2" | 3.74" (95.0mm) | 1.02" (25.9mm) | 3" (76.2mm) | 3.03" (77.0mm) | 2.5" (63.5mm) | 1.97" (50.0mm) | 1.46" (37.1mm) | 0.51" (13.0mm) | 316 SS |
| 150THHBUSH6S-400-100 | 4" x 1" | 4.72" (119.9mm) | 1.42" (36.1mm) | 4" (101.6mm) | 3.98" (101.1mm) | 1" (25.4mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 316 SS |
| 150THHBUSH6S-400-125 | 4" x 1-1/4" | 4.72" (119.9mm) | 1.32" (33.5mm) | 4" (101.6mm) | 3.98" (101.1mm) | 1.25" (31.8mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 316 SS |
| 150THHBUSH6S-400-150 | 4" x 1-1/2" | 4.72" (119.9mm) | 1.26" (32.0mm) | 4" (101.6mm) | 3.98" (101.1mm) | 1.5" (38.1mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 316 SS |
| 150THHBUSH6S-400-200 | 4" x 2" | 4.72" (119.9mm) | 1.22" (31.0mm) | 4" (101.6mm) | 3.98" (101.1mm) | 2" (50.8mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 316 SS |
| 150THHBUSH6S-400-250 | 4" x 2-1/2" | 4.72" (119.9mm) | 1.10" (27.9mm) | 4" (101.6mm) | 3.98" (101.1mm) | 2.5" (63.5mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 316 SS |
| 150THHBUSH6S-400-300 | 4" x 3" | 4.72" (119.9mm) | 1.02" (25.9mm) | 4" (101.6mm) | 3.98" (101.1mm) | 3" (76.2mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 316 SS |
