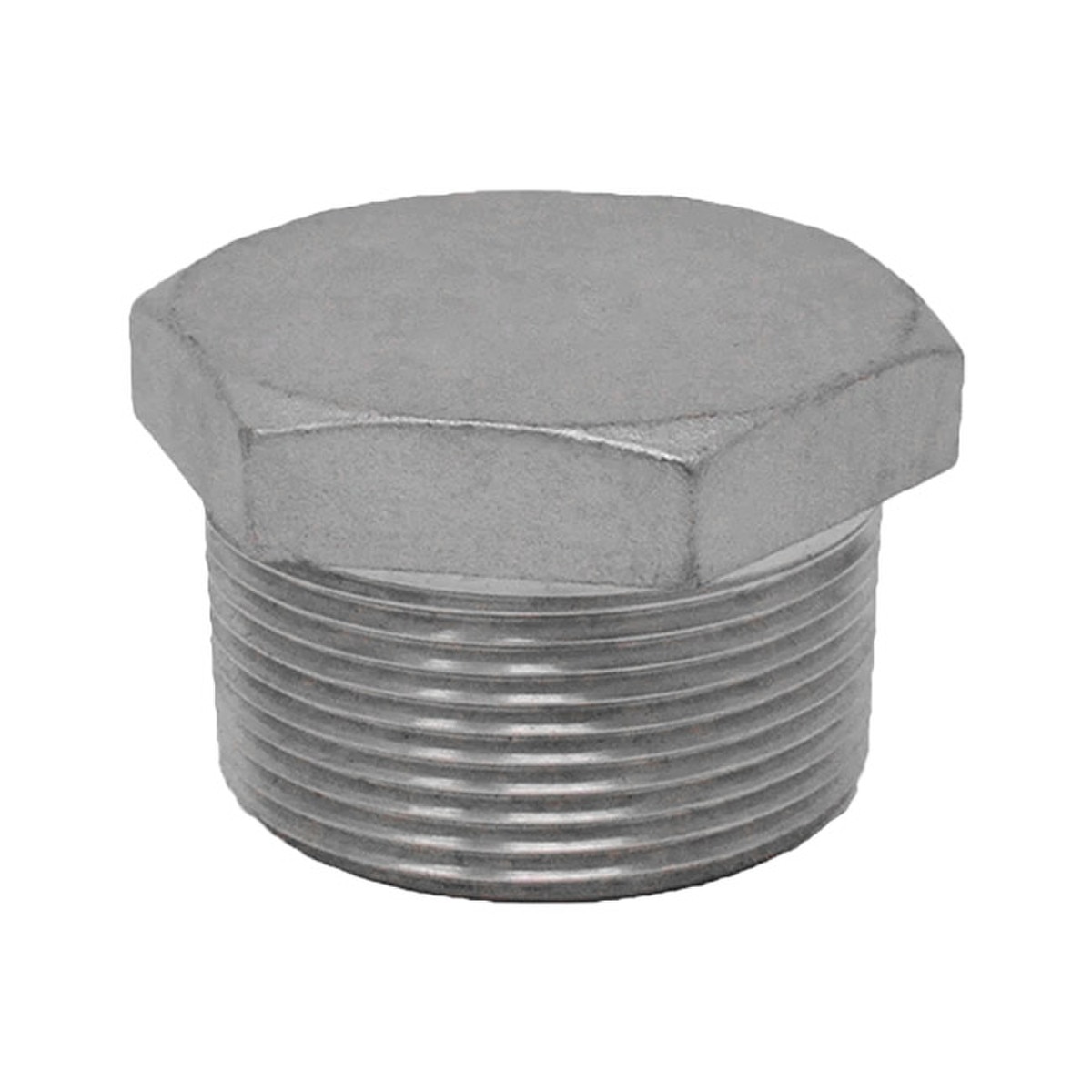

150# Cast NPT Threaded Hex Head Pipe Plugs - Stainless Steel
150# investment cast pipe hex head plugs with threaded end connections available in 304 and 316 stainless steel. Manufactured to A182 specification.
 | |||||||||
| Part # | Size (NPT) | D1 | D2 | L | A | h | h1 | h2 | Material |
|---|---|---|---|---|---|---|---|---|---|
| 150THHP4S-013 | 1/8" | 0.125" (3.2mm) | - | - | 0.55" (14.0mm) | 0.71" (18.0mm) | 0.43" (10.9mm) | 0.24" (6.1mm) | 304 SS |
| 150THHP4S-025 | 1/4" | 0.25" (6.4mm) | - | - | 0.67" (17.0mm) | 0.91" (23.1mm) | 0.67" (17.0mm) | 0.24" (6.1mm) | 304 SS |
| 150THHP4S-038 | 3/8" | 0.375" (9.5mm) | 0.35" (8.9mm) | 0.81" (20.6mm) | 0.83" (21.1mm) | 0.93" (23.6mm) | 0.67" (17.0mm) | 0.26" (6.6mm) | 304 SS |
| 150THHP4S-050 | 1/2" | 0.5" (12.7mm) | 0.57" (14.5mm) | 0.98" (24.9mm) | 1.02" (25.9mm) | 1.10" (27.9mm) | 0.79" (20.1mm) | 0.31" (7.9mm) | 304 SS |
| 150THHP4S-075 | 3/4" | 0.75" (19.1mm) | 0.71" (18mm) | 0.98" (24.9mm) | 1.26" (32.0mm) | 1.10" (27.9mm) | 0.79" (20.1mm) | 0.31" (7.9mm) | 304 SS |
| 150THHP4S-100 | 1" | 1" (25.4mm) | 1.02" (25.9mm) | 1.18" (30.0mm) | 1.50" (38.1mm) | 1.34" (34.0mm) | 0.98" (24.9mm) | 0.35" (8.9mm) | 304 SS |
| 150THHP4S-125 | 1-1/4" | 1.25" (31.8mm) | 1.34" (34.0mm) | 1.22" (31.0mm) | 1.81" (46.0mm) | 1.38" (35.1mm) | 0.98" (24.9mm) | 0.39" (9.9mm) | 304 SS |
| 150THHP4S-150 | 1-1/2" | 1.5" (38.1mm) | 1.52" (38.6mm) | 1.30" (33.0mm) | 2.05" (52.1mm) | 1.42" (36.1mm) | 0.98" (24.9mm) | 0.43" (10.9mm) | 304 SS |
| 150THHP4S-200 | 2" | 2" (50.8mm) | 1.97" (50.0mm) | 1.34" (34.0mm) | 2.56" (65.0mm) | 1.48" (37.6mm) | 1.02" (25.9mm) | 0.45" (11.4mm) | 304 SS |
| 150THHP4S-250 | 2-1/2" | 2.5" (63.5mm) | 2.36" (59.9mm) | 1.38" (35.1mm) | 3.15" (80.0mm) | 1.57" (39.9mm) | 1.10" (27.9mm) | 0.47" (11.9mm) | 304 SS |
| 150THHP4S-300 | 3" | 3" (76.2mm) | 2.95" (74.9mm) | 1.54" (39.1mm) | 3.74" (95.0mm) | 1.77" (45.0mm) | 1.26" (32.0mm) | 0.51" (13.0mm) | 304 SS |
| 150THHP4S-400 | 4" | 4" (101.6mm) | 3.94" (100.1mm) | 1.77" (45.0mm) | 4.72" (119.9mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 304 SS |
| 150THHP6S-013 | 1/8" | 0.125" (3.2mm) | - | - | 0.55" (14.0mm) | 0.71" (18.0mm) | 0.43" (10.9mm) | 0.24" (6.1mm) | 316 SS |
| 150THHP6S-025 | 1/4" | 0.25" (6.4mm) | - | - | 0.67" (17.0mm) | 0.91" (23.1mm) | 0.67" (17.0mm) | 0.24" (6.1mm) | 316 SS |
| 150THHP6S-038 | 3/8" | 0.375" (9.5mm) | 0.35" (8.9mm) | 0.81" (20.6mm) | 0.83" (21.1mm) | 0.93" (23.6mm) | 0.67" (17.0mm) | 0.26" (6.6mm) | 316 SS |
| 150THHP6S-050 | 1/2" | 0.5" (12.7mm) | 0.57" (14.5mm) | 0.98" (24.9mm) | 1.02" (25.9mm) | 1.10" (27.9mm) | 0.79" (20.1mm) | 0.31" (7.9mm) | 316 SS |
| 150THHP6S-075 | 3/4" | 0.75" (19.1mm) | 0.71" (18.0mm) | 0.98" (24.9mm) | 1.26" (32.0mm) | 1.10" (27.9mm) | 0.79" (20.1mm) | 0.31" (7.9mm) | 316 SS |
| 150THHP6S-100 | 1" | 1" (25.4mm) | 1.02" (25.9mm) | 1.18" (30.0mm) | 1.50" (38.1mm) | 1.34" (34.0mm) | 0.98" (24.9mm) | 0.35" (8.9mm) | 316 SS |
| 150THHP6S-125 | 1-1/4" | 1.25" (31.8mm) | 1.34" (34.0mm) | 1.22" (31.0mm) | 1.81" (46.0mm) | 1.38" (35.1mm) | 0.98" (24.9mm) | 0.39" (9.9mm) | 316 SS |
| 150THHP6S-150 | 1-1/2" | 1.5" (38.1mm) | 1.52" (38.6mm) | 1.30" (33.0mm) | 2.05" (52.1mm) | 1.42" (36.1mm) | 0.98" (24.9mm) | 0.43" (10.9mm) | 316 SS |
| 150THHP6S-200 | 2" | 2" (50.8mm) | 1.97" (50.0mm) | 1.34" (34.0mm) | 2.56" (65.0mm) | 1.48" (37.6mm) | 1.02" (25.9mm) | 0.45" (11.4mm) | 316 SS |
| 150THHP6S-250 | 2-1/2" | 2.5" (63.5mm) | 2.36" (59.9mm) | 1.38" (35.1mm) | 3.15" (80.0mm) | 1.57" (39.9mm) | 1.10" (27.9mm) | 0.47" (11.9mm) | 316 SS |
| 150THHP6S-300 | 3" | 3" (76.2mm) | 2.95" (74.9mm) | 1.54" (39.1mm) | 3.74" (95.0mm) | 1.77" (45.0mm) | 1.26" (32.0mm) | 0.51" (13.0mm) | 316 SS |
| 150THHP6S-400 | 4" | 4" (101.6mm) | 3.94" (100.1mm) | 1.77" (45.0mm) | 4.72" (119.9mm) | 2.01" (51.1mm) | 1.46" (37.1mm) | 0.55" (14.0mm) | 316 SS |
