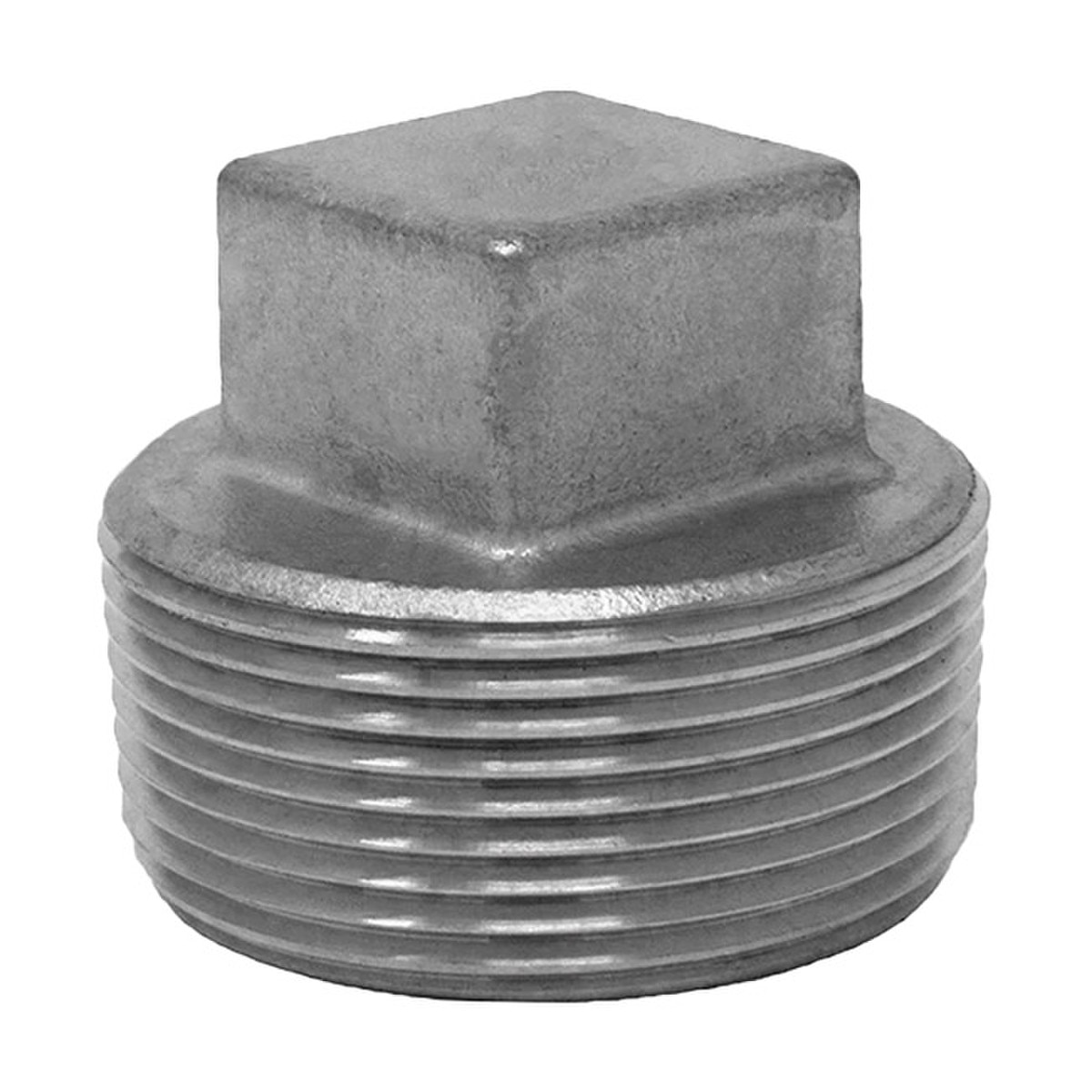

150# Cast NPT Threaded Square Head Pipe Plugs - Stainless Steel
150# investment cast pipe square head plugs with threaded end connections available in 304 and 316 stainless steel. Manufactured to A182 specification.
 | |||||||||||
| Part # | Size (NPT) | b | D1 | D2 | L1 | L2 | h | h1 | h2 | I | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150THSP4S-013 | 1/8" | 0.28" (7.1mm) | 0.125" (3.2mm) | - | - | - | 0.71" (18.0mm) | 0.39" (9.9mm) | 0.31" (7.9mm) | - | 304 SS |
| 150THSP4S-025 | 1/4" | 0.35" (8.9mm) | 0.25" (6.4mm) | - | - | - | 0.75" (19.1mm) | 0.39" (9.9mm) | 0.35" (8.9mm) | - | 304 SS |
| 150THSP4S-038 | 3/8" | 0.39" (9.9mm) | 0.375" (9.5mm) | - | - | - | 0.79" (20.1mm) | 0.43" (10.9mm) | 0.35" (8.9mm) | - | 304 SS |
| 150THSP4S-050 | 1/2" | 0.51" (13.0mm) | 0.5" (12.7mm) | 0.57" (14.5mm) | 0.47" (11.9mm) | 0.83" (21.1mm) | 0.91" (23.1mm) | 0.51" (13.0mm) | 0.39" (9.9mm) | 0.10" (2.5mm) | 304 SS |
| 150THSP4S-075 | 3/4" | 0.71" (18.0mm) | 0.75" (19.1mm) | 0.71" (18.0mm) | 0.57" (14.5mm) | 1.02" (25.9mm) | 1.18" (30.0mm) | 0.71" (18.0mm) | 0.47" (11.9mm) | 0.10" (2.5mm) | 304 SS |
| 150THSP4S-100 | 1" | 0.75" (19.1mm) | 1" (25.4mm) | 0.98" (24.9mm) | 0.71" (18.0mm) | 1.22" (31.0mm) | 1.30" (33.0mm) | 0.83" (21.1mm) | 0.47" (11.9mm) | 0.10" (2.5mm) | 304 SS |
| 150THSP4S-125 | 1-1/4" | 0.91" (23.1mm) | 1.25" (31.8mm) | 1.34" (34.0mm) | 0.75" (19.1mm) | 1.42" (36.1mm) | 1.54" (39.1mm) | 0.91" (23.1mm) | 0.63" (16.0mm) | 0.10" (2.5mm) | 304 SS |
| 150THSP4S-150 | 1-1/2" | 1.02" (25.9mm) | 1.5" (38.1mm) | 1.54" (39.1mm) | 0.83" (21.1mm) | 1.42" (36.1mm) | 1.57" (39.9mm) | 0.91" (23.1mm) | 0.67" (17.0mm) | 0.10" (2.5mm) | 304 SS |
| 150THSP4S-200 | 2" | 1.14" (29.0mm) | 2" (50.8mm) | 1.97" (50.0mm) | 0.91" (23.1mm) | 1.65" (41.9mm) | 1.77" (45.0mm) | 1.02" (25.9mm) | 0.75" (19.1mm) | 0.10" (2.5mm) | 304 SS |
| 150THSP4S-250 | 2-1/2" | 1.57" (39.9mm) | 2.5" (63.5mm) | 2.36" (59.9mm) | 0.94" (23.9mm) | 1.61" (40.9mm) | 1.89" (48.0mm) | 1.10" (27.9mm) | 0.79" (20.1mm) | 0.12" (3.0mm) | 304 SS |
| 150THSP4S-300 | 3" | 1.73" (43.9mm) | 3" (76.2mm) | 2.95" (74.9mm) | 1.06" (26.9mm) | 1.97" (50.0mm) | 2.13" (54.1mm) | 1.26" (32.0mm) | 0.87" (22.1mm) | 0.12" (3.0mm) | 304 SS |
| 150THSP4S-400 | 4" | 2.32" (58.9mm) | 4" (101.6mm) | 3.98" (101.1mm) | 1.22" (31.0mm) | 2.17" (55.1mm) | 2.32" (58.9mm) | 1.46" (37.1mm) | 0.87" (22.1mm) | 0.12" (3.0mm) | 304 SS |
| 150THSP6S-013 | 1/8" | 0.28" (7.1mm) | 0.125" (3.2mm) | - | - | - | 0.71" (18.0mm) | 0.39" (9.9mm) | 0.31" (7.9mm) | - | 316 SS |
| 150THSP6S-025 | 1/4" | 0.35" (8.9mm) | 0.25" (6.4mm) | - | - | - | 0.75" (19.1mm) | 0.39" (9.9mm) | 0.35" (8.9mm) | - | 316 SS |
| 150THSP6S-038 | 3/8" | 0.39" (9.9mm) | 0.375" (9.5mm) | - | - | - | 0.79" (20.1mm) | 0.43" (10.9mm) | 0.35" (8.9mm) | - | 316 SS |
| 150THSP6S-050 | 1/2" | 0.51" (13.0mm) | 0.5" (12.7mm) | 0.57" (14.5mm) | 0.47" (11.9mm) | 0.83" (21.1mm) | 0.91" (23.1mm) | 0.51" (13.0mm) | 0.39" (9.9mm) | 0.10" (2.5mm) | 316 SS |
| 150THSP6S-075 | 3/4" | 0.71" (18.0mm) | 0.75" (19.1mm) | 0.71" (18.0mm) | 0.57" (14.5mm) | 1.02" (25.9mm) | 1.18" (30.0mm) | 0.71" (18.0mm) | 0.47" (11.9mm) | 0.10" (2.5mm) | 316 SS |
| 150THSP6S-100 | 1" | 0.75" (19.1mm) | 1" (25.4mm) | 0.98" (24.9mm) | 0.71" (18.0mm) | 1.22" (31.0mm) | 1.30" (33.0mm) | 0.83" (21.1mm) | 0.47" (11.9mm) | 0.10" (2.5mm) | 316 SS |
| 150THSP6S-125 | 1-1/4" | 0.91" (23.1mm) | 1.25" (31.8mm) | 1.34" (34.0mm) | 0.75" (19.1mm) | 1.42" (36.1mm) | 1.54" (39.1mm) | 0.91" (23.1mm) | 0.63" (16.0mm) | 0.10" (2.5mm) | 316 SS |
| 150THSP6S-150 | 1-1/2" | 1.02" (25.9mm) | 1.5" (38.1mm) | 1.54" (39.1mm) | 0.83" (21.1mm) | 1.42" (36.1mm) | 1.57" (39.9mm) | 0.91" (23.1mm) | 0.67" (17.0mm) | 0.10" (2.5mm) | 316 SS |
| 150THSP6S-200 | 2" | 1.14" (29.0mm) | 2" (50.8mm) | 1.97" (50.0mm) | 0.91" (23.1mm) | 1.65" (41.9mm) | 1.77" (45.0mm) | 1.02" (25.9mm) | 0.75" (19.1mm) | 0.10" (2.5mm) | 316 SS |
| 150THSP6S-250 | 2-1/2" | 1.57" (39.9mm) | 2.5" (63.5mm) | 2.36" (59.9mm) | 0.94" (23.9mm) | 1.61" (40.9mm) | 1.89" (48.0mm) | 1.10" (27.9mm) | 0.79" (20.1mm) | 0.12" (3.0mm) | 316 SS |
| 150THSP6S-300 | 3" | 1.73" (43.9mm) | 3" (76.2mm) | 2.95" (74.9mm) | 1.06" (26.9mm) | 1.97" (50.0mm) | 2.13" (54.1mm) | 1.26" (32.0mm) | 0.87" (22.1mm) | 0.12" (3.0mm) | 316 SS |
| 150THSP6S-400 | 4" | 2.32" (58.9mm) | 4" (101.6mm) | 3.98" (101.1mm) | 1.22" (31.0mm) | 2.17" (55.1mm) | 2.32" (58.9mm) | 1.46" (37.1mm) | 0.87" (22.1mm) | 0.12" (3.0mm) | 316 SS |
