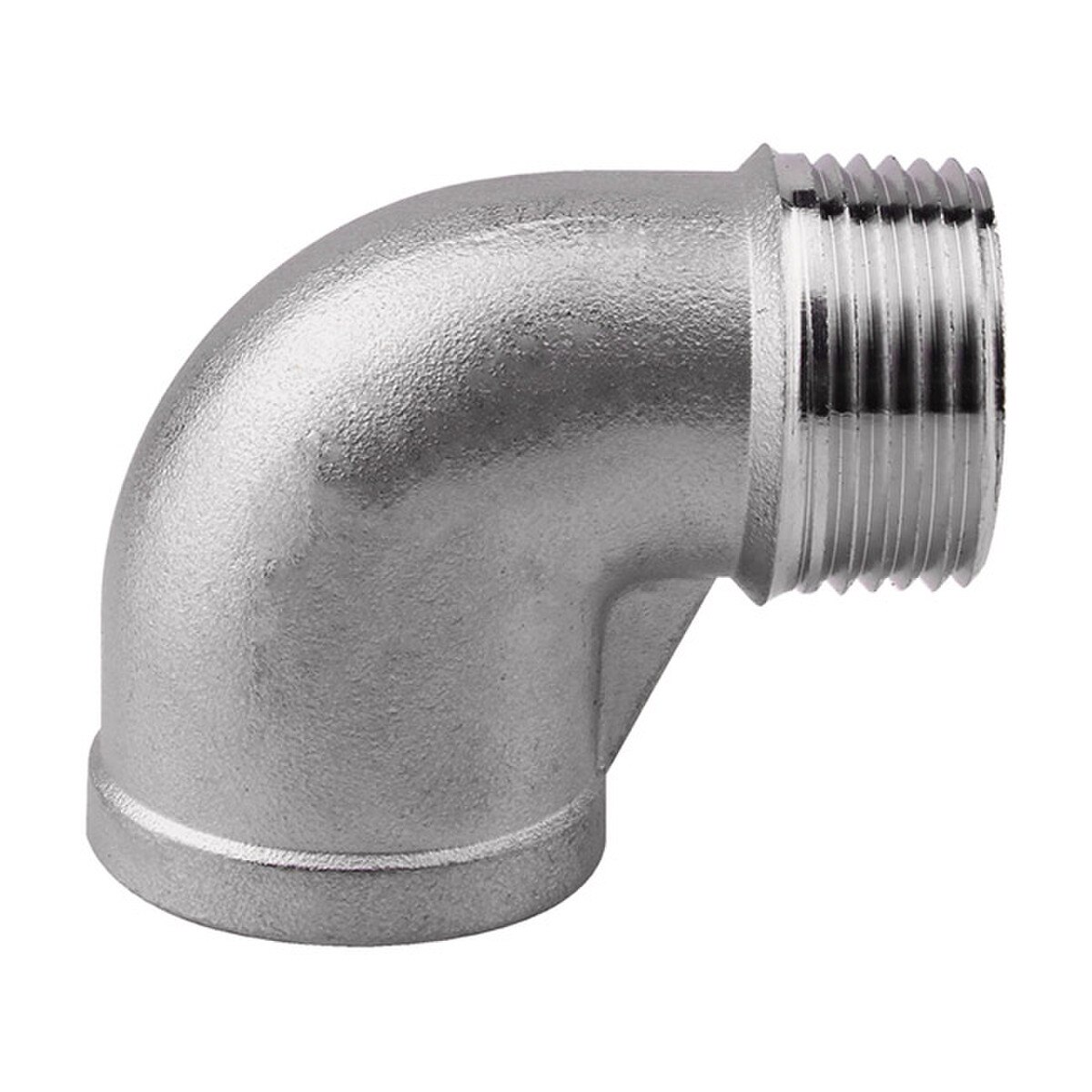

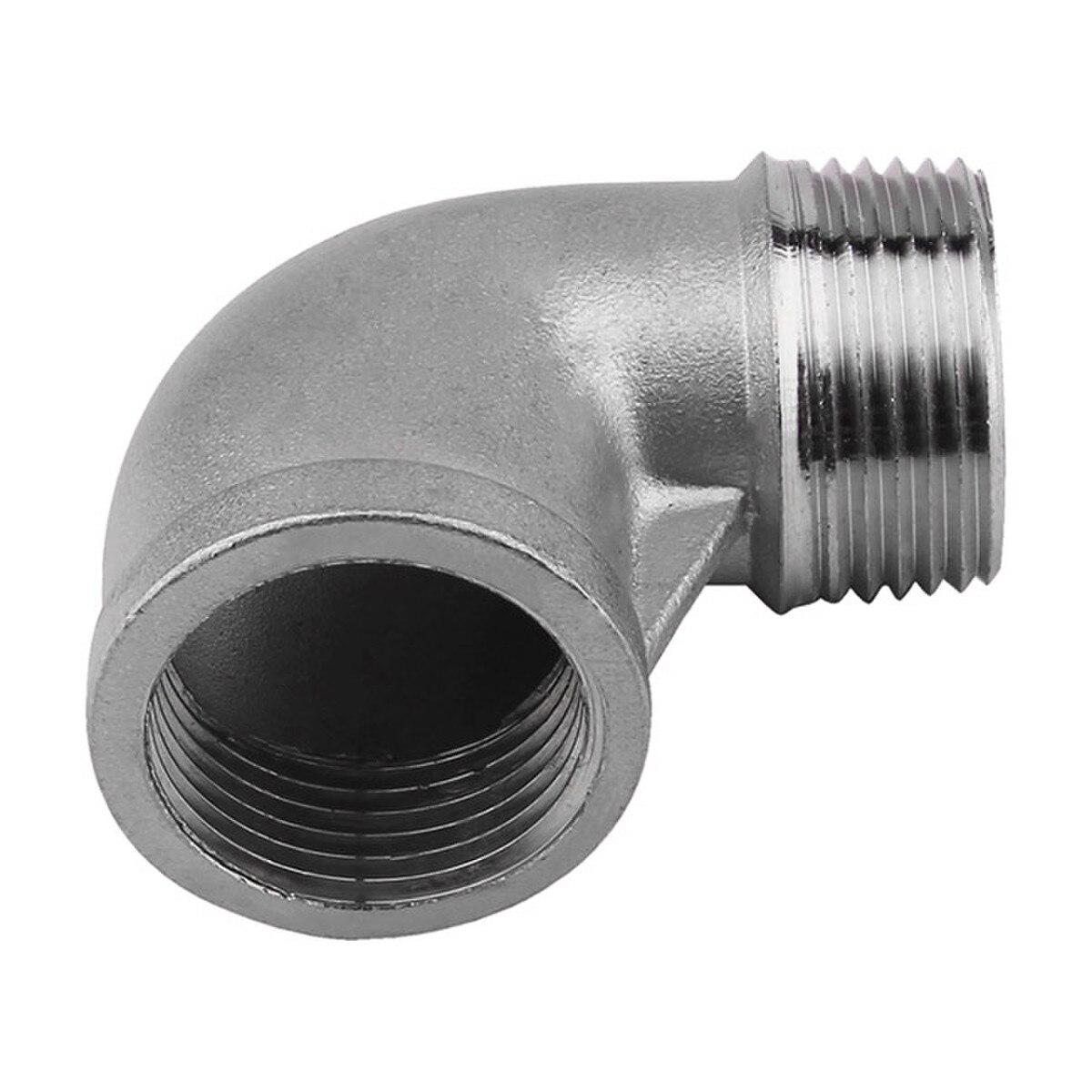

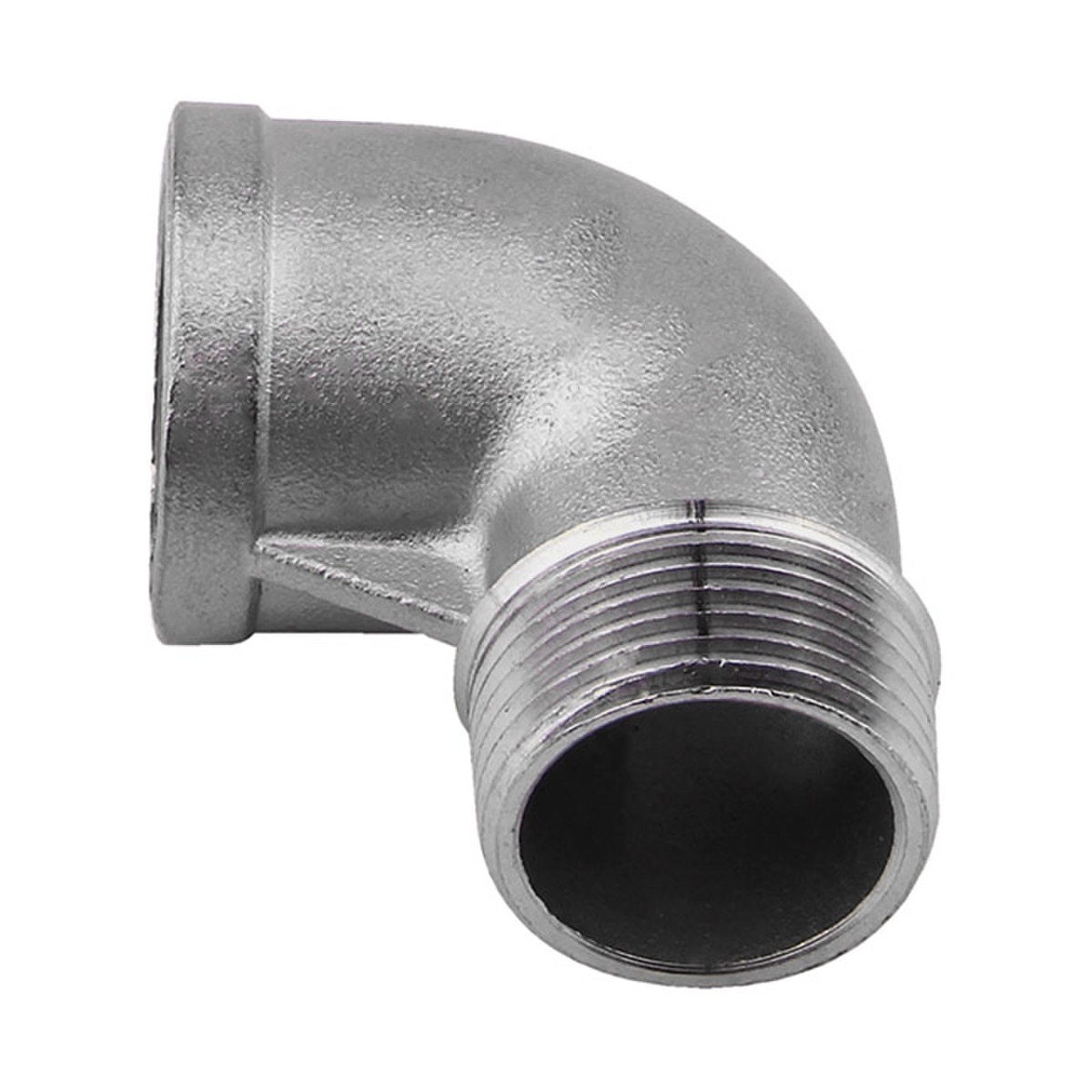

150# Cast NPT Threaded 90° Pipe Street Elbows - Stainless Steel
150# investment cast 90 degree pipe elbows with threaded end connections available in 304 and 316 stainless steel. Manufactured to A182 specification.
 | ||||||||||||||
| Part # | Size (NPT) | d1 | d2 | d3 | C | E | H | D1 | D2 | D3 | C1 | E1 | I | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150THSTEL4S-013 | 1/8" | 0.125" (3.2mm) | 0.59" (15.0mm) | 0.47" (11.9mm) | 0.28" (7.1mm) | 0.71" (18.0mm) | 0.20" (5.1mm) | 0.125" (3.2mm) | 0.20" (5.1mm) | 0.35" (8.9mm) | 0.31" (7.9mm) | 1.02" (25.9mm) | 0.08" (2.0mm) | 304 SS |
| 150THSTEL4S-025 | 1/4" | 0.25" (6.4mm) | 0.71" (18.0mm) | 0.59" (15.0mm) | 0.41" (10.4mm) | 0.87" (22.1mm) | 0.20" (5.1mm) | 0.25" (6.4mm) | 0.24" (6.1mm) | 0.47" (11.9mm) | 0.43" (10.9mm) | 1.22" (31.0mm) | 0.08" (2.0mm) | 304 SS |
| 150THSTEL4S-038 | 3/8" | 0.375" (9.5mm) | 0.89" (22.6mm) | 0.79" (20.1mm) | 0.41" (10.4mm) | 0.87" (22.1mm) | 0.24" (6.1mm) | 0.375" (9.5mm) | 0.35" (8.9mm) | 0.55" (14.0mm) | 0.43" (10.9mm) | 1.54" (39.1mm) | 0.08" (2.0mm) | 304 SS |
| 150THSTEL4S-050 | 1/2" | 0.5" (12.7mm) | 1.10" (27.9mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 1.06" (26.9mm) | 0.31" (7.9mm) | 0.5" (12.7mm) | 0.55" (14.0mm) | 0.75" (19.1mm) | 0.51" (13.0mm) | 1.61" (40.9mm) | 0.08" (2.0mm) | 304 SS |
| 150THSTEL4S-075 | 3/4" | 0.75" (19.1mm) | 1.42" (36.1mm) | 1.30" (33.0mm) | 0.47" (11.9mm) | 1.30" (33.0mm) | 0.35" (8.9mm) | 0.75" (19.1mm) | 0.79" (20.1mm) | 0.98" (24.9mm) | 0.51" (13.0mm) | 1.85" (47.0mm) | 0.08" (2.0mm) | 304 SS |
| 150THSTEL4S-100 | 1" | 1" (25.4mm) | 1.77" (45.0mm) | 1.65" (41.9mm) | 0.55" (14.0mm) | 1.46" (37.1mm) | 0.35" (8.9mm) | 1" (25.4mm) | 0.98" (24.9mm) | 1.22" (31.0mm) | 0.73" (18.5mm) | 2.09" (53.1mm) | 0.08" (2.0mm) | 304 SS |
| 150THSTEL4S-125 | 1-1/4" | 1.25" (31.8mm) | 2.05" (52.1mm) | 1.97" (50.0mm) | 0.67" (17.0mm) | 1.73" (43.9mm) | 0.43" (10.9mm) | 1.25" (31.8mm) | 1.30" (33.0mm) | 1.56" (39.6mm) | 0.75" (19.1mm) | 2.48" (63.0mm) | 0.10" (2.5mm) | 304 SS |
| 150THSTEL4S-150 | 1-1/2" | 1.5" (38.1mm) | 2.36" (59.9mm) | 2.24" (56.9mm) | 0.67" (17.0mm) | 1.85" (47.0mm) | 0.43" (10.9mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 1.83" (46.5mm) | 0.75" (19.1mm) | 2.72" (69.1mm) | 0.10" (2.5mm) | 304 SS |
| 150THSTEL4S-200 | 2" | 2" (50.8mm) | 2.87" (72.9mm) | 2.72" (69.1mm) | 0.71" (18.0mm) | 2.32" (58.9mm) | 0.51" (13.0mm) | 2" (50.8mm) | 1.97" (50.0mm) | 2.24" (56.9mm) | 0.85" (21.6mm) | 3.15" (80.0mm) | 0.10" (2.5mm) | 304 SS |
| 150THSTEL4S-250 | 2-1/2" | 2.5" (63.5mm) | 3.54" (89.9mm) | 3.39" (86.1mm) | 0.91" (23.1mm) | 2.60" (66.0mm) | 0.59" (15.0mm) | 2.5" (63.5mm) | 2.24" (56.9mm) | 2.60" (66.0mm) | 0.94" (23.9mm) | 4.13" (104.9mm) | 0.16" (4.1mm) | 304 SS |
| 150THSTEL4S-300 | 3" | 3" (76.2mm) | 4.17" (105.9mm) | 3.98" (101.1mm) | 0.94" (23.9mm) | 3.09" (78.5mm) | 0.65" (16.5mm) | 3" (76.2mm) | 2.91" (73.9mm) | 3.19" (81.0mm) | 1.14" (29.0mm) | 4.45" (113.0mm) | 0.16" (4.1mm) | 304 SS |
| 150THSTEL4S-400 | 4" | 4" (101.6mm) | 5.14" (130.6mm) | 5.04" (128.0mm) | 1.02" (25.9mm) | 3.86" (98.0mm) | 0.77" (19.6mm) | 4" (101.6mm) | 3.82" (97.0mm) | 4.17" (105.9mm) | 1.34" (34.0mm) | 5.12" (130.0mm) | 0.16" (4.1mm) | 304 SS |
| 150THSTEL6S-013 | 1/8" | 0.125" (3.2mm) | 0.59" (15.0mm) | 0.47" (11.9mm) | 0.28" (7.1mm) | 0.71" (18.0mm) | 0.20" (5.1mm) | 0.125" (3.2mm) | 0.20" (5.1mm) | 0.35" (8.9mm) | 0.31" (7.9mm) | 1.02" (25.9mm) | 0.08" (2.0mm) | 316 SS |
| 150THSTEL6S-025 | 1/4" | 0.25" (6.4mm) | 0.71" (18.0mm) | 0.59" (15.0mm) | 0.41" (10.4mm) | 0.87" (22.1mm) | 0.20" (5.1mm) | 0.25" (6.4mm) | 0.24" (6.1mm) | 0.47" (11.9mm) | 0.43" (10.9mm) | 1.22" (31.0mm) | 0.08" (2.0mm) | 316 SS |
| 150THSTEL6S-038 | 3/8" | 0.375" (9.5mm) | 0.89" (22.6mm) | 0.79" (20.1mm) | 0.41" (10.4mm) | 0.87" (22.1mm) | 0.24" (6.1mm) | 0.375" (9.5mm) | 0.35" (8.9mm) | 0.55" (14.0mm) | 0.43" (10.9mm) | 1.54" (39.1mm) | 0.08" (2.0mm) | 316 SS |
| 150THSTEL6S-050 | 1/2" | 0.5" (12.7mm) | 1.10" (27.9mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 1.06" (26.9mm) | 0.31" (7.9mm) | 0.5" (12.7mm) | 0.55" (14.0mm) | 0.75" (19.1mm) | 0.51" (13.0mm) | 1.61" (40.9mm) | 0.08" (2.0mm) | 316 SS |
| 150THSTEL6S-075 | 3/4" | 0.75" (19.1mm) | 1.42" (36.1mm) | 1.30" (33.0mm) | 0.47" (11.9mm) | 1.30" (33.0mm) | 0.35" (8.9mm) | 0.75" (19.1mm) | 0.79" (20.1mm) | 0.98" (24.9mm) | 0.51" (13.0mm) | 1.85" (47.0mm) | 0.08" (2.0mm) | 316 SS |
| 150THSTEL6S-100 | 1" | 1" (25.4mm) | 1.77" (45.0mm) | 1.65" (41.9mm) | 0.55" (14.0mm) | 1.46" (37.1mm) | 0.35" (8.9mm) | 1" (25.4mm) | 0.98" (24.9mm) | 1.22" (31.0mm) | 0.73" (18.5mm) | 2.09" (53.1mm) | 0.08" (2.0mm) | 316 SS |
| 150THSTEL6S-125 | 1-1/4" | 1.25" (31.8mm) | 2.05" (52.1mm) | 1.97" (50.0mm) | 0.67" (17.0mm) | 1.73" (43.9mm) | 0.43" (10.9mm) | 1.25" (31.8mm) | 1.30" (33.0mm) | 1.56" (39.6mm) | 0.75" (19.1mm) | 2.48" (63.0mm) | 0.10" (2.5mm) | 316 SS |
| 150THSTEL6S-150 | 1-1/2" | 1.5" (38.1mm) | 2.36" (59.9mm) | 2.24" (56.9mm) | 0.67" (17.0mm) | 1.85" (47.0mm) | 0.43" (10.9mm) | 1.5" (38.1mm) | 1.57" (39.9mm) | 1.83" (46.5mm) | 0.75" (19.1mm) | 2.72" (69.1mm) | 0.10" (2.5mm) | 316 SS |
| 150THSTEL6S-200 | 2" | 2" (50.8mm) | 2.87" (72.9mm) | 2.72" (69.1mm) | 0.71" (18.0mm) | 2.32" (58.9mm) | 0.51" (13.0mm) | 2" (50.8mm) | 1.97" (50.0mm) | 2.24" (56.9mm) | 0.85" (21.6mm) | 3.15" (80.0mm) | 0.10" (2.5mm) | 316 SS |
| 150THSTEL6S-250 | 2-1/2" | 2.5" (63.5mm) | 3.54" (89.9mm) | 3.39" (86.1mm) | 0.91" (23.1mm) | 2.6" (66.0mm) | 0.59" (15.0mm) | 2.5" (63.5mm) | 2.24" (56.9mm) | 2.60" (66.0mm) | 0.94" (23.9mm) | 4.13" (104.9mm) | 0.16" (4.1mm) | 316 SS |
| 150THSTEL6S-300 | 3" | 3" (76.2mm) | 4.17" (105.9mm) | 3.98" (101.1mm) | 0.94" (23.9mm) | 3.09" (78.5mm) | 0.65" (16.5mm) | 3" (76.2mm) | 2.91" (73.9mm) | 3.19" (81.0mm) | 1.14" (29.0mm) | 4.45" (113.0mm) | 0.16" (4.1mm) | 316 SS |
| 150THSTEL6S-400 | 4" | 4" (101.6mm) | 5.14" (130.6mm) | 5.04" (128.0mm) | 1.02" (25.9mm) | 3.86" (98.0mm) | 0.77" (19.6mm) | 4" (101.6mm) | 3.82" (97.0mm) | 4.17" (105.9mm) | 1.34" (34.0mm) | 5.12" (130.0mm) | 0.16" (4.1mm) | 316 SS |
