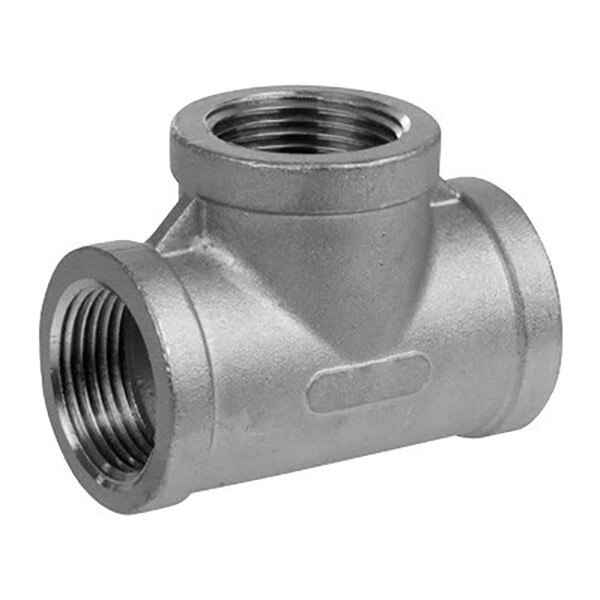

150# Cast NPT Threaded Straight Pipe Tees - Stainless Steel
150# investment cast pipe tees with threaded end connections available in 304 and 316 stainless steel. Manufactured to A182 specification.
 | |||||||||||
| Part # | Size (Nom. Pipe) | d1 | d2 | d3 | C | D | E | G | H | I | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150THTEE4S-013 | 1/8" | 0.125" (3.2mm) | 0.63" (16.0mm) | 0.53" (13.5mm) | 0.24" (6.1mm) | 1.42" (36.1mm) | 0.71" (18.0mm) | 0.12" (3.0mm) | 0.24" (6.1mm) | 0.10" (2.5mm) | 304 SS |
| 150THTEE4S-025 | 1/4" | 0.25" (6.4mm) | 0.75" (19.1mm) | 0.61" (15.5mm) | 0.37" (9.4mm) | 1.04" (26.4mm) | 0.77" (19.6mm) | 0.12" (3.0mm) | 0.24" (6.1mm) | 0.08" (2.0mm) | 304 SS |
| 150THTEE4S-038 | 3/8" | 0.375" (9.5mm) | 0.89" (22.6mm) | 0.77" (19.6mm) | 0.38" (9.7mm) | 1.85" (47.0mm) | 0.93" (23.6mm) | 0.12" (3.0mm) | 0.26" (6.6mm) | 0.10" (2.5mm) | 304 SS |
| 150THTEE4S-050 | 1/2" | 0.5" (12.7mm) | 1.10" (27.9mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 2.28" (57.9mm) | 1.14" (29.0mm) | 0.12" (3.0mm) | 0.30" (7.6mm) | 0.08" (2.0mm) | 304 SS |
| 150THTEE4S-075 | 3/4" | 0.75" (19.1mm) | 1.34" (34.0mm) | 1.24" (31.5mm) | 0.39" (9.9mm) | 2.56" (65.0mm) | 1.28" (32.5mm) | 0.12" (3.0mm) | 0.33" (8.4mm) | 0.08" (2.0mm) | 304 SS |
| 150THTEE4S-100 | 1" | 1" (25.4mm) | 1.69" (42.9mm) | 1.57" (39.9mm) | 0.51" (13.0mm) | 2.91" (73.9mm) | 1.46" (37.1mm) | 0.16" (4.1mm) | 0.37" (9.4mm) | 0.08" (2.0mm) | 304 SS |
| 150THTEE4S-125 | 1-1/4" | 1.25" (31.8mm) | 2.01" (51.1mm) | 1.89" (48.0mm) | 0.65" (16.5mm) | 3.50" (88.9mm) | 1.75" (44.5mm) | 0.20" (5.1mm) | 0.41" (10.4mm) | 0.08" (2.0mm) | 304 SS |
| 150THTEE4S-150 | 1-1/2" | 1.5" (38.1mm) | 2.32" (58.9mm) | 2.22" (56.4mm) | 0.63" (16.0mm) | 3.82" (97.0mm) | 1.91" (48.5mm) | 0.20" (5.1mm) | 0.45" (11.4mm) | 0.10" (2.5mm) | 304 SS |
| 150THTEE4S-200 | 2" | 2" (50.8mm) | 2.83" (71.9mm) | 2.68" (68.1mm) | 0.71" (18.0mm) | 4.45" (113.0mm) | 2.22" (56.4mm) | 0.24" (6.1mm) | 0.47" (11.9mm) | 0.10" (2.5mm) | 304 SS |
| 150THTEE4S-250 | 2-1/2" | 2.5" (63.5mm) | 3.54" (89.9mm) | 3.39" (86.1mm) | 0.91" (23.1mm) | 5.35" (135.9mm) | 2.68" (68.1mm) | 0.35" (8.9mm) | 0.57" (14.5mm) | 0.16" (4.1mm) | 304 SS |
| 150THTEE4S-300 | 3" | 3" (76.2mm) | 4.17" (105.9mm) | 4.00" (101.6mm) | 0.96" (24.4mm) | 6.18" (157.0mm) | 3.09" (78.5mm) | 0.39" (9.9mm) | 0.59" (15.0mm) | 0.16" (4.1mm) | 304 SS |
| 150THTEE4S-400 | 4" | 4" (101.6mm) | 5.20" (132.1mm) | 5.00" (127.0mm) | 1.02" (25.9mm) | 7.68" (195.1mm) | 3.84" (97.5mm) | 0.35" (8.9mm) | 0.61" (15.5mm) | 0.16" (4.1mm) | 304 SS |
| 150THTEE6S-013 | 1/8" | 0.125" (3.2mm) | 0.63" (16.0mm) | 0.53" (13.5mm) | 0.24" (6.1mm) | 1.42" (36.1mm) | 0.71" (18.0mm) | 0.12" (3.0mm) | 0.24" (6.1mm) | 0.10" (2.5mm) | 316 SS |
| 150THTEE6S-025 | 1/4" | 0.25" (6.4mm) | 0.75" (19.1mm) | 0.61" (15.5mm) | 0.37" (9.4mm) | 1.04" (26.4mm) | 0.77" (19.6mm) | 0.12" (3.0mm) | 0.24" (6.1mm) | 0.08" (2.0mm) | 316 SS |
| 150THTEE6S-038 | 3/8" | 0.375" (9.5mm) | 0.89" (22.6mm) | 0.77" (19.6mm) | 0.38" (9.7mm) | 1.85" (47.0mm) | 0.93" (23.6mm) | 0.12" (3.0mm) | 0.26" (6.6mm) | 0.10" (2.5mm) | 316 SS |
| 150THTEE6S-050 | 1/2" | 0.5" (12.7mm) | 1.10" (27.9mm) | 1.02" (25.9mm) | 0.39" (9.9mm) | 2.28" (57.9mm) | 1.14" (29.0mm) | 0.12" (3.0mm) | 0.30" (7.6mm) | 0.08" (2.0mm) | 316 SS |
| 150THTEE6S-075 | 3/4" | 0.75" (19.1mm) | 1.34" (34.0mm) | 1.24" (31.5mm) | 0.39" (9.9mm) | 2.56" (65.0mm) | 1.28" (32.5mm) | 0.12" (3.0mm) | 0.33" (8.4mm) | 0.08" (2.0mm) | 316 SS |
| 150THTEE6S-100 | 1" | 1" (25.4mm) | 1.69" (42.9mm) | 1.57" (39.9mm) | 0.51" (13.0mm) | 2.91" (73.9mm) | 1.46" (37.1mm) | 0.16" (4.1mm) | 0.37" (9.4mm) | 0.08" (2.0mm) | 316 SS |
| 150THTEE6S-125 | 1-1/4" | 1.25" (31.8mm) | 2.01" (51.1mm) | 1.89" (48.0mm) | 0.65" (16.5mm) | 3.50" (88.9mm) | 1.75" (44.5mm) | 0.20" (5.1mm) | 0.41" (10.4mm) | 0.08" (2.0mm) | 316 SS |
| 150THTEE6S-150 | 1-1/2" | 1.5" (38.1mm) | 2.32" (58.9mm) | 2.22" (56.4mm) | 0.63" (16.0mm) | 3.82" (97.0mm) | 1.91" (48.5mm) | 0.20" (5.1mm) | 0.45" (11.4mm) | 0.10" (2.5mm) | 316 SS |
| 150THTEE6S-200 | 2" | 2" (50.8mm) | 2.83" (71.9mm) | 2.68" (68.1mm) | 0.71" (18.0mm) | 4.45" (113.0mm) | 2.22" (56.4mm) | 0.24" (6.1mm) | 0.47" (11.9mm) | 0.10" (2.5mm) | 316 SS |
| 150THTEE6S-250 | 2-1/2" | 2.5" (63.5mm) | 3.54" (89.9mm) | 3.39" (86.1mm) | 0.91" (23.1mm) | 5.35" (135.9mm) | 2.68" (68.1mm) | 0.35" (8.9mm) | 0.57" (14.5mm) | 0.16" (4.1mm) | 316 SS |
| 150THTEE6S-300 | 3" | 3" (76.2mm) | 4.17" (105.9mm) | 4.00" (101.6mm) | 0.96" (24.4mm) | 6.18" (157.0mm) | 3.09" (78.5mm) | 0.39" (9.9mm) | 0.59" (15.0mm) | 0.16" (4.1mm) | 316 SS |
| 150THTEE6S-400 | 4" | 4" (101.6mm) | 5.20" (132.1mm) | 5.00" (127.0mm) | 1.02" (25.9mm) | 7.68" (195.1mm) | 3.84" (97.5mm) | 0.35" (8.9mm) | 0.61" (15.5mm) | 0.16" (4.1mm) | 316 SS |
