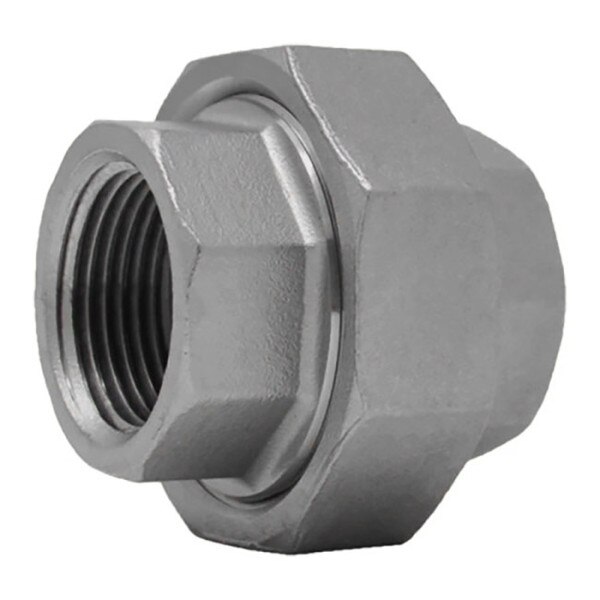

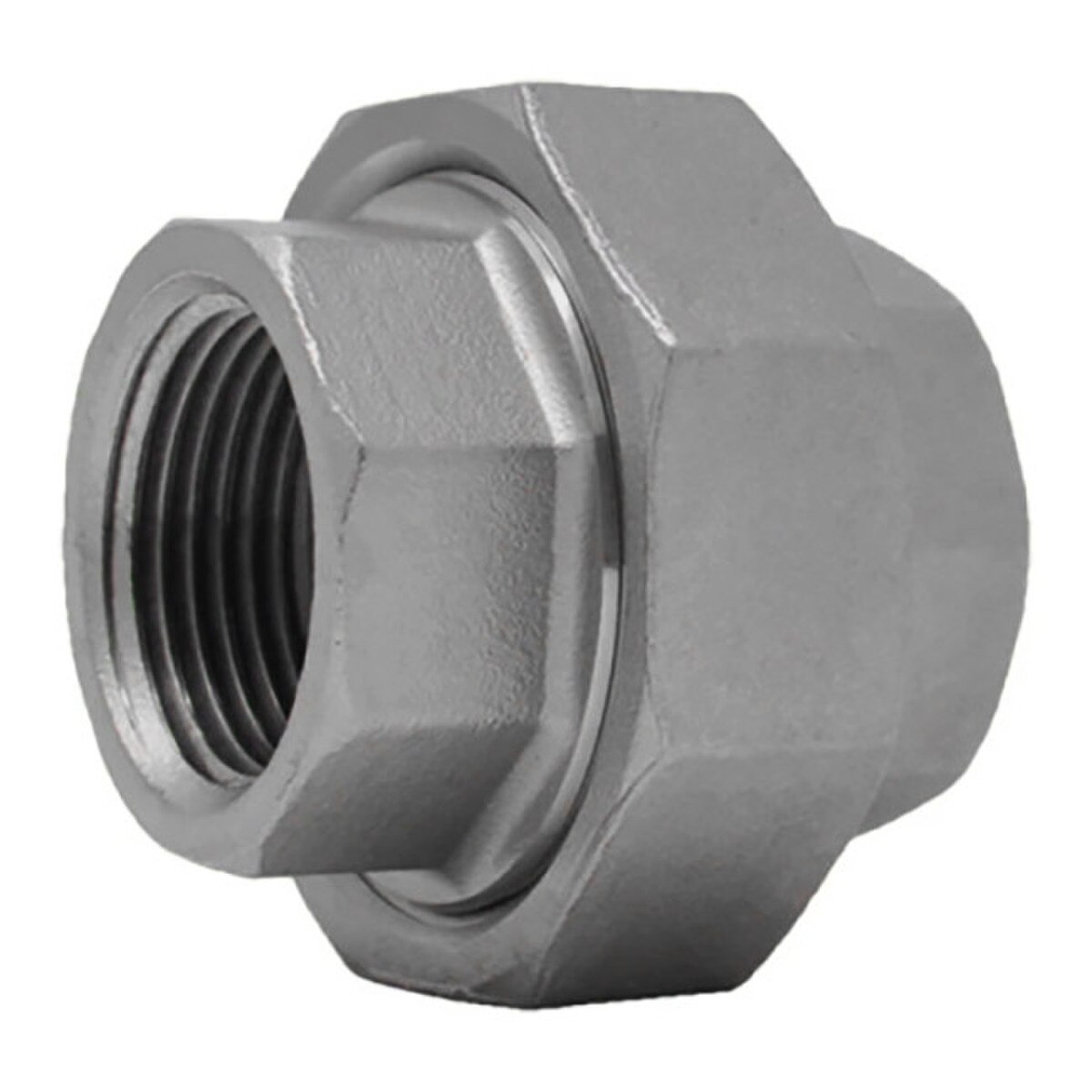

150# Cast NPT Threaded Pipe Unions - Stainless Steel
150# investment cast pipe unions with threaded end connections available in 304 and 316 stainless steel. Manufactured to A182 specification.
 | |||||||
| Part # | Size (NPT) | A | A1 | H | S1 | S2 | Material |
|---|---|---|---|---|---|---|---|
| 150THUN4S-013 | 1/8" | 1.46" (37.1mm) | 0.47" (11.9mm) | 0.59" (15.0mm) | 0.71" (18.0mm) | 1.14" (29.0mm) | 304 SS |
| 150THUN4S-025 | 1/4" | 1.46" (37.1mm) | 0.47" (11.9mm) | 0.59" (15.0mm) | 0.71" (18.0mm) | 1.14" (29.0mm) | 304 SS |
| 150THUN4S-038 | 3/8" | 1.54" (39.1mm) | 0.47" (11.9mm) | 0.63" (16.0mm) | 0.91" (23.1mm) | 1.42" (36.1mm) | 304 SS |
| 150THUN4S-050 | 1/2" | 1.61" (40.9mm) | 0.51" (13.0mm) | 0.59" (15.0mm) | 1.06" (26.9mm) | 1.61" (40.9mm) | 304 SS |
| 150THUN4S-075 | 3/4" | 1.65" (41.9mm) | 0.63" (16.0mm) | 0.63" (16.0mm) | 1.26" (32.0mm) | 1.93" (49.0mm) | 304 SS |
| 150THUN4S-100 | 1" | 2.01" (51.1mm) | 0.67" (17.0mm) | 0.71" (18.0mm) | 1.61" (40.9mm) | 2.28" (57.9mm) | 304 SS |
| 150THUN4S-125 | 1-1/4" | 2.05" (52.1mm) | 0.63" (16.0mm) | 0.83" (21.1mm) | 1.97" (50.0mm) | 2.68" (68.1mm) | 304 SS |
| 150THUN4S-150 | 1-1/2" | 2.20" (55.9mm) | 0.71" (18.0mm) | 0.87" (22.1mm) | 2.20" (55.9mm) | 3.03" (77.0mm) | 304 SS |
| 150THUN4S-200 | 2" | 2.36" (59.9mm) | 0.71" (18.0mm) | 0.98" (24.9mm) | 2.72" (69.1mm) | 3.62" (91.9mm) | 304 SS |
| 150THUN4S-250 | 2-1/2" | 2.95" (74.9mm) | 1.02" (25.9mm) | 0.98" (24.9mm) | 3.35" (85.1mm) | 4.29" (109.0mm) | 304 SS |
| 150THUN4S-300 | 3" | 3.50" (88.9mm) | 1.18" (30.0mm) | 1.14" (29.0mm) | 3.90" (99.1mm) | 4.92" (125.0mm) | 304 SS |
| 150THUN4S-400 | 4" | 3.90" (99.1mm) | 1.26" (32.0mm) | 1.34" (34.0mm) | 4.92" (125.0mm) | 6.14" (156.0mm) | 304 SS |
| 150THUN6S-013 | 1/8" | 1.46" (37.1mm) | 0.47" (11.9mm) | 0.59" (15.0mm) | 0.71" (18.0mm) | 1.14" (29.0mm) | 316 SS |
| 150THUN6S-025 | 1/4" | 1.46" (37.1mm) | 0.47" (11.9mm) | 0.59" (15.0mm) | 0.71" (18.0mm) | 1.14" (29.0mm) | 316 SS |
| 150THUN6S-038 | 3/8" | 1.54" (39.1mm) | 0.47" (11.9mm) | 0.63" (16.0mm) | 0.91" (23.1mm) | 1.42" (36.1mm) | 316 SS |
| 150THUN6S-050 | 1/2" | 1.61" (40.9mm) | 0.51" (13.0mm) | 0.59" (15.0mm) | 1.06" (26.9mm) | 1.61" (40.9mm) | 316 SS |
| 150THUN6S-075 | 3/4" | 1.65" (41.9mm) | 0.63" (16.0mm) | 0.63" (16.0mm) | 1.26" (32.0mm) | 1.93" (49.0mm) | 316 SS |
| 150THUN6S-100 | 1" | 2.01" (51.1mm) | 0.67" (17.0mm) | 0.71" (18.0mm) | 1.61" (40.9mm) | 2.28" (57.9mm) | 316 SS |
| 150THUN6S-125 | 1-1/4" | 2.05" (52.1mm) | 0.63" (16.0mm) | 0.83" (21.1mm) | 1.97" (50.0mm) | 2.68" (68.1mm) | 316 SS |
| 150THUN6S-150 | 1-1/2" | 2.20" (55.9mm) | 0.71" (18.0mm) | 0.87" (22.1mm) | 2.20" (55.9mm) | 3.03" (77.0mm) | 316 SS |
| 150THUN6S-200 | 2" | 2.36" (59.9mm) | 0.71" (18.0mm) | 0.98" (24.9mm) | 2.72" (69.1mm) | 3.62" (91.9mm) | 316 SS |
| 150THUN6S-250 | 2-1/2" | 2.95" (74.9mm) | 1.02" (25.9mm) | 0.98" (24.9mm) | 3.35" (85.1mm) | 4.29" (109.0mm) | 316 SS |
| 150THUN6S-300 | 3" | 3.50" (88.9mm) | 1.18" (30.0mm) | 1.14" (29.0mm) | 3.90" (99.1mm) | 4.92" (125.0mm) | 316 SS |
| 150THUN6S-400 | 4" | 3.90" (99.1mm) | 1.26" (32.0mm) | 1.34" (34.0mm) | 4.92" (125.0mm) | 6.14" (156.0mm) | 316 SS |
