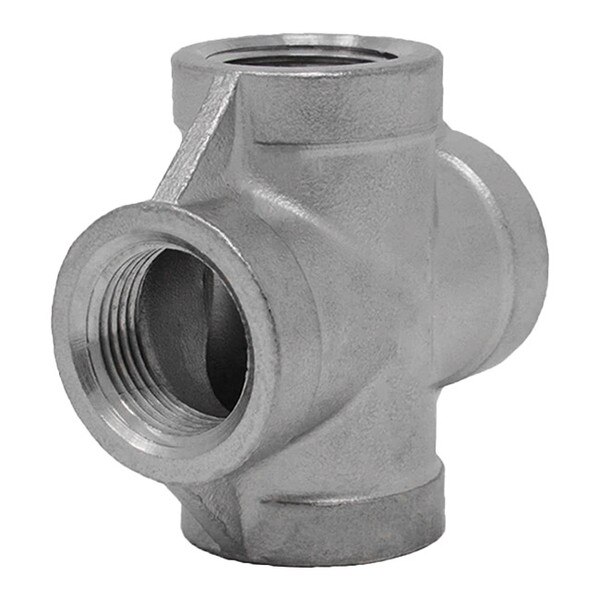

150# Cast NPT Threaded Pipe Crosses - Stainless Steel
150# investment cast pipe crosses with threaded end connections available in 304 and 316 stainless steel. Manufactured to A182 specification.
 | ||||||||
| Part # | Size (NPT) | d1 | d2 | d3 | C | E | H | Material |
|---|---|---|---|---|---|---|---|---|
| 150THX4S-013 | 1/8" | 0.125" (3.2mm) | 0.63" (16.0mm) | 0.55" (14.0mm) | 0.24" (6.1mm) | 0.69" (17.5mm) | 0.24" (6.1mm) | 304 SS |
| 150THX4S-025 | 1/4" | 0.25" (6.4mm) | 0.79" (20.1mm) | 0.71" (18.0mm) | 0.37" (9.4mm) | 0.75" (19.1mm) | 0.28" (7.1mm) | 304 SS |
| 150THX4S-038 | 3/8" | 0.375" (9.5mm) | 0.98" (24.9mm) | 0.91" (23.1mm) | 0.38" (9.7mm) | 0.91" (23.1mm) | 0.28" (7.1mm) | 304 SS |
| 150THX4S-050 | 1/2" | 0.5" (12.7mm) | 1.18" (30.0mm) | 1.10" (27.9mm) | 0.39" (9.9mm) | 1.14" (29.0mm) | 0.28" (7.1mm) | 304 SS |
| 150THX4S-075 | 3/4" | 0.75" (19.1mm) | 1.42" (36.1mm) | 1.34" (34.0mm) | 0.43" (10.9mm) | 1.28" (32.5mm) | 0.35" (8.9mm) | 304 SS |
| 150THX4S-100 | 1" | 1" (25.4mm) | 1.77" (45.0mm) | 1.65" (41.9mm) | 0.55" (14.0mm) | 1.48" (37.6mm) | 0.39" (9.9mm) | 304 SS |
| 150THX4S-125 | 1-1/4" | 1.25" (31.8mm) | 2.09" (53.1mm) | 1.97" (50.0mm) | 0.71" (18.0mm) | 1.73" (43.9mm) | 0.43" (10.9mm) | 304 SS |
| 150THX4S-150 | 1-1/2" | 1.5" (38.1mm) | 2.36" (59.9mm) | 2.20" (55.9mm) | 0.71" (18.0mm) | 1.89" (48.0mm) | 0.47" (11.9mm) | 304 SS |
| 150THX4S-200 | 2" | 2" (50.8mm) | 2.87" (72.9mm) | 2.76" (70.1mm) | 0.71" (18.0mm) | 2.32" (58.9mm) | 0.51" (13.0mm) | 304 SS |
| 150THX4S-250 | 2-1/2" | 2.5" (63.5mm) | 3.54" (89.9mm) | 3.39" (86.1mm) | 0.87" (22.1mm) | 2.68" (68.1mm) | 0.55" (14.0mm) | 304 SS |
| 150THX4S-300 | 3" | 3" (76.2mm) | 4.17" (105.9mm) | 4.02" (102.1mm) | 0.98" (24.9mm) | 3.07" (78.0mm) | 0.59" (15.0mm) | 304 SS |
| 150THX4S-400 | 4" | 4" (101.6mm) | 5.20" (132.1mm) | 5.04" (128.0mm) | 1.02" (25.9mm) | 3.82" (97.0mm) | 0.63" (16.0mm) | 304 SS |
| 150THX6S-013 | 1/8" | 0.125" (3.2mm) | 0.63" (16.0mm) | 0.55" (14.0mm) | 0.24" (6.1mm) | 0.69" (17.5mm) | 0.24" (6.1mm) | 316 SS |
| 150THX6S-025 | 1/4" | 0.25" (6.4mm) | 0.79" (20.1mm) | 0.71" (18.0mm) | 0.37" (9.4mm) | 0.75" (19.1mm) | 0.28" (7.1mm) | 316 SS |
| 150THX6S-038 | 3/8" | 0.375" (9.5mm) | 0.98" (24.9mm) | 0.91" (23.1mm) | 0.38" (9.7mm) | 0.91" (23.1mm) | 0.28" (7.1mm) | 316 SS |
| 150THX6S-050 | 1/2" | 0.5" (12.7mm) | 1.18" (30.0mm) | 1.10" (27.9mm) | 0.39" (9.9mm) | 1.14" (29.0mm) | 0.28" (7.1mm) | 316 SS |
| 150THX6S-075 | 3/4" | 0.75" (19.1mm) | 1.42" (36.1mm) | 1.34" (34.0mm) | 0.43" (10.9mm) | 1.28" (32.5mm) | 0.35" (8.9mm) | 316 SS |
| 150THX6S-100 | 1" | 1" (25.4mm) | 1.77" (4.05mm) | 1.65" (41.9mm) | 0.55" (14.0mm) | 1.48" (37.6mm) | 0.39" (9.9mm) | 316 SS |
| 150THX6S-125 | 1-1/4" | 1.25" (31.8mm) | 2.09" (53.1mm) | 1.97" (50.0mm) | 0.71" (18.0mm) | 1.73" (43.9mm) | 0.43" (10.9mm) | 316 SS |
| 150THX6S-150 | 1-1/2" | 1.5" (38.1mm) | 2.36" (59.9mm) | 2.20" (55.9mm) | 0.71" (18.0mm) | 1.89" (48.0mm) | 0.47" (11.9mm) | 316 SS |
| 150THX6S-200 | 2" | 2" (50.8mm) | 2.87" (72.9mm) | 2.76" (70.1mm) | 0.71" (18.0mm) | 2.32" (58.9mm) | 0.51" (13.0mm) | 316 SS |
| 150THX6S-250 | 2-1/2" | 2.5" (63.5mm) | 3.54" (89.9mm) | 3.39" (86.1mm) | 0.87" (22.1mm) | 2.68" (68.1mm) | 0.55" (14.0mm) | 316 SS |
| 150THX6S-300 | 3" | 3" (76.2mm) | 4.17" (105.9mm) | 4.02" (102.1mm) | 0.98" (24.9mm) | 3.07" (78.0mm) | 0.59" (15.0mm) | 316 SS |
| 150THX6S-400 | 4" | 4" (101.6mm) | 5.20" (132.1mm) | 5.04" (128.0mm) | 1.02" (25.9mm) | 3.82" (97.0mm) | 0.63" (16.0mm) | 316 SS |
