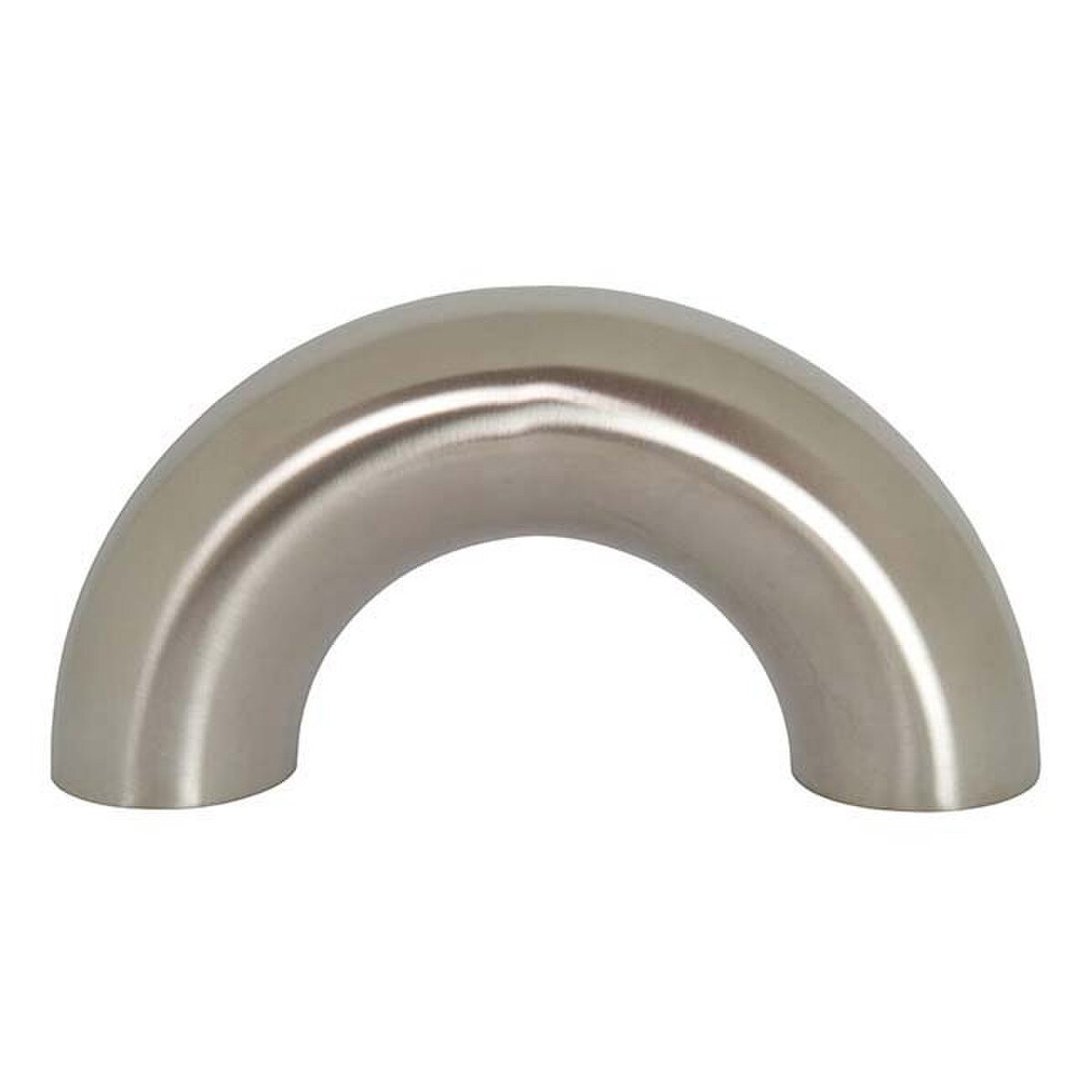

180 Degree Return Bends, Stainless Steel
B2WUL Stainless Steel 180 Degree Return Bend Weld Fittings with tangent Extensions are available with either a mill ID/OD or a 32Ra ID/OD polished finish in your choice or 304 or 316L stainless steel.
These Buttweld 180 Degree Weld Fittings are manufactured to very high tolerances via hydroforming. Hydroforming results in a more uniform fitting that is easier to weld and polish. This manufacturing method allows us to supply a superior quality fitting regardless of the application. Suitable for use in applications ranging from food and beverage, dairy, and pharmaceutical to marine and automotive.
These fittings have earned the 3A symbol, which requires an annual assessment to make certain each product conforms in all respects to the published standard. The 3A Sanitary Standard was created by the dairy industry as a voluntary benchmark for product performance and sanitary safety. The standard, collaboratively developed by a group of processors, suppliers, regulatory officials, and sanitation specialists, is generally accepted by federal, state and local regulatory authorities.
Part # | Size (Tube OD) | A | B | Nominal Wall | Material | Finish * |
---|---|---|---|---|---|---|
B2WUL-R-100-* | 1.00" (25.4mm) | 3.00" (76.2mm) | 2.00" (50.8mm) | 0.065" (1.65mm) | 316L SS | U (Mill) or P (Polished) |
B2WUL-R-150-* | 1.50" (38.1mm) | 4.50" (114.3mm) | 3.00" (76.2mm) | 0.065" (1.65mm) | 316L SS | U (Mill) or P (Polished) |
B2WUL-R-200-* | 2.00" (50.8mm) | 6.00" (152.4mm) | 4.00" (101.6mm) | 0.065" (1.65mm) | 316L SS | U (Mill) or P (Polished) |
B2WUL-R-250-* | 2.50" (63.5mm) | 7.50" (190.5mm) | 5.00" (127.0mm) | 0.065" (1.65mm) | 316L SS | U (Mill) or P (Polished) |
B2WUL-R-300-* | 3.00" (76.2mm) | 9.00" (228.6mm) | 6.00" (152.4mm) | 0.065" (1.65mm) | 316L SS | U (Mill) or P (Polished) |
B2WUL-R-400-* | 4.00" (101.6mm) | 12.00" (304.8mm) | 8.00" (203.2mm) | 0.083" (2.11mm) | 316L SS | U (Mill) or P (Polished) |
