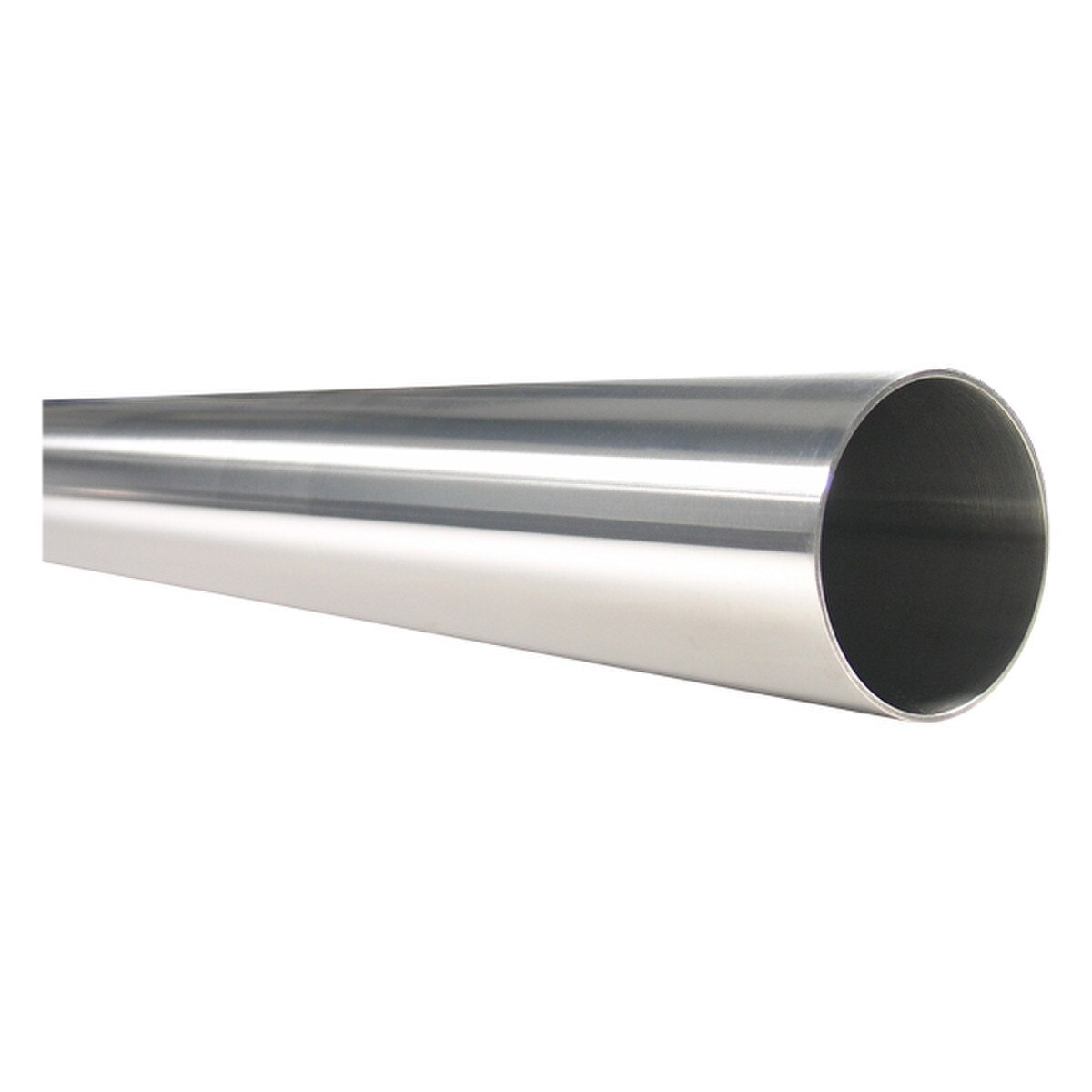

3/4" OD 316L Stainless Steel BPE Tubing, Welded, 16 Gauge (.065") - 20' Length (SFT4)
PLEASE NOTE: This length of Stainless Steel Exhaust Tubing exceeds the acceptable length allowed by the US Postal Service and UPS. Please contact us to make shipping arrangements. This tubing must go common carrier and you must be able to accept a tractor trailer shipment in order to buy 20 foot lengths.
20' length of 3/4" OD Welded 316L Stainless Steel BPE Tubing with a 16 gauge (0.065") wall. This SFT4 polished tubing undergoes multiple passes through the polishing heads as well as an electropolishing process to remove the microscopic peaks and valleys that facilitate microbe growth. The resulting finish is an elctropolished 15Ra Max inner diameter (ID) and mechanical polished 32Ra Max outer diameter (OD) that is ideal for pharmaceutical processing plants. The resulting product meets or exceeds both ASME BPE SF4 and ASTM SA249/A249/A269/A270-S2 specifications.
This tubing undergoes a rigorous quality inspection, including destructive and non-destructive examination, at the mill prior to shipment. This 9 point quality inspection examines:
- Strength - Tensile, Burst
- Hardness - Rockwell, Micro
- Soundness - Eddy Current, Ultrasonic, X-Ray
- Leak & Strength - Hydrostatic
- Leak - Air Under Water, Pressure Decay
- Bend Testing - Reverse Bending, Flattening, Reverse Flattening, Flange
- Dimensional - OD, Wall, Straightness
- Metallurgical - Grain Size, Sensitization, Corrosion, Phase Balance/Intermetallic, Metallographic
Call regarding any bulk orders greater than 100'.
| BPE Dimensional Tolerances | ||||
|---|---|---|---|---|
| Size | Nom. Wall | O.D. | Length | Wall |
| 1/2" (12.7mm) | 0.065" (1.65mm) | ± 0.005" (0.13mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 3/4" (19.1mm) | 0.065" (1.65mm) | ± 0.005" (0.13mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 1" (25.4mm) | 0.065" (1.65mm) | ± 0.005" (0.13mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 1-1/2" (38.1mm) | 0.065" (1.65mm) | ± 0.008" (0.20mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 2" (50.8mm) | 0.065" (1.65mm) | ± 0.008" (0.20mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 2-1/2" (63.5mm) | 0.065" (1.65mm) | ± 0.010" (0.25mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 3" (76.2mm) | 0.065" (1.65mm) | ± 0.010" (0.25mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 4" (101.6mm) | 0.083" (2.11mm) | ± 0.015" (0.38mm) | ± 1/16" (1.59mm) | ± 10.0% |
| 6" (152.4mm) | 0.109" (2.77mm) | ± 0.030" (0.76mm) | ± 1/16" (1.59mm) | ± 10.0% |
