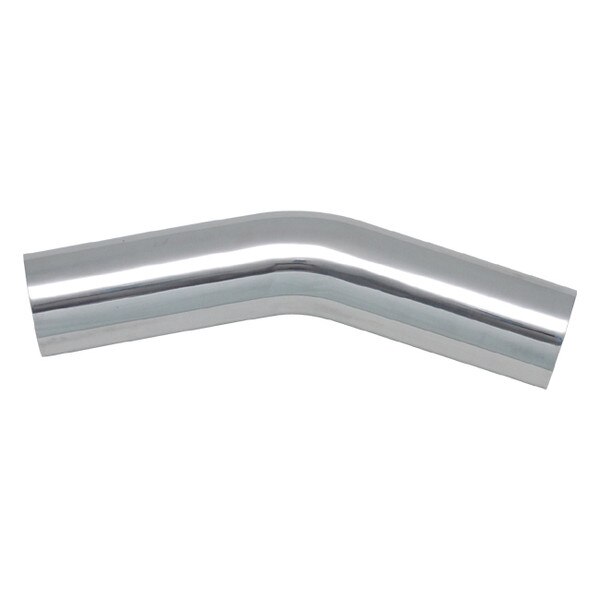

Vibrant Polished Aluminum Bends - 30 Degree
Give your vehicle the show quality look it deserves with these Vibrant Performance Polished Aluminum Bends which are constucted from 16 gauge (.065 wall) 6063 aluminum with a mirror like finish. This lightweight 30 degree polished aluminum mandrel bend will work great for custom cold air intakes and turbo intercooler plumbing. Vibrant also offers an assortment of other polished aluminum bend styles to ensure your custom intercooler piping can be as smooth flowing as possible.
Due to the compounds used to polish the surface of this 6063 aluminum tube, this product is not recommended for welded applications unless you have a complete understanding of proper surface preparation techniques that should be taken prior to welding.
 | |||||
| VMS Part # | MFG Part # | Size (Tube OD) | A (Legs) | R (Radius) | Wall Thickness |
|---|---|---|---|---|---|
| 0306116P-150225 | 2150 | 1.50" | 6.50" | 2.25" | 0.065" |
| 0306116P-200250 | 2806 | 2.00" | 6.50" | 2.50" | 0.065" |
| 0306116P-250375 | 2808 | 2.50" | 6.50" | 3.75" | 0.065" |
| 0306116P-275425 | 2809 | 2.75" | 6.00" | 4.25" | 0.065" |
| 0306116P-300450 | 2811 | 3.00" | 6.00" | 4.50" | 0.065" |
| 0306116P-350450 | 2812 | 3.50" | 5.50" | 4.50" | 0.065" |
| 0306116P-400500 | 2813 | 4.00" | 5.50" | 5.00" | 0.065" |
