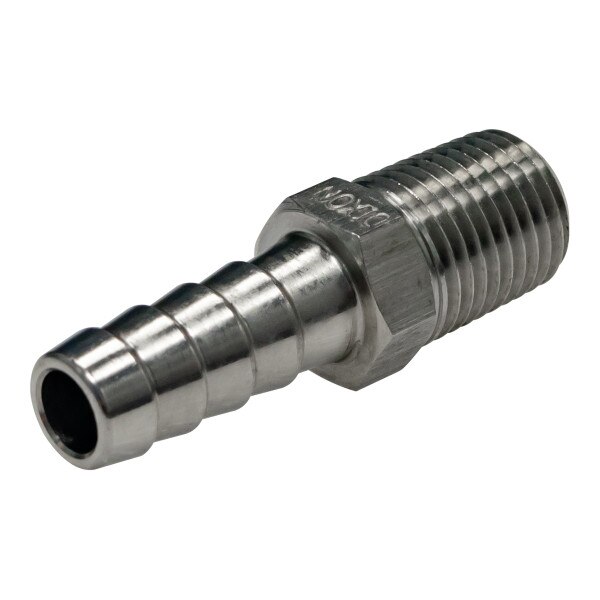

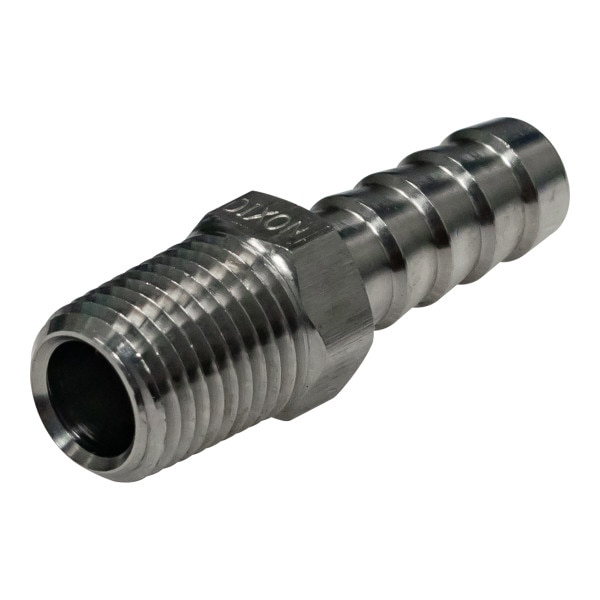

NPT x Hose Barb Adapter Fittings - 316 Stainless Steel
These 316 Stainless Steel Hose Barb Fittings/Inserts feature NPT thread for adapting from pipe fittings to a hose connection. Worm gear clamps or crimp ferrules required, sold separately.
Product Features:
- 316 stainless steel construction
- Working pressure: 250 PSI maximum at 72°F (22°C)
- Operating temperature range: -40°F to 160°F (-40°C to 71°C) at 150 PSI maximum
- Available for NPT connections from 1/8" up to 1"
- Economical & corrosion-resistant
- Thread ends compliant with SAE J476, J512,J514, and J516
Part Number | Hose Size | NPT Size |
---|---|---|
RN11 | 1/8" | 1/8" |
RN151 | 3/16" | 1/8" |
RN152 | 3/16" | 1/4" |
RN21 | 1/4" | 1/8" |
RN22 | 1/4" | 1/4" |
RN23 | 1/4" | 3/8" |
RN251 | 5/16" | 1/8" |
RN252 | 5/16" | 1/4" |
RN253 | 5/16" | 3/8" |
RN31 | 3/8" | 1/8" |
RN32 | 3/8" | 1/4" |
RN33 | 3/8" | 3/8" |
RN34 | 3/8" | 1/2" |
RN42 | 1/2" | 1/4" |
RN43 | 1/2" | 3/8" |
RN44 | 1/2" | 1/2" |
RN46 | 1/2" | 3/4" |
RN53 | 5/8" | 3/8" |
RN54 | 5/8" | 1/2" |
RN56 | 5/8" | 3/4" |
RN64 | 3/4" | 1/2" |
RN66 | 3/4" | 3/4" |
RN86 | 1" | 3/4" |
RKHN881 | 1" | 1" |
