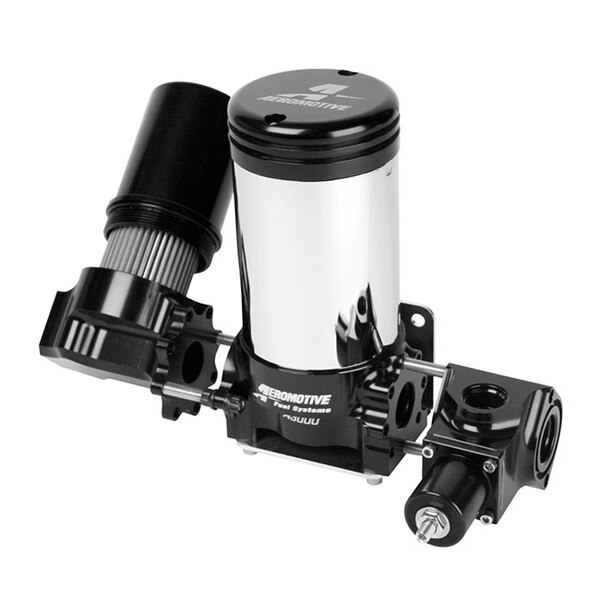

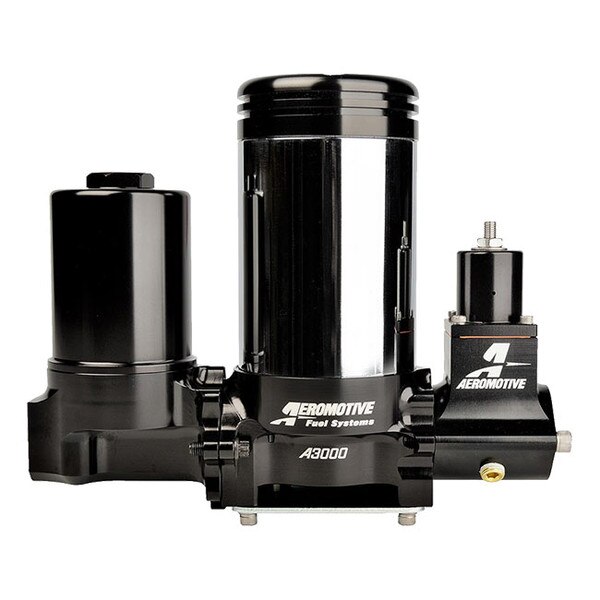

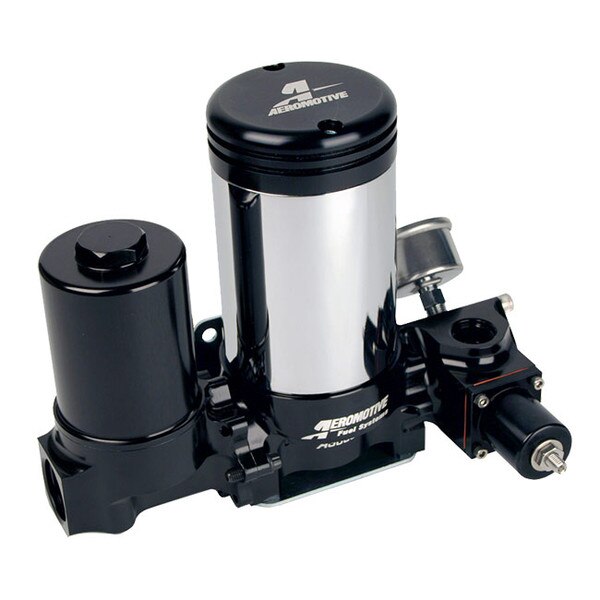

The Aeromotive 11215 A3000 Complete Fuel Pump Kit is an upgrade and redesign to one of the winningest fuel pumps in drag racing, the popular A2000 Fuel Pump. The A3000 features the same basic design and function as its predecessor but boasts less weight, over 1 GPM more flow at pressure and never-before-seen modular features and mounting options, like a removable and indexible fuel filter and true diaphragm-controlled bypass regulator.

The A3000 Fuel Pump provides more mounting provisions, enhanced performance and better pressure control than any fuel pump in its class. This crafty Modular design affords the racer a variety of options for mounting and pressure control. When mated with the P/N 11218 100-Micron Filter and/or the P/N 11217 Pressure Regulator, (both parts sold separately) you have the ability to independently index those components for a custom installation on your race car. If you already have a compatible Pre-Filter or don’t want to utilize a return on the pump, the pump can operate as a “stand alone” featuring a ORB-12 inlet port and ORB-10 outlet port.

Aeromotive 11215 A3000 Fuel Pump Kit Features:

• 14% more flow across the entire pressure range (vs. the A2000)
• Lightweight (5.1 lbs)
• 6.8 gpm @ 5 psi / 13.5V (Over 400 gph)
• ORB-12 Inlet, ORB-10 Outlet
• Alcohol / Methanol Compatible
• Multiple bolt patterns on the bottom of the pump fit almost any chassis mounting options, including competitors’ pumps
• Integrated Pre-Pump Fuel Filter
• Compact design
• Flexible mounting configurations
• True Diaphragm Controlled Bypass Regulator Integrated into the pump
• Regulator provides smoother and more controlled flow and pressure as well as dampens pressure spikes
• Regulator and Filter clockable in 45° increments for additional chassis clearance
• Regulator can be removed and run as a true bypass regulator
• Regulator’s bolt pattern matches to the Aeromotive Stackable Regulators (P/N 13217)

Aeromotive 11215 A3000 Complete Assembly Contents:

• 11216 - A3000 Carbureted Fuel Pump
• 11217 - A3000 Pressure Regulator
• 11218 - A3000 100-Micron Fuel Filter
