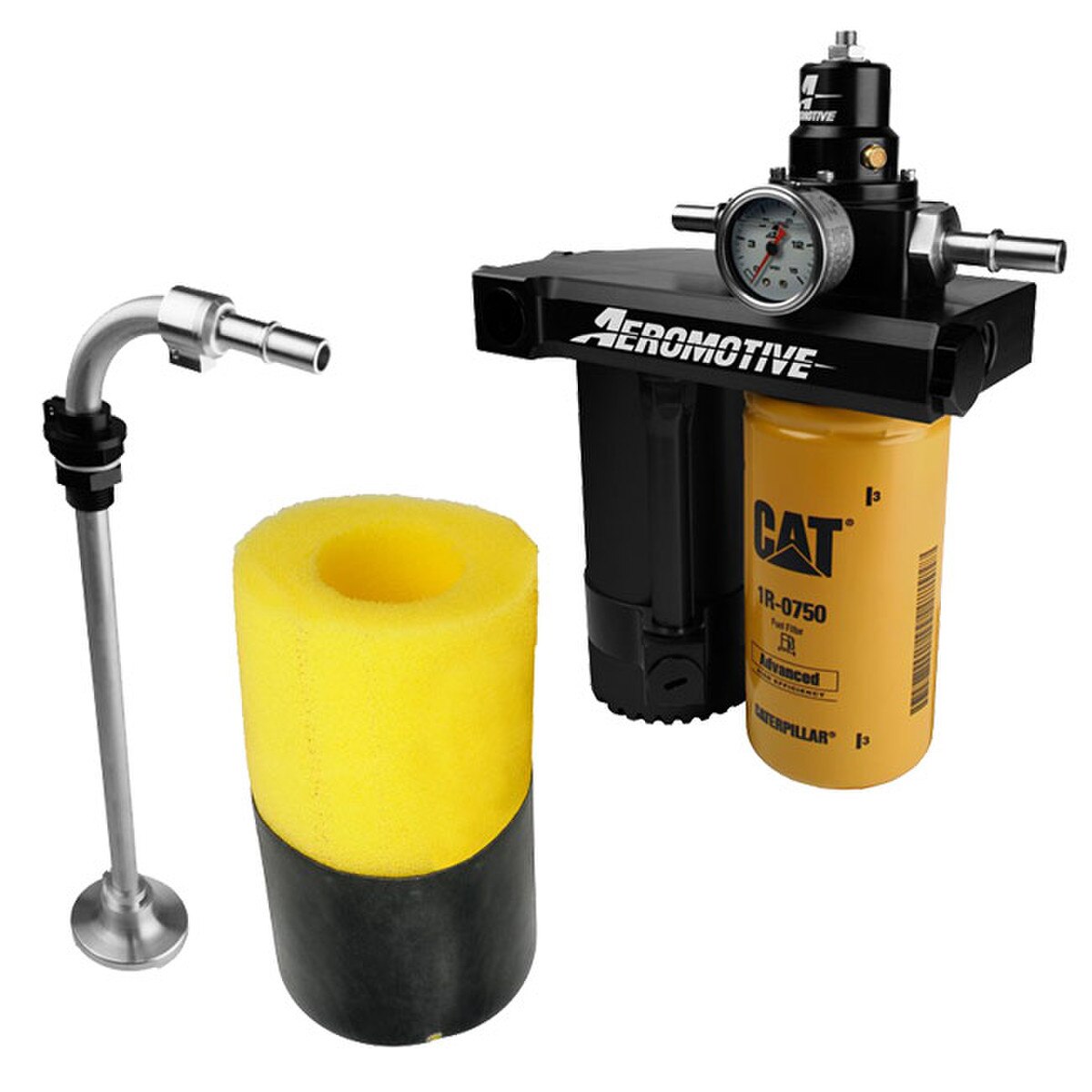

The Aeromotive 11803 Diesel Lift Pump Retrofit Kit for the 01-10 Chevy Duramax is designed to replace an existing aftermarket diesel lift pump equipped with 1/2" lines. These Diesel Lift Kits were was developed to solve some key issues in the diesel lift pump market, most notably the 1/4 tank issue, the pressure control issue, and motor shaft seal failures. Aeromotive opted for a flow-thru design to solve the shaft seal failure, which means there is no shaft seal to fail or leak. Specific to the Duramax platform is a “fail safe” valve. In the event of failure or a no-run condition, the valve will open and allow fuel to bypass the pump. This allows the vehicle to continue to run and get you to your destination, eliminating tow bills. With a brushless motor design, Aeromotive has increased the performance and longevity you would expect from a diesel lift pump. A single filter model simplifies the design and reduces maintenance cost. This diesel pump includes the Caterpillar 1R-0750 2-micron filter to catch the smallest particulates. With a standard 1”-14 filter head thread, the end user can use their filter of choice.

11803 01-10 Chevy Duramax Diesel Lift Retrofit Kit Contents:

• (1) Fuel Pump Assembly (130gph)
• (1) 1/2" Suction Hose Assembly
• (1) Frame Bracket 1
• (1) Frame Bracket 2
• (2) 2” Bracket Spacers
• (3) 3/8-16 x 4”" Hex Head Bolt
• (2) 3/8-16 x 3” Tapered Socket Cap Screw
• (3) Zinc Plated Lock Washer
• (1) Pump Power Harness
• (4) P/N 15129 -10 AN to 1/2" J2044 Quick Connect
• (1) P/N 15131 -12 AN to 1/2" J2044 Quick Connect
• (1) P/N 15632 1/8”" NPT 0-15psi Fuel Pressure Gauge
• (3) 3/8-16 Zinc Plated Jam Nut
• (4) -10 AN O-Rings
• (1) -12 AN O-Ring
• (1) P/N 12324 100 Micron Pre-Filter
