An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, Aeromotive filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.

CNC-machined from 6061-T6 aircraft aluminum with a bright dip anodized finish for a corrosion resistant, show car quality appearance. Available in black or red.

Special Notes: 10 Micron filter may ONLY be used after the fuel pump to protect you injectors or carburetor. 100 Micron filters are designed for use between the fuel tank and the fuel pump to protect the pump. Fabric elements not suitable for use in E85 or alcohol applications.

Features:

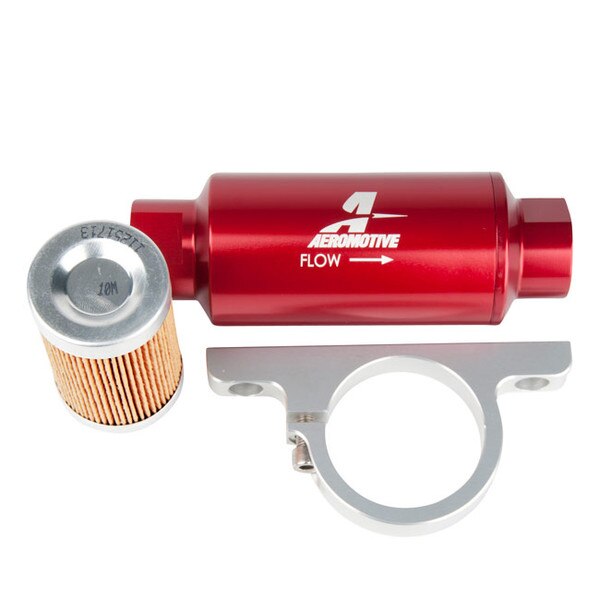

• Includes P/N 12301 or P/N 12304 In-Line Fuel Filter
• Includes P/N 12305 Billet Mounting Bracket
• Replaceable elements
• Flows 2,000 lb/hr with a pressure drop of less than 1 PSI
• ORB-10 Ports
• Compact size: 2" Diameter x 5.5" Long
• O-Ring for positive sealing in high pressure applications

Part Numbers:
• P/N 12336 - 10 Micron Fabric Element - Red Housing
• P/N 12337 - 100 Micron Fabric Element - Red Housing
