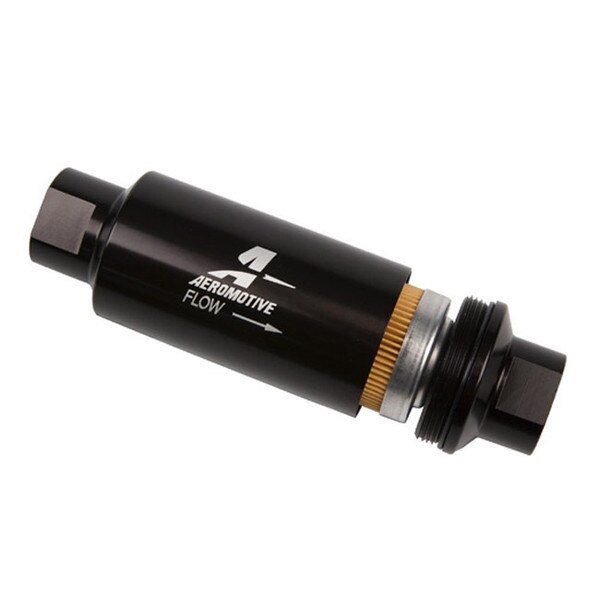

Aeromotive Marine Series ORB-10 Fuel Filters are an inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.

Aeromotives Marine Series components are similar to their street and performance products but are certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance. All marine components are hardcoat anodized for superior corrosion resistance and each product carries a 2 year limited warranty.

Special Notes: 10 Micron filter may ONLY be used after the fuel pump to protect your injectors or carburetor. 100 Micron filters are designed for use between the fuel tank and the fuel pump to protect the pump. Fabric elements not suitable for use in E85 or alcohol applications.

Aeromotive Marine Series Inline Fuel Filter Features:

• Replaceable elements
• Flows 2,000 lb/hr with a pressure drop of less than 1 PSI
• ORB-10 Ports
• 2" Diameter x 5.5" Long
• O-Ring for positive sealing in high pressure applications
• Hardcoat Anodized for superior corrosion resistance

Part Numbers:

• P/N 12306 - 10 Micron Fabric Element
• P/N 12346 - 10 Micron Micro Glass Element
• P/N 12307 - 100 Micron Stainless Element
