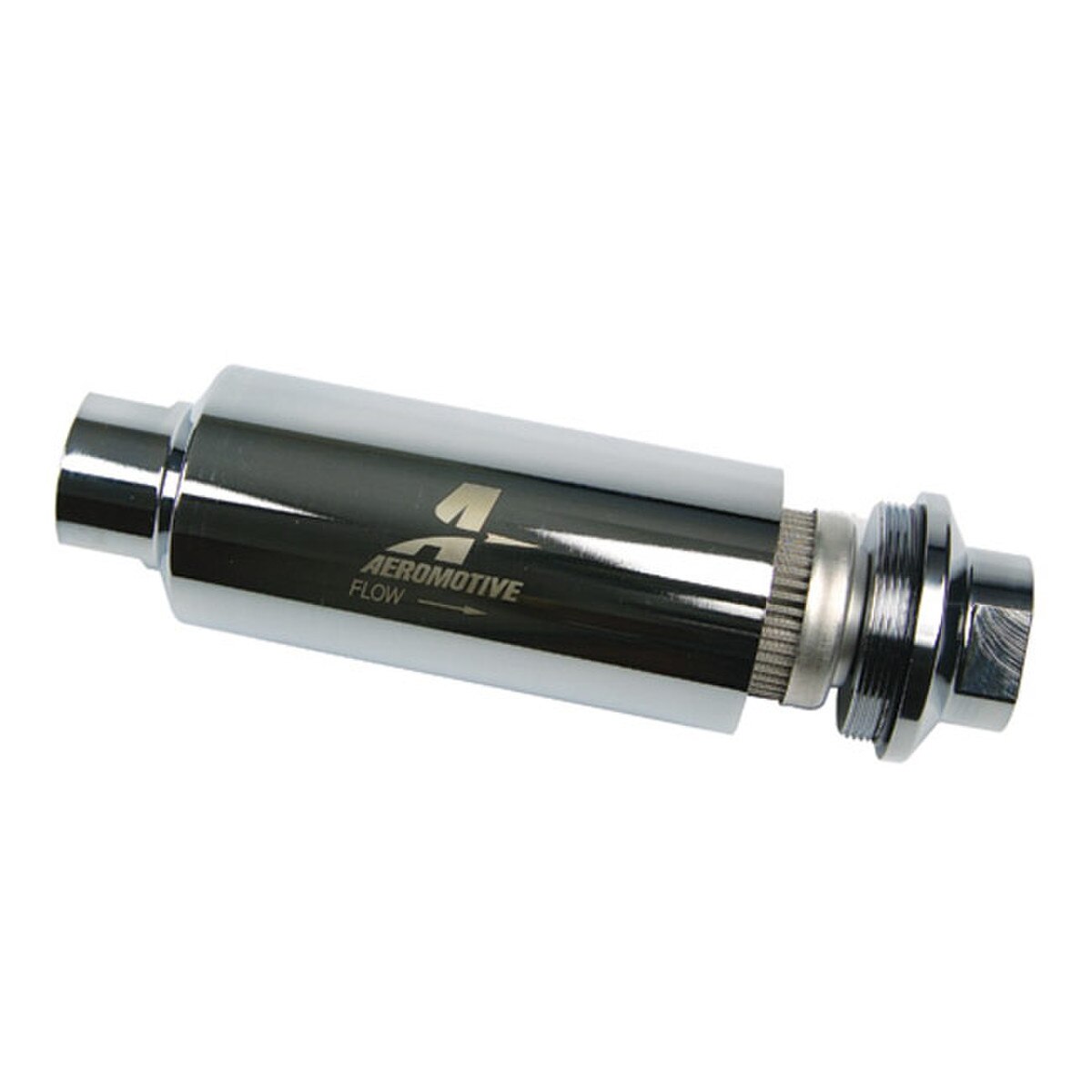

Aeromotive In-Line Fuel Filters - ORB-12 (Pro Series)
Details
Aeromotive Pro Series Fuel Filters are an inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 - 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components.
Special Notes: 10 Micron filter may ONLY be used after the fuel pump to protect your injectors or carburetor. 100 Micron filters are designed for use between the fuel tank and the fuel pump to protect the pump. Fabric elements not suitable for use in E85 or alcohol applications.
Aeromotive Pro Series Inline Fuel Filter Features:
- Replaceable elements
- Flows 2,000 lb/hr with a pressure drop of less than 1 PSI
- ORB-12 Ports
- 2.5" Diameter x 7" Long
- O-Ring for positive sealing in high pressure applications
- Indestructible electroless nickel finish
Part Numbers:
- P/N 12310 - 10 Micron Fabric Element
- P/N 12339 - 10 Micron Micro Glass Element
- P/N 12342 - 40 Micron Fabric Element
- P/N 12302 - 100 Micron Stainless Element
