Behringer CHT Series - Compact Tubing Mounts

(0)No Reviews yet
Back

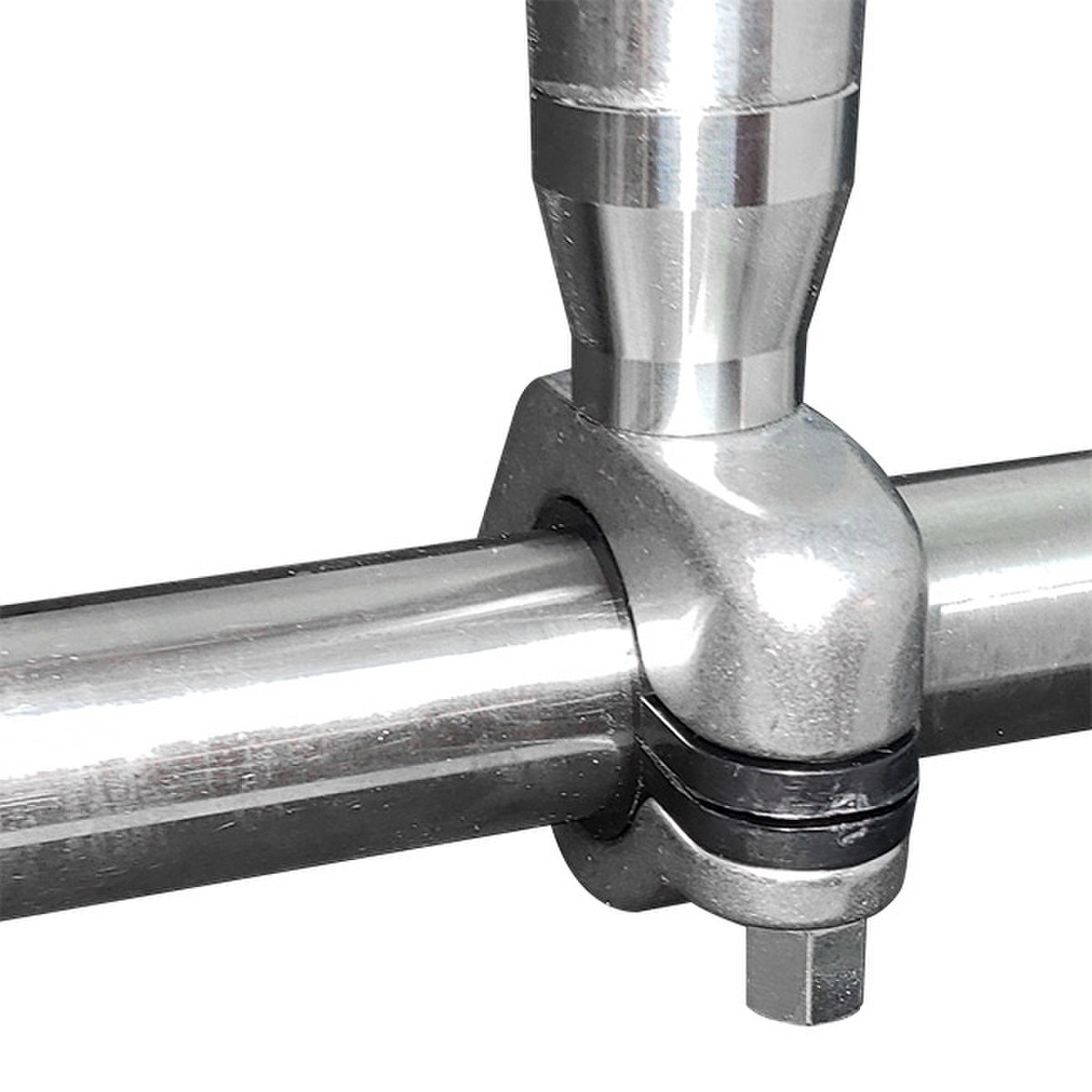

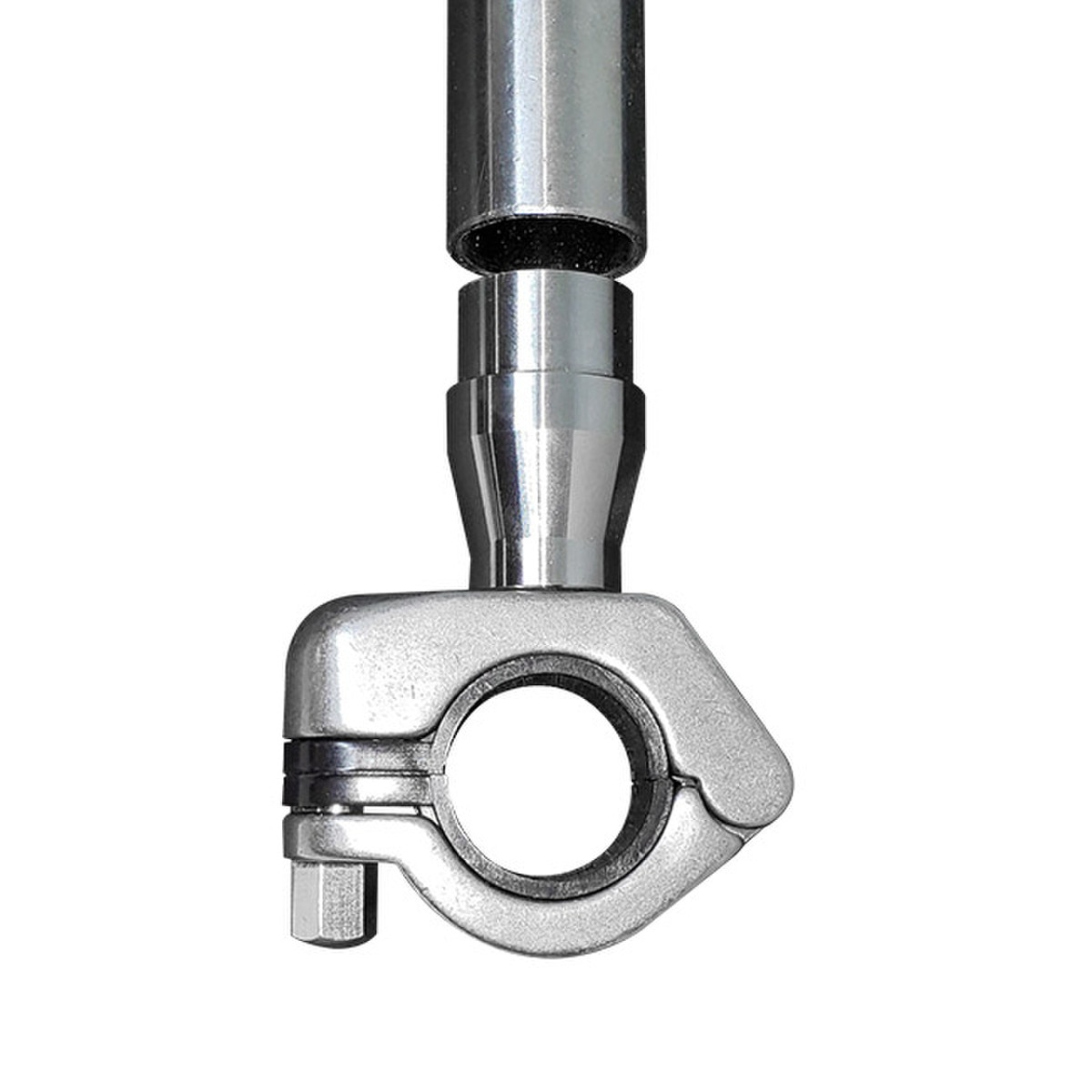

The CHT Series tubing mount is a one piece unit with a threaded adapter attached to the housing. Rod is sold separately. The threaded adapter on the top of this unit can be used as either a threaded rod connector or a welding platform. The connection is rigid and does not allow for any adjustment. For installation simply weld this unit to a support structure or use with a threaded support rod. The support rods can either be welded to a support structure or used with one of Behringer's support stands which allow the support to be adjusted telescopically to the tube or pipe elevation for a perfect fit. Use in conjunction with Behringer’s tube adapter to transition from the 3/8” threaded mount to a 1” welded tube connection for a clean and seamless look. Available in either 304 or 316 Stainless Steel, both have a 25 Ra finish. Suitable for a multitude of uses to hang and support tubes, pipes, instruments, etc. Use in any industry including marine environments.

Features:

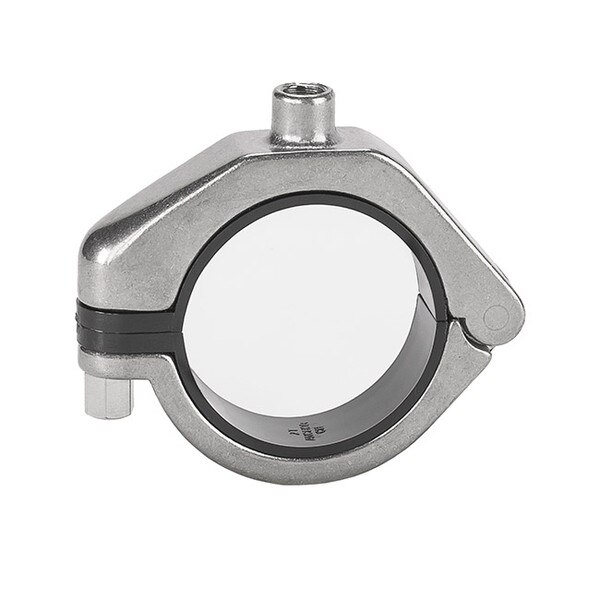

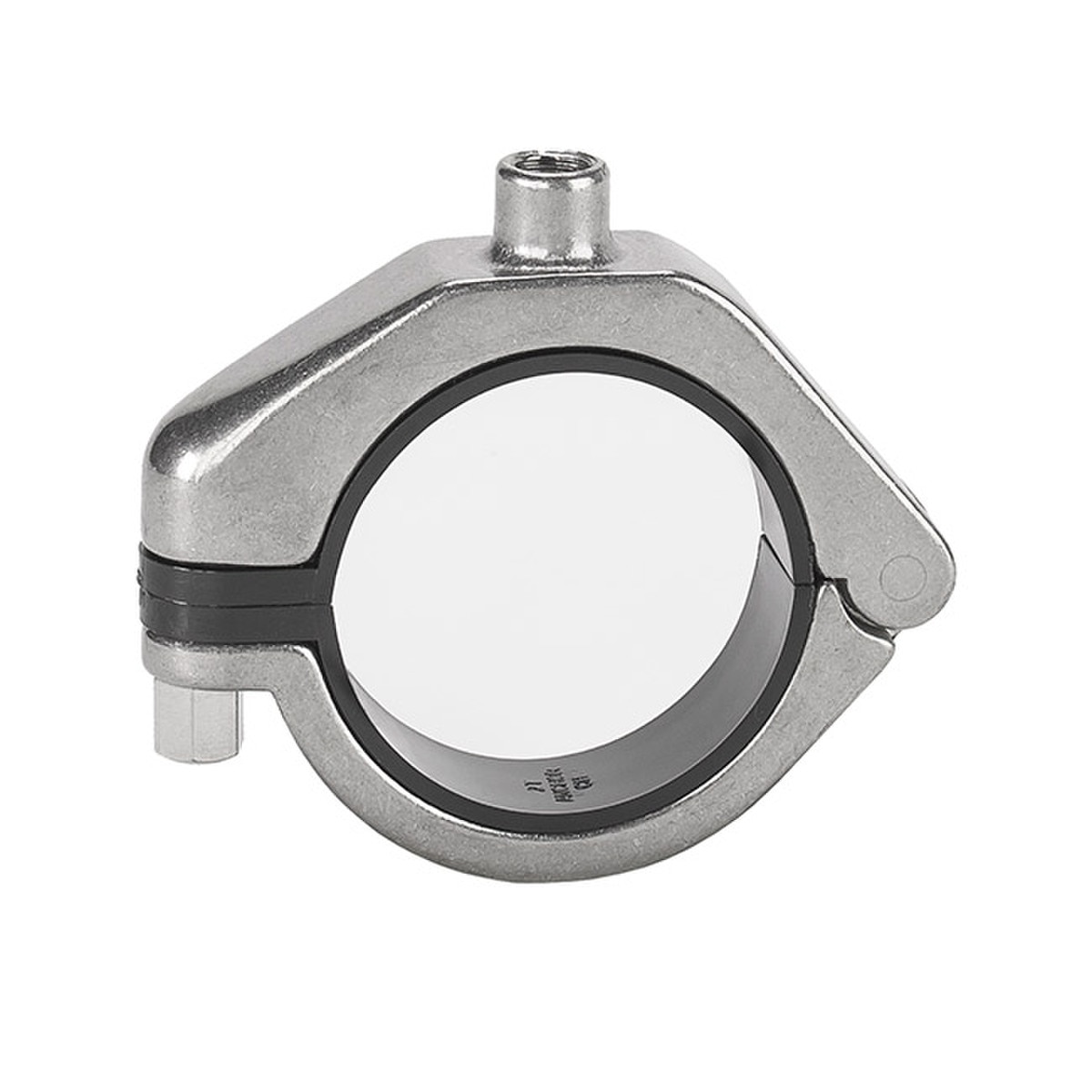

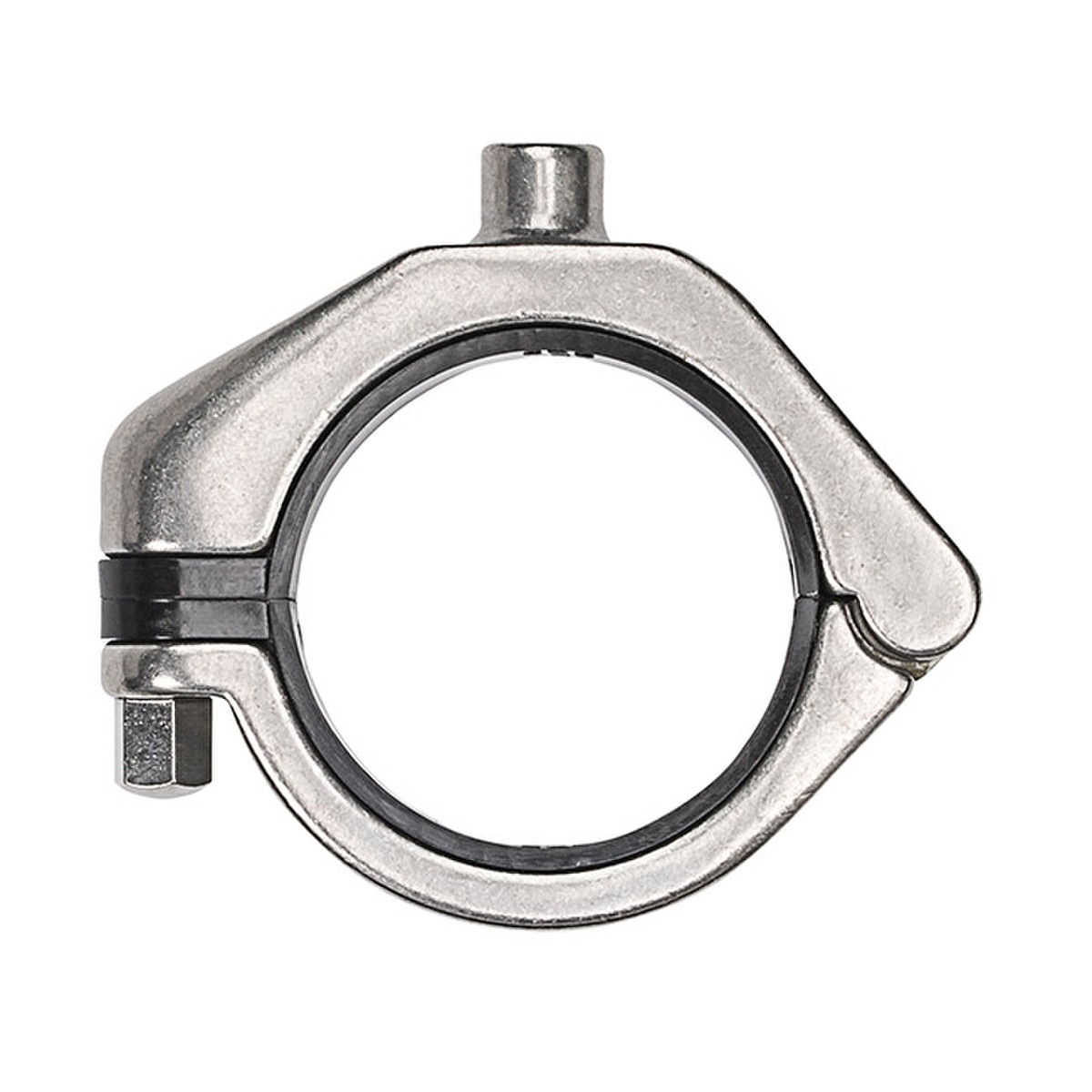

  • Anchor (Black) - No thermal expansion, greater shear force

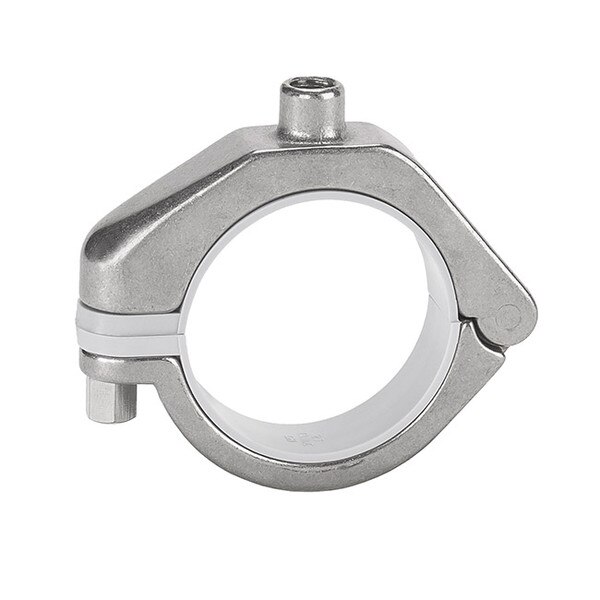

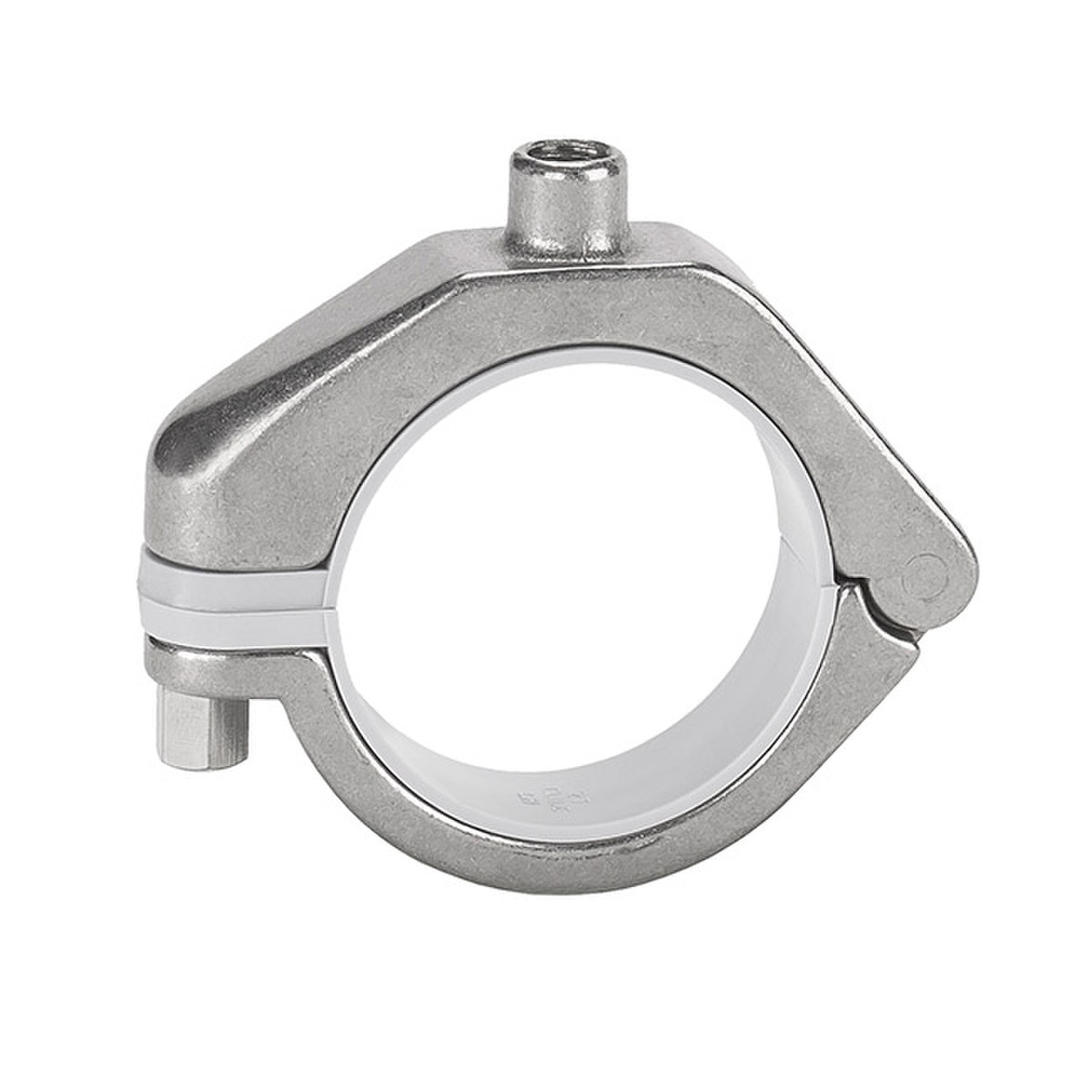

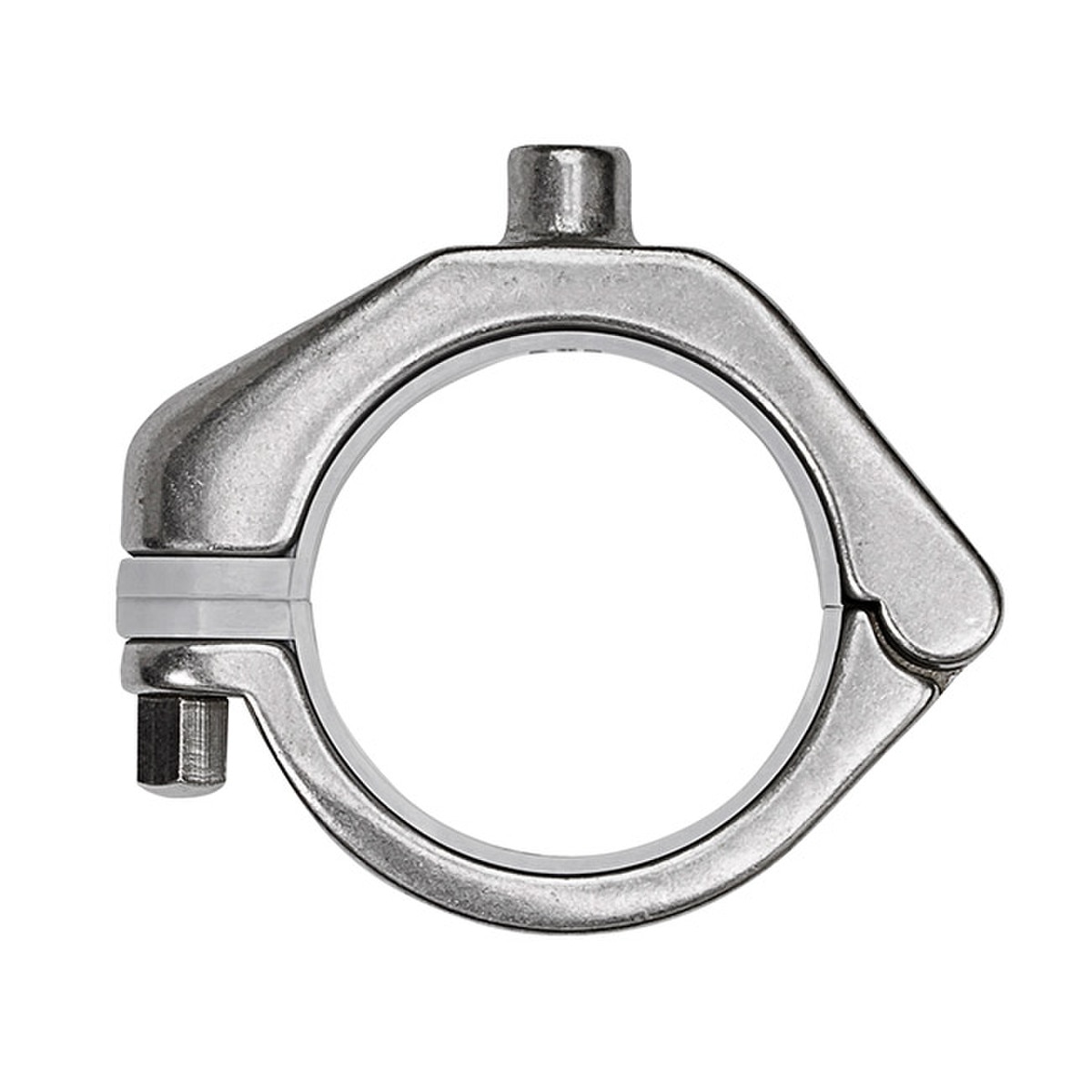

  • Guide (Gray) - Allows free axial movement for thermal expansion
  • Temperature Rating: 320°F/160°C
  • Corrosion Resistant Polysulfone UV Resistant polymer insert grips tight while protecting your polished stainless steel
  • Easy to Install
  • Weldable or Threaded mount
  • Captive bolt with hinged design
Applications:
  • Hygienic tubing or pipe supports
  • External Mounts
  • Electronics
  • Engine Room / Mechanical
  • Interior
Back
GroupPart NumberD or GW1W2ZUHThreadRod
Diameter
1CHT-PS-024-0.240.93"
(24mm)		1.02"
(26mm)		0.75"
(19mm)		1.08"
(28mm)		1.67"
(42mm)		3/8"-16
(10mm)		1/2"
(12mm)
CHT-PG-024-0.27
CHT-PS-025-0.25
CHT-PG-025-0.29
CHT-PS-038-0.38
CHT-PG-038-0.40
CHT-PS-050-0.50
CHT-PG-050-0.54
2CHT-PS-054-0.541.06"
(27mm)		1.15"
(29mm)		0.75"
(19mm)		1.23"
(31mm)		1.93"
(49mm)		3/8"-16
(10mm)		1/2"
(12mm)
CHT-PG-054-0.58
CHT-PS-063-0.63
CHT-PG-063-0.67
CHT-PS-075-0.75
CHT-PG-075-0.79
3CHT-PS-079-0.791.20"
(31mm)		1.28"
(33mm)		0.75"
(19mm)		1.35"
(34mm)		2.19"
(56mm)		3/8"-16
(10mm)		1/2"
(12mm)
CHT-PG-079-0.82
CHT-PS-084-0.84
CHT-PG-084-0.88
CHT-PS-088-0.88
CHT-PG-088-0.91
CHT-PS-100-1.00
CHT-PG-100-1.04
4CHT-PS-105-1.051.46"
(37mm)		1.56"
(40mm)		0.75"
(19mm)		1.66"
(42mm)		2.74"
(69mm)		3/8"-16
(10mm)		1/2"
(12mm)
CHT-PG-105-1.09
CHT-PS-113-1.13
CHT-PG-113-1.16
CHT-PS-132-1.32
CHT-PG-132-1.35
CHT-PS-150-1.50
CHT-PG-150-1.54
5CHT-PS-158-1.581.74"
(44mm)		1.79"
(46mm)		0.75"
(19mm)		1.85"
(47mm)		3.18"
(81mm)		3/8"-16
(10mm)		1/2"
(12mm)
CHT-PG-158-1.61
CHT-PS-163-1.63
CHT-PG-163-1.66
CHT-PS-190-1.90
CHT-PG-190-1.94
CHT-PS-200-2.00
CHT-PG-200-2.04
6CHT-PS-205-2.052.02"
(51mm)		2.04"
(52mm)		1.00"
(25mm)		2.18"
(55mm)		3.77"
(96mm)		3/8"-16
(10mm)		5/8"
(19mm)
CHT-PG-205-2.10
CHT-PS-213-2.13
CHT-PG-213-2.18
CHT-PS-238-2.38
CHT-PG-238-2.93
CHT-PS-250-2.50
CHT-PG-250-2.55
7CHT-PS-276-2.762.27"
(58mm)		2.29"
(58mm)		1.00"
(25mm)		2.34"
(59mm)		4.18"
(137mm)		3/8"-16
(10mm)		5/8"
(19mm)
CHT-PG-276-2.81
CHT-PS-288-2.88
CHT-PG-288-2.93
CHT-PS-300-3.00
CHT-PG-300-3.05
8CHT-PS-313-3.132.76"
(70mm)		2.79"
(71mm)		1.00"
(25mm)		3.08"
(78mm)		5.42"
(137mm)		1/2"-13
(16mm)		3/4"
(19mm)
CHT-PG-313-3.18
CHT-PS-350-3.50
CHT-PG-350-3.55
CHT-PS-400-4.00
CHT-PG-400-4.05
8ACHT-PS-409-4.093.00"
(76mm)		3.09"
(78mm)		1.00"
(25.4mm)		3.28"
(83mm)		5.87"
(149mm)		1/2"-13
(16mm)		3/4"
(19mm)
CHT-PG-409-4.14
CHT-PS-413-4.13
CHT-PG-413-4.18
CHT-PS-450-4.50
CHT-PG-450-4.55
9CHT-PS-508-5.083.98"
(101mm)		4.46"
(113mm)		1.50"
(38mm)		4.46"
(113mm)		8.04"
(204mm)		3/4"-10
(20mm)		1"
(25mm)
CHT-PG-508-5.13
CHT-PS-600-6.00
CHT-PG-600-6.05
