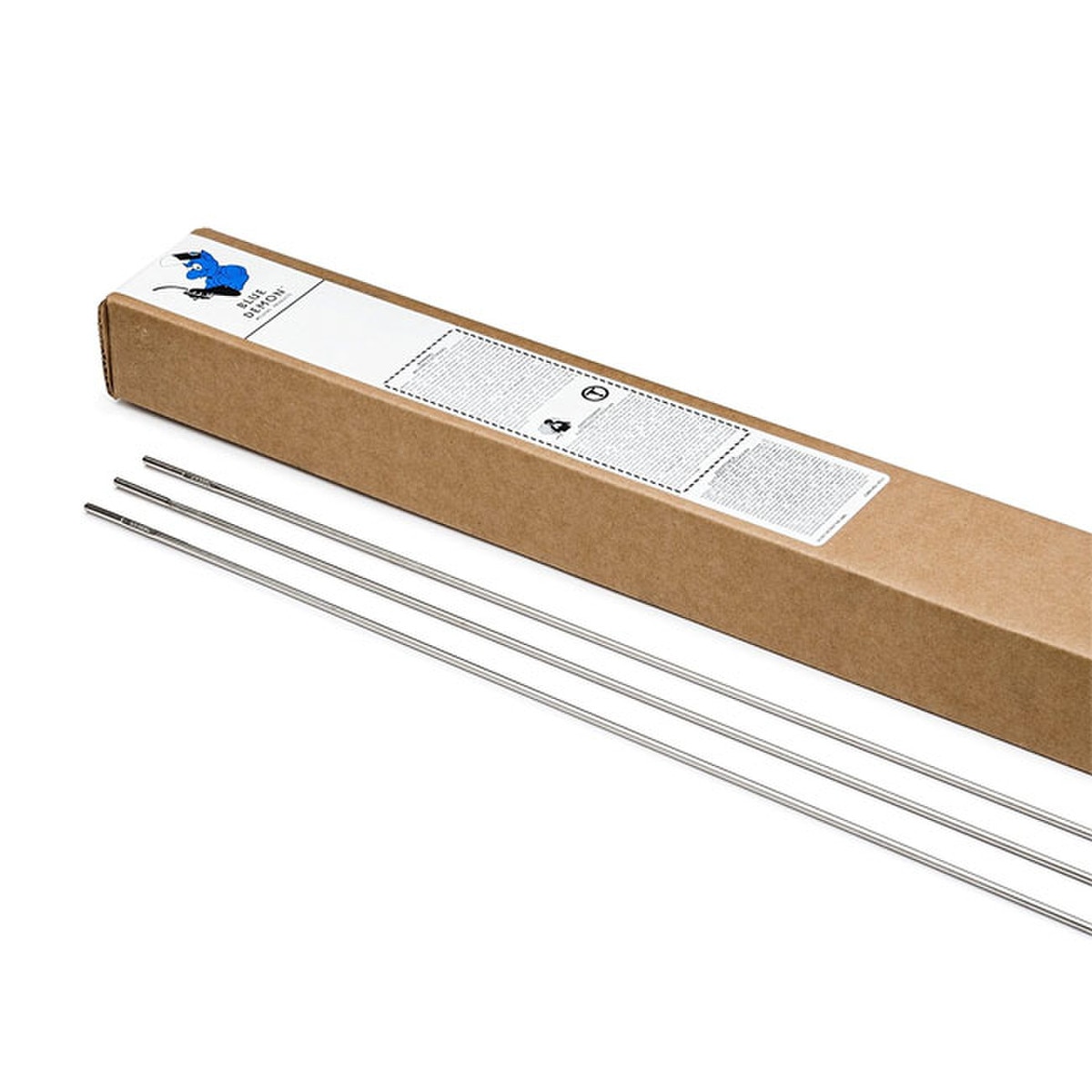

Blue Demon ER347 Stainless Steel TIG Welding Rods
Blue Demon ER347 Stainless Steel TIG Welding Rod is a stainless steel welding wire used in joining types 321 and 347 grades of stainless steel. The addition of columbium to this alloy reduces the possibility of chromium carbide precipitation and consequent intergranular corrosion.
| Typical ER347/ER347L Wire Chemistry | ||||
|---|---|---|---|---|
| C | 0.08% | |||
| Cr | 19.0-21.5% | |||
| Ni | 9.0-11.0% | |||
| Mo | 0.75% | |||
| Mn | 1.0-2.5% | |||
| Si | 0.30-0.65% | |||
| P | 0.03% | |||
| S | 0.03% | |||
| Cu | 0.75% | |||
| Nb | 10xCmin/1.0max | |||
| Typical ER347/ER347L Mechanical Properties (as welded) | |
|---|---|
| Yield Strength | 57 ksi |
| Tensile Strength | 86 ksi |
| Elongation | 35% min |
| Available Diameters & Operating Range | |
|---|---|
| 0.035" | 60-90A |
| 0.045" | 80-110A |
| 1/16" | 90-130A |
| 3/32" | 120-175A |
| 1/8" | 150-220A |
| 5/32" | 170-350A |
| Blue Demon Approx. Rods Per Poung | |||||||
| Alloy | 0.35" | 0.45" | 1/16" | 3/32" | 1/8" | 5/32" | 3/16" |
|---|---|---|---|---|---|---|---|
| ER308L/LSI | 103 EA | 62 EA | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| ER309L/LSI | 103 EA | 62 EA | 31 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| ER312 | 103 EA | 62 EA | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| ER316L/LSI | 103 EA | 62 EA | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| ER4043 | N/A | 170 EA | 94 EA | 42 EA | 23 EA | 15 EA | 11 EA |
| ER5356 | N/A | 170 EA | 96 EA | 42 EA | 24 EA | 15 EA | 11 EA |
| ER70S2 | 103 EA | 62 EA | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| ER80S-D2 | 103 EA | 62 EA | 32 EA | 14 EA | 7 EA | 5 EA | 4 EA |
| ERAZ61A | N/A | N/A | 156 EA | 56 EA | 34 EA | N/A | N/A |
| ERAZ92A | N/A | N/A | 156 EA | 56 EA | 34 EA | N/A | N/A |
| ERNI99 | N/A | N/A | 28 EA | 13 EA | 7 EA | 4 EA | N/A |
| ERTI-2 | 176 EA | 110 EA | 56 EA | 25 EA | 14 EA | N/A | N/A |
| RBCUZN-C (BARE) | N/A | N/A | 28 EA | 13 EA | 7 EA | 5 EA | 4 EA |
| RBCUZN-C (COATED) | N/A | N/A | 43 EA (18") | 11 EA | 6 EA | 5 EA | 3 EA |
| R45 | N/A | N/A | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| R60 | N/A | N/A | 32 EA | 14 EA | 8 EA | 5 EA | 4 EA |
| ERCUSI-A (SILBRZ) | 103 EA | 62 EA | 30 EA | 13 EA | 7 EA | 4 EA | N/A |
| Recommended Tungsten Electrodes | ||||
| Alloy | Thickness | Current | Tungsten | Gas |
|---|---|---|---|---|
| Aluminum | All | AC | Pure or Zirconiated | Ar or Ar/He |
| Aluminum | > 1/8" thick | DCEN | Thoriated | Ar or Ar/He |
| Aluminum | < 1/8" thick | DCEP | Thoriated or Zirconiated | Argon |
| Copper, Copper Alloys | All | DCEN | Thoriated | Ar or Ar/He |
| Copper, Copper Alloys | < 1/8" thick | AC | Pure or Zirconiated | Argon |
| Magnesium Alloys | All | AC | Pure or Zirconiated | Argon |
| Magnesium Alloys | < 1/8" thick | DCEP | Thoriated or Zirconiated | Argon |
| Nickel, Nickel Alloys | All | DCEN | Thoriated | Argon |
| Plain Carbon, Low Alloy Steels | All | DCEN | Pure or Zirconiated | Ar or Ar/He |
| Plain Carbon, Low Alloy Steels | < 1/8" thick | AC | Thoriated | Argon |
| Stainless Steel | All | DCEN | Thoriated | Ar or Ar/He |
| Stainless Steel | < 1/8" thick | AC | Pure or Zirconiated | Argon |
| Titanium | All | DCEN | Thoriated | Argon |
| Zirconium | All | DCEN | Thoriated | Argon |
