Dixon Buttweld End Caps (Unpolished)

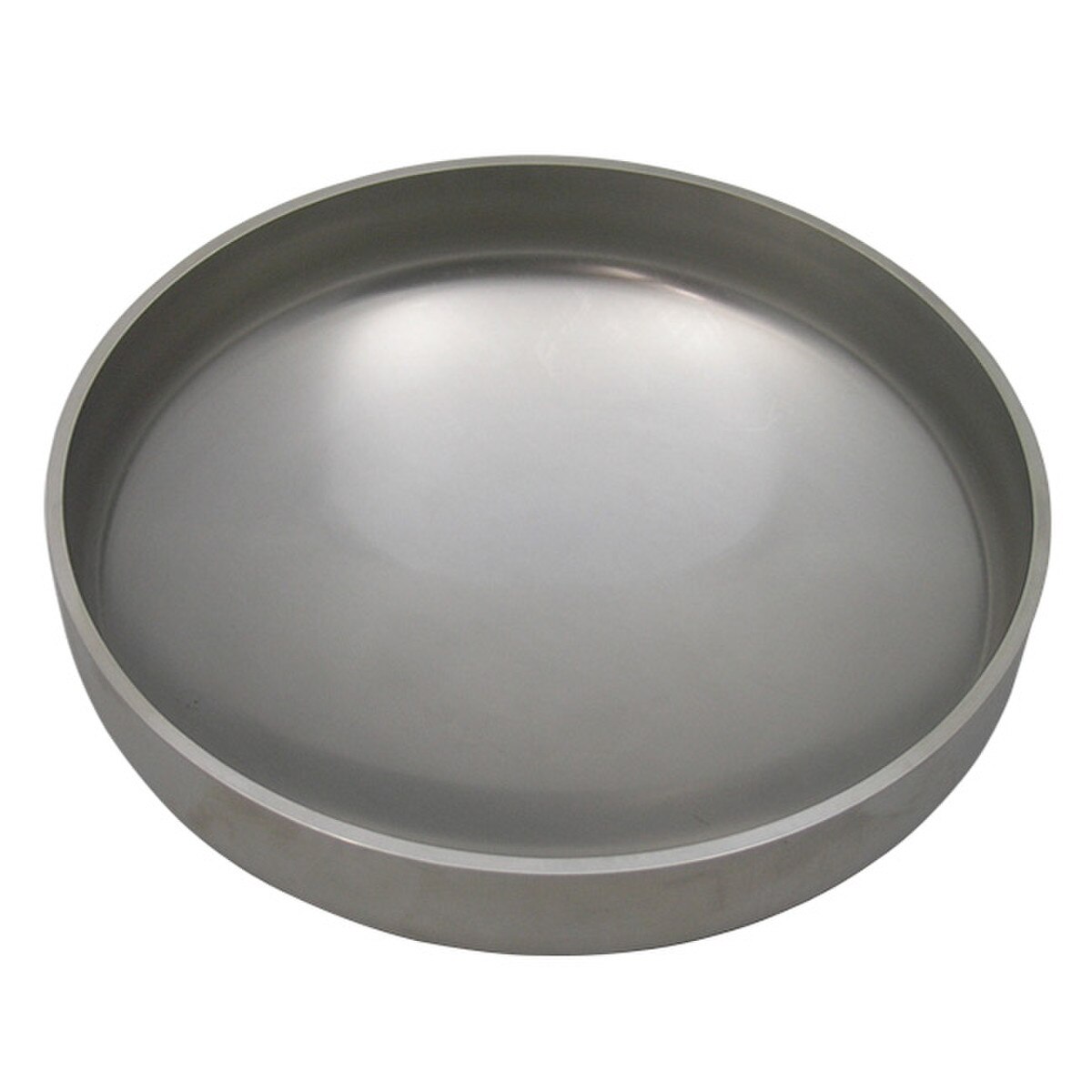

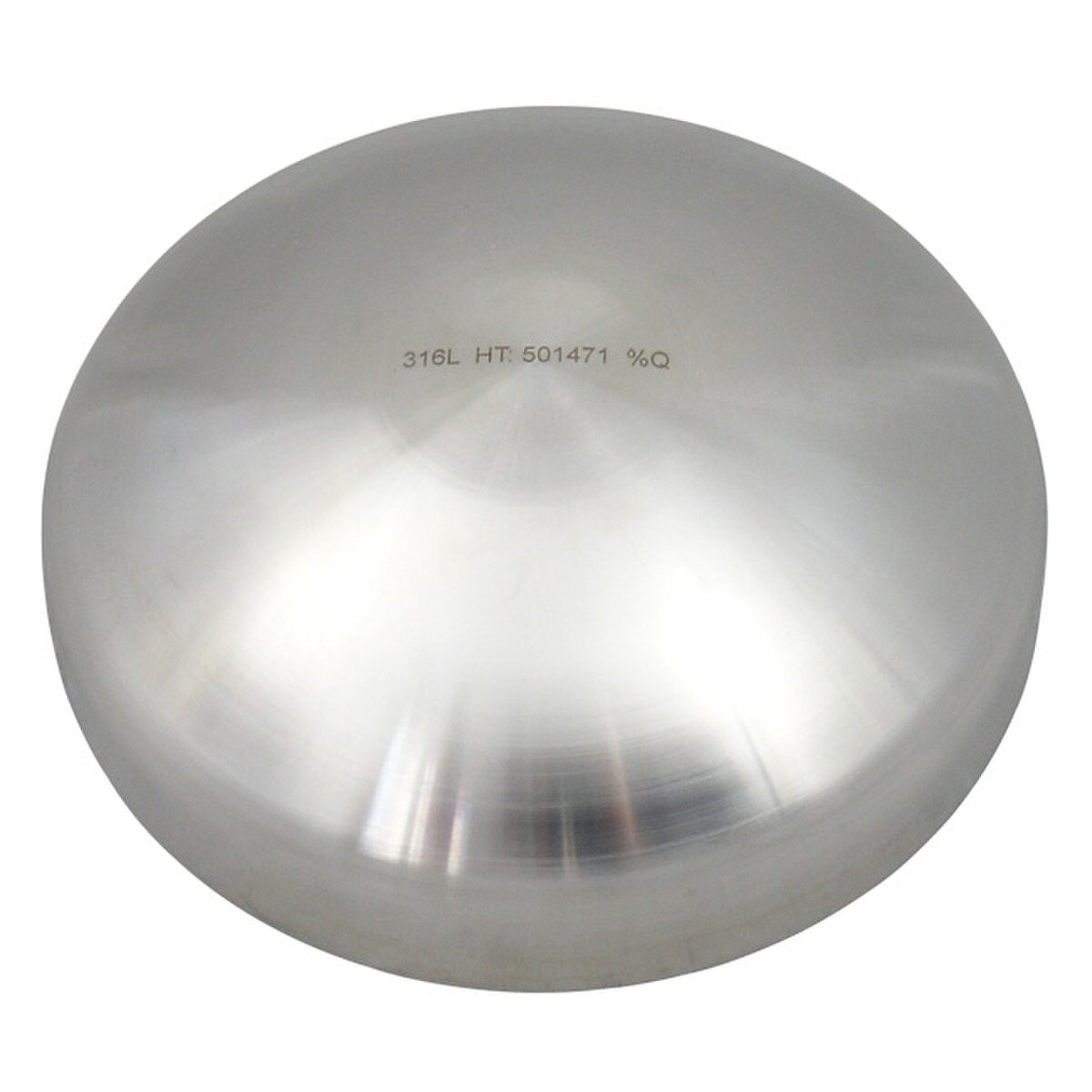

Dixon Sanitary Unpolished Stainless Steel End Caps are a buttweld cap for closing off the ends of tubing. Manufactured with a slight contour that comes to an inflection at the center of the fitting for good drainability should a bung or port be installed here. Available in 304 Stainless Steel or 316L Stainless Steel up to 8 inches in diameter. All fittings come with a lightly polished outer surface and mill inner surface. These fittings do not carry a 3A certification. Use to easily fabricate bubblers, cylinders, desiccant chambers, solvent recovery tanks, catch cans, fluid reservoirs and anything else you dream up!
 | |||
| Part Number | Tube OD | A | Material |
|---|---|---|---|
| B16W-G100 | 1" | 0.375" | 304 Stainless Steel |
| B16W-G150 | 1-1/2" | 0.562" | 304 Stainless Steel |
| B16W-G200 | 2" | 0.750" | 304 Stainless Steel |
| B16W-G250 | 2-1/2" | 1.000" | 304 Stainless Steel |
| B16W-G300 | 3" | 1.250" | 304 Stainless Steel |
| B16W-G400 | 4" | 1.500" | 304 Stainless Steel |
| B16W-G600 | 6" | 1.875" | 304 Stainless Steel |
| B16W-G800 | 8" | 2.500" | 304 Stainless Steel |
| B16W-R50 | 1/2" | 0.250" | 316L Stainless Steel |
| B16W-R75 | 3/4" | 0.312" | 316L Stainless Steel |
| B16W-R100 | 1" | 0.375" | 316L Stainless Steel |
| B16W-R150 | 1-1/2" | 0.562" | 316L Stainless Steel |
| B16W-R200 | 2" | 0.750" | 316L Stainless Steel |
| B16W-R250 | 2-1/2" | 1.000" | 316L Stainless Steel |
| B16W-R300 | 3" | 1.250" | 316L Stainless Steel |
| B16W-R400 | 4" | 1.500" | 316L Stainless Steel |
| B16W-R600 | 6" | 1.875" | 316L Stainless Steel |
| B16W-R800 | 8" | 2.500" | 316L Stainless Steel |
