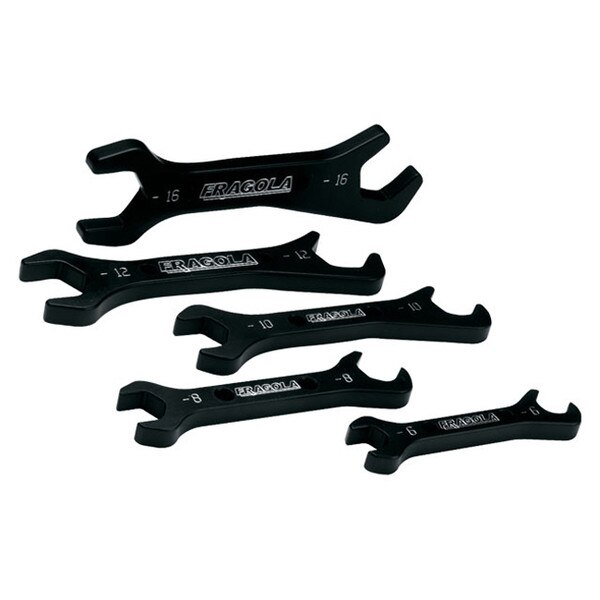

Fragola Double Open End AN Wrench Set, -6 thru -16 AN (5 Wrenches)
Fragola's Double Open End AN Wrenches are made of heat-treated aluminum, for the best compatibility with aluminum fittings and to prevent accidentally galling the finish of your hose ends. These wrenches work great for tightening AN hose ends in confined spaces and feature two different angles on the openings for ease of use. The wrenches also come pre-drilled for storage on a rack, thus freeing up space in your toolbox.
Sold as a set of (5) wrenches. Includes -6, -8, -10, -12, and -16 AN sized wrenches.
| AN Threads | ||||
| AN Size | Hex Nut Size | Tube Diameter | Thread Size (SAE) | Max Torque (ft-lb) |
| -2 | - | 1/8" | 5/16-24 | - |
| -3 | 1/2" | 3/16" | 3/8-24 | 8.75 |
| -4 | 9/16" | 1/4" | 7/16-20 | 11.5 |
| -6 | 11/16" | 3/8" | 9/16-18 | 16.25 |
| -8 | 7/8" | 1/2" | 3/4-16 | 29 |
| -10 | 1" | 5/8" | 7/8-14 | 35 |
| -12 | 1-1/4" | 3/4" | 1 1/16-12 | 45 |
| -16 | 1-1/2" | 1" | 1 5/16-12 | 70 |
| -20 | 1-7/8" | 1-1/4" | 1 5/8-12 | 85 |
| -24 | - | 1-1/2" | 1 7/8-12 | - |
| -28 | - | 1-3/4" | 2 1/4-12 | - |
| -32 | - | 2" | 2 1/2-12 | - |
