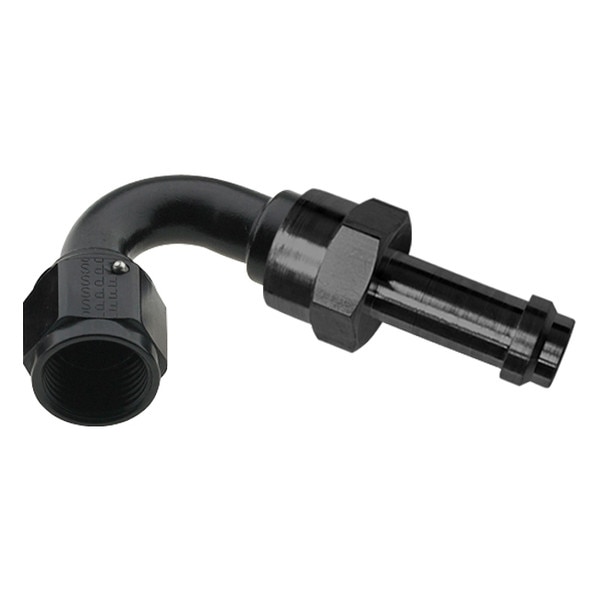

Fragola EZ Street Hose Ends - 150 Degree
Fragola Performance System EZ Street 150 Degree Hose Ends are designed for use with E10, E85, E98, Diesel, Methanol or any other ethanol blends. All hose ends are manufactured at Fragola's plant in Connecticut to SAE standards, ensuring these hose end will work with any SAE 30R9 or 30R10 hose. These push style hose ends feature a single hose retention barb and a bright dip black anodizing for long lasting looks and performance. EZ Street hose ends feature a double-swivel design, allowing ends to be clocked after installation. Finish of your installation with a set of push lock clamps to keep ends secured to the hose.
| AN Threads | ||||
| AN Size | Hex Nut Size | Tube Diameter | Thread Size (SAE) | Max Torque (ft-lb) |
|---|---|---|---|---|
| -2 | - | 1/8" | 5/16-24 | - |
| -3 | 1/2" | 3/16" | 3/8-24 | 8.75 |
| -4 | 9/16" | 1/4" | 7/16-20 | 11.5 |
| -6 | 11/16" | 3/8" | 9/16-18 | 16.25 |
| -8 | 7/8" | 1/2" | 3/4-16 | 29 |
| -10 | 1" | 5/8" | 7/8-14 | 35 |
| -12 | 1-1/4" | 3/4" | 1 1/16-12 | 45 |
| -16 | 1-1/2" | 1" | 1 5/16-12 | 70 |
| -20 | 1-7/8" | 1-1/4" | 1 5/8-12 | 85 |
| -24 | - | 1-1/2" | 1 7/8-12 | - |
| -28 | - | 1-3/4" | 2 1/4-12 | - |
| -32 | - | 2" | 2 1/2-12 | - |
