Fragola Padded Line Clamps

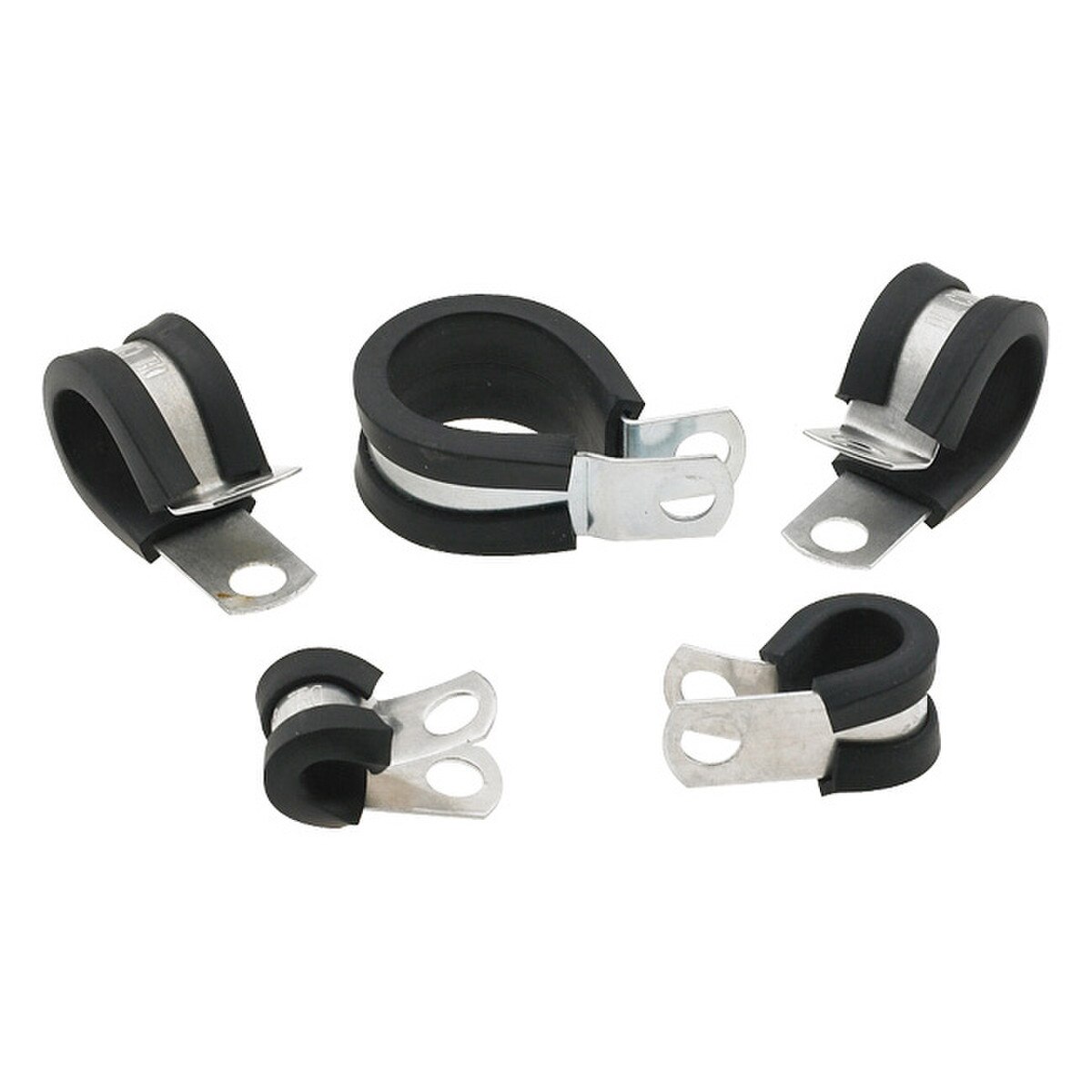

Fragola's Padded Line Clamps feature a lightweight aluminum clamp lined with a neoprene rubber padding around the band. These mounting clamps work great for securing and protecting loose AN hoses and small diameter tubing and line without damaging them.
| Clamp Fitment | ||
| Clamp Size | AN Size | Qty/Bag |
|---|---|---|
| 1/4" (0.250") | n/a | 10 pc |
| 3/8" (0.375") | n/a | 10 pc |
| 1/2" (0.500") | -4 AN | 10 pc |
| 5/8" (0.625") | -6 AN | 10 pc |
| 3/4" (0.750") | -8 AN | 10 pc |
| 7/8" (0.875") | -10 AN | 10 pc |
| 1" (1.000") | -12 AN | 5 pc |
| 1-1/4" (1.250") | -16 AN | 5 pc |
| 1-1/2" (1.500") | -20 AN | 5 pc |
| AN Threads | ||||
| AN Size | Hex Nut Size | Tube Diameter | Thread Size (SAE) | Max Torque (ft-lb) |
|---|---|---|---|---|
| -2 | - | 1/8" | 5/16-24 | - |
| -3 | 1/2" | 3/16" | 3/8-24 | 8.75 |
| -4 | 9/16" | 1/4" | 7/16-20 | 11.5 |
| -6 | 11/16" | 3/8" | 9/16-18 | 16.25 |
| -8 | 7/8" | 1/2" | 3/4-16 | 29 |
| -10 | 1" | 5/8" | 7/8-14 | 35 |
| -12 | 1-1/4" | 3/4" | 1 1/16-12 | 45 |
| -16 | 1-1/2" | 1" | 1 5/16-12 | 70 |
| -20 | 1-7/8" | 1-1/4" | 1 5/8-12 | 85 |
| -24 | - | 1-1/2" | 1 7/8-12 | - |
| -28 | - | 1-3/4" | 2 1/4-12 | - |
| -32 | - | 2" | 2 1/2-12 | - |
