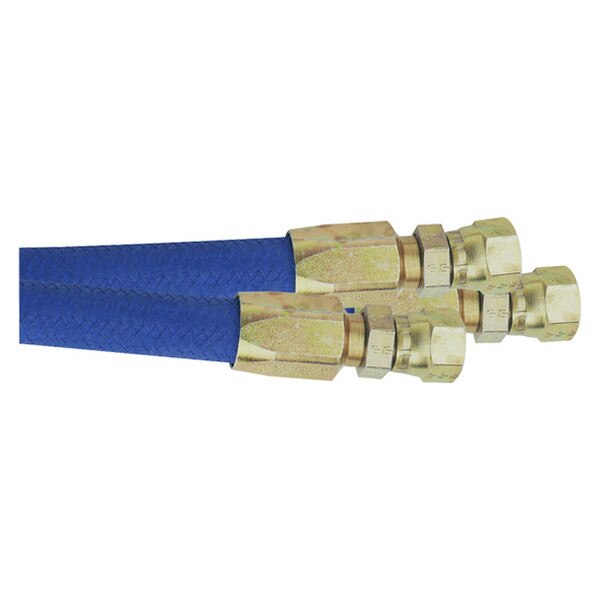

Fragola Power Steering Hose - Sold by the Foot
This item is priced and SOLD BY THE FOOT --- so buy as many continuous feet as you need!
Power steering systems pose their own unique set of problems, and the best way to manage the power steering system in your vehicle is with Fragola's Power Steering Hose and Power Steering Hose Fittings. The heart of Fragola's system is a specially designed three-braid hose that can withstand the pressure spikes caused by engine RPM, and by the loading of the wheels. Fragola Power Steering Line is rated at over 1750 psi for all sizes with burst pressures quadruple that. Power Steering Hose Ends are available in straight, 45 degree and 90 degree styles to construct custom power steering lines. All power steering fittings are constructed from zinc plated steel and are easy to assemble and reuse.
Fragola Power Steering Hose Features:
- Working pressures rated at over 1750 psi.
- 350 psi working pressure & 1400 psi burst pressure for -12 and -16 AN hose.
- -40° F to +300° F temperature range.
- One braid of bright corrosion resistant type 302 stainless steel wire reinforcement.
- Black braided nylon cover.
- Durable and attractive.
- Black rubber inner liner is compatible with oils, fuels, coolants and alcohols.
- Designed to be used with Fragola Power Steering Hose Ends.
Click to view the manufacturer recommended Power Steering Hose Cutting and Fitting Assembly Processes and Techniques.
Please note: Many people over tighten the aluminum fitting on the adapter, which distorts the 37 degree seat and may cause a leak. Both the threads and the seat surface should have a drop or two of oil to smooth the tightening process. Please reference the chart below for maximum torque specifications. Another method of tightening is to bring the nut to "hand tight" and then rotate it another 1/4 turn with the proper wrench.
| VMS Part # | Fragola Part # | AN Size | ID | OD | Working Pressure | Burst Pressure | Min Bend Radius |
|---|---|---|---|---|---|---|---|
| FRAHSE8500-06 | 850006 | -6 AN | 0.375" | 0.680" | 2250 psi | 9000 psi | 3.50" |
| FRAHSE8500-08 | 850008 | -8 AN | 0.406" | 0.770" | 2000 psi | 8000 psi | 3.50" |
| FRAHSE8500-10 | 850010 | -10 AN | 0.500" | 0.920" | 1750 psi | 7000 psi | 4.00" |
| AN Threads | ||||
| AN Size | Hex Nut Size | Tube Diameter | Thread Size (SAE) | Max Torque (ft-lb) |
|---|---|---|---|---|
| -2 | - | 1/8" | 5/16-24 | - |
| -3 | 1/2" | 3/16" | 3/8-24 | 8.75 |
| -4 | 9/16" | 1/4" | 7/16-20 | 11.5 |
| -6 | 11/16" | 3/8" | 9/16-18 | 16.25 |
| -8 | 7/8" | 1/2" | 3/4-16 | 29 |
| -10 | 1" | 5/8" | 7/8-14 | 35 |
| -12 | 1-1/4" | 3/4" | 1 1/16-12 | 45 |
| -16 | 1-1/2" | 1" | 1 5/16-12 | 70 |
| -20 | 1-7/8" | 1-1/4" | 1 5/8-12 | 85 |
| -24 | - | 1-1/2" | 1 7/8-12 | - |
| -28 | - | 1-3/4" | 2 1/4-12 | - |
| -32 | - | 2" | 2 1/2-12 | - |
