• Fragola PTFE Hose End - Replacement Aluminum Olives

Fragola PTFE Hose End - Replacement Aluminum Olives

(0)No Reviews yet

Fragola Steel Pipe and AN Adapters and Fittings may look like simple devices, but Fragola takes them very seriously. They have spent several years researching, testing, and retesting to perfect what they feel are the finest adapters and fittings available.

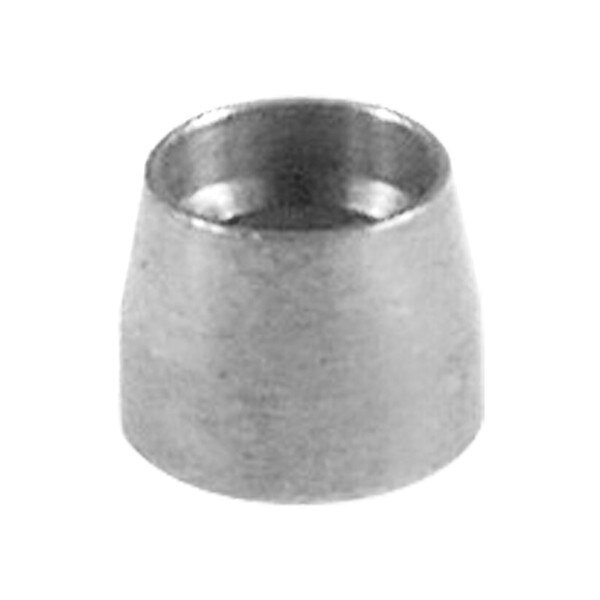

PTFE Hose and Fittings may be used for brake lines, gauge lines, power steering or automotive air conditioning. These reusable hose ends feature a miniature "olive" that retains the hose inside of the fitting. By replacing this "olive" the hose end may be reused over and over.

Many people over tighten the aluminum fitting on the adapter, which distorts the 37 degree seat, and may cause a leak. Both the threads and the seat surface face should have a drop or two of oil to smooth the tightening process. Please reference the chart on the specifications tab for maximum torque specifications. Another method of tightening is to bring the nut to "hand tight" and then rotate it another 1/4 turn with the proper wrench.

AN Threads
AN SizeHex Nut
Size
Tube
Diameter
Thread
Size
(SAE)
Max Torque
(ft-lb)
-2-1/8"5/16-24-
-31/2"3/16"3/8-248.75
-49/16"1/4"7/16-2011.5
-611/16"3/8"9/16-1816.25
-87/8"1/2"3/4-1629
-101"5/8"7/8-1435
-121-1/4"3/4"1 1/16-1245
-161-1/2"1"1 5/16-1270
-201-7/8"1-1/4"1 5/8-1285
-24-1-1/2"1 7/8-12-
-28-1-3/4"2 1/4-12-
-32-2"2 1/2-12-
