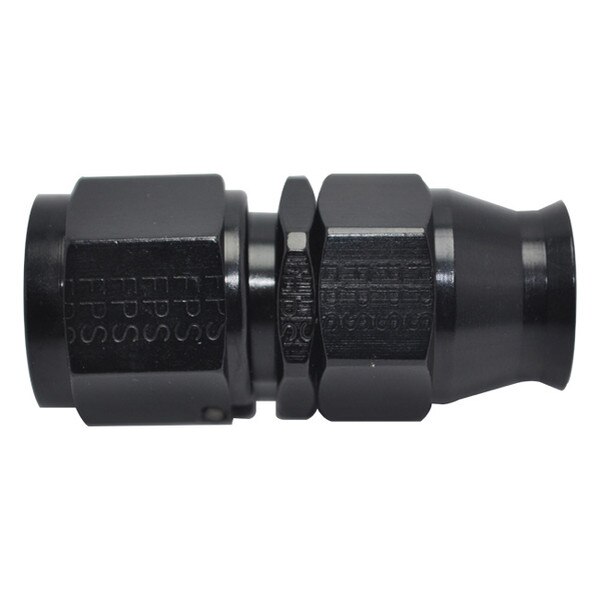

Fragola Real Street PTFE Hose End - Straight
Fragola's new line of aluminum, reusable hose ends for PTFE lined hose are a direct fit for Fragola PTFE-lined hose and eliminate the permeation issues common with aftermarket racing hose. A unique "double-swivel" design allows for clocking adjustment after installation. The hose ends are available in AN-6 through AN-12 sizes in straight, 30, 60, 90, 120, 150 and 180 degree bent tubes. This fitting is finished with an attractive "bright-dip" anodized black finish.
Fragola Real Street PTFE Hose Ends Feature:
- Designed to be used with Fragola's line of PTFE hoses
- Eliminates the gas permeation smell common in aftermarket hose
- Unique "double-swivel" design allows adjustment after installation
- All Fragola Hose Ends are manufactured from aerospace quality aluminum and machined to mil spec tolerance
- Bright dipped anodizing for a show quality finish.
- Available in -6 AN thru -12 AN Sizes
- Available in Straight, 30 Degree, 60 Degree, 90 Degree, 120 Degree, 150 Degree, 180 Degree
Click to view the manufacturer recommended PTFE Hose Cutting and Fitting Asse(more...)
| AN Threads | ||||
| AN Size | Hex Nut Size | Tube Diameter | Thread Size (SAE) | Max Torque (ft-lb) |
|---|---|---|---|---|
| -2 | - | 1/8" | 5/16-24 | - |
| -3 | 1/2" | 3/16" | 3/8-24 | 8.75 |
| -4 | 9/16" | 1/4" | 7/16-20 | 11.5 |
| -6 | 11/16" | 3/8" | 9/16-18 | 16.25 |
| -8 | 7/8" | 1/2" | 3/4-16 | 29 |
| -10 | 1" | 5/8" | 7/8-14 | 35 |
| -12 | 1-1/4" | 3/4" | 1 1/16-12 | 45 |
| -16 | 1-1/2" | 1" | 1 5/16-12 | 70 |
| -20 | 1-7/8" | 1-1/4" | 1 5/8-12 | 85 |
| -24 | - | 1-1/2" | 1 7/8-12 | - |
| -28 | - | 1-3/4" | 2 1/4-12 | - |
| -32 | - | 2" | 2 1/2-12 | - |
