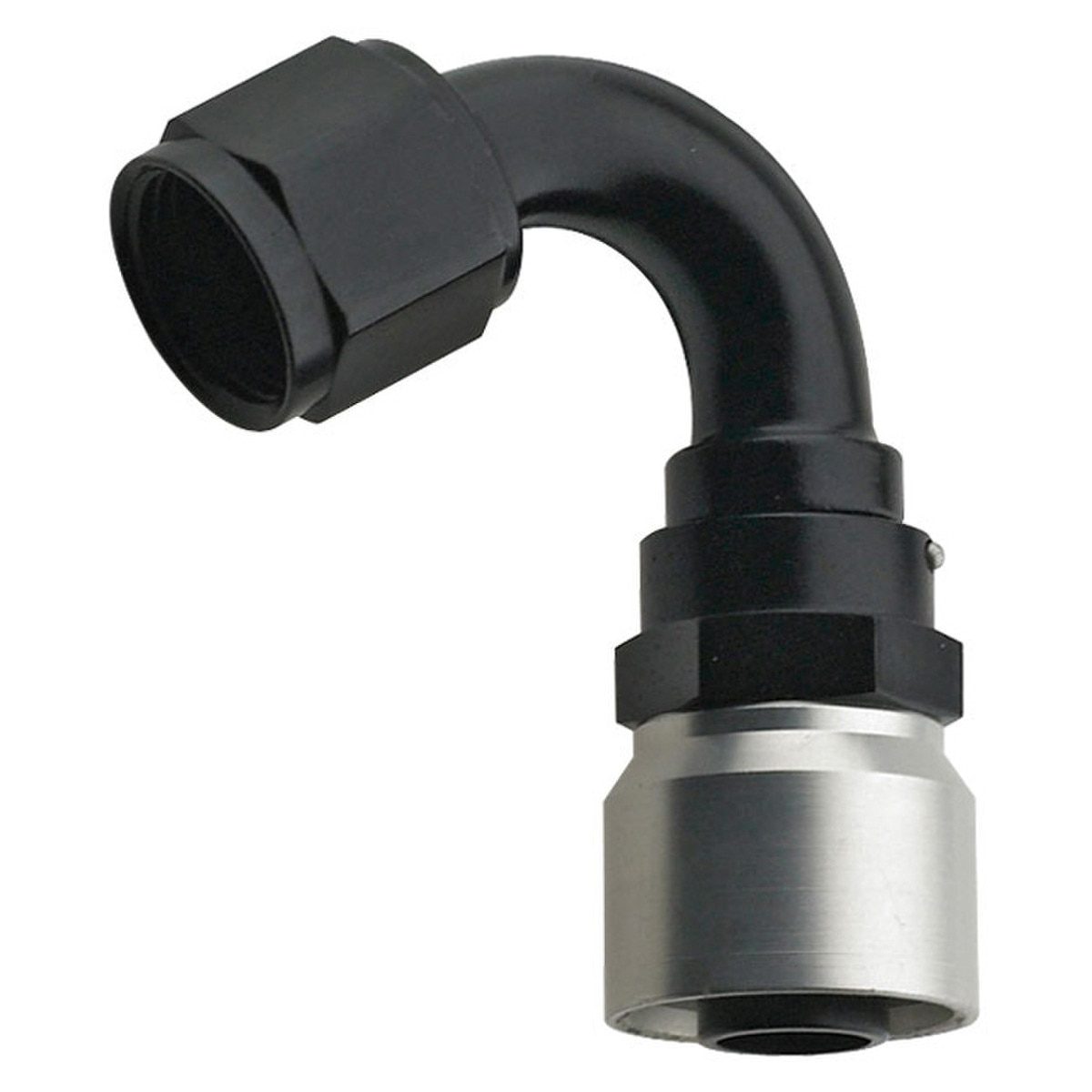

Fragola Sport-Crimp Hose End - 120 Degree
Fragola Sport-Crimp Series Race Hose Ends share the same high quality design components as our 3000 Series Race Hose Ends. They feature a crimp collar that threads onto the hose end body. This assures the user of a perfect crimp connection every time. These hose ends are also adjustable in the field, due to Fragola's unique "double swivel" design.
The greatest benefit of these Sport Crimp hose ends is the ability to use a more economical hose, such as Fragola 3000 Series Stainless Braided Race Hose or Fragola 840000 Series Black Nylon Race Hose.
| AN Threads | ||||
| AN Size | Hex Nut Size | Tube Diameter | Thread Size (SAE) | Max Torque (ft-lb) |
|---|---|---|---|---|
| -2 | - | 1/8" | 5/16-24 | - |
| -3 | 1/2" | 3/16" | 3/8-24 | 8.75 |
| -4 | 9/16" | 1/4" | 7/16-20 | 11.5 |
| -6 | 11/16" | 3/8" | 9/16-18 | 16.25 |
| -8 | 7/8" | 1/2" | 3/4-16 | 29 |
| -10 | 1" | 5/8" | 7/8-14 | 35 |
| -12 | 1-1/4" | 3/4" | 1 1/16-12 | 45 |
| -16 | 1-1/2" | 1" | 1 5/16-12 | 70 |
| -20 | 1-7/8" | 1-1/4" | 1 5/8-12 | 85 |
| -24 | - | 1-1/2" | 1 7/8-12 | - |
| -28 | - | 1-3/4" | 2 1/4-12 | - |
| -32 | - | 2" | 2 1/2-12 | - |
