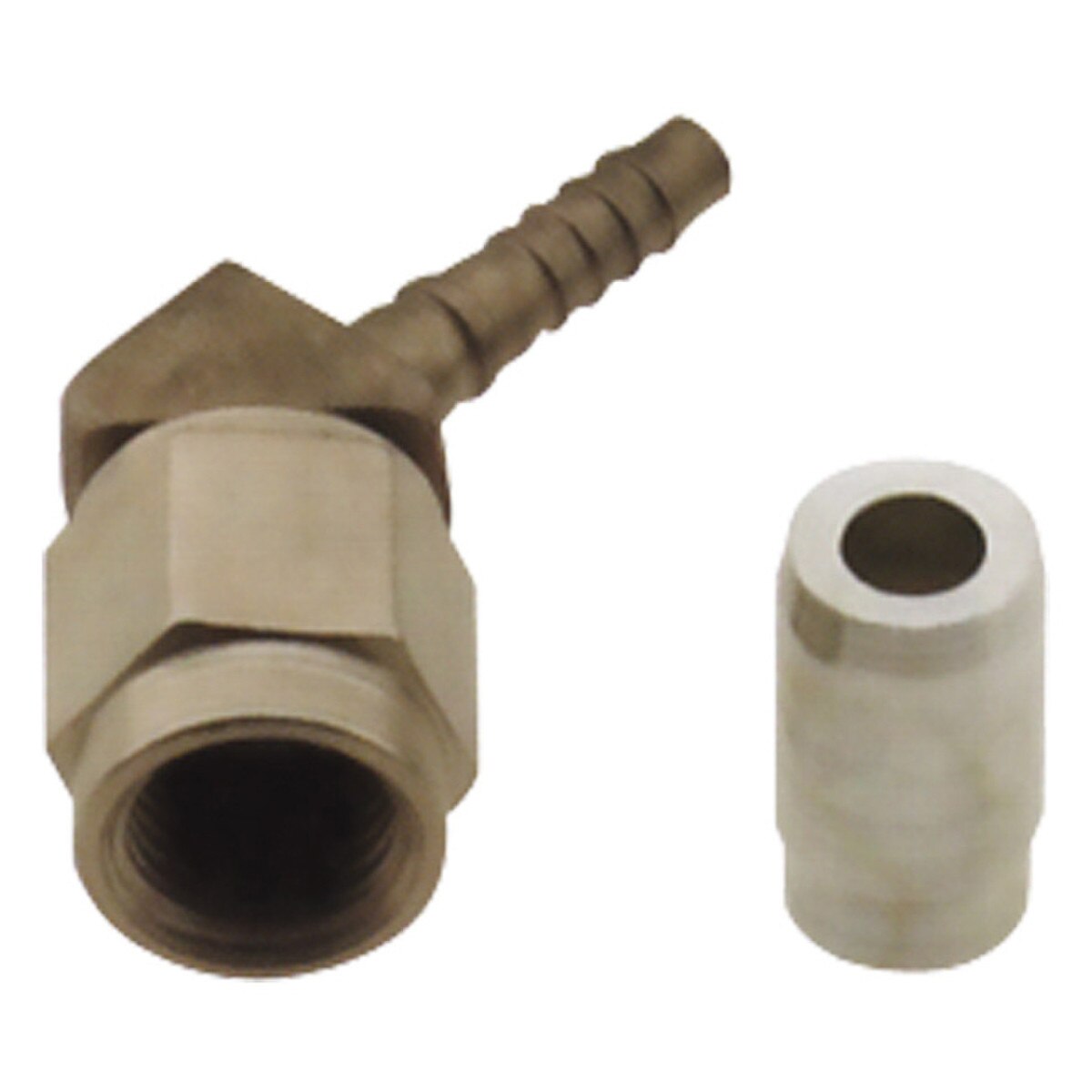

Fragola Steel AN Crimp Fittings - 45 Degree Forged w/ Collar & Pin - Bag of 20
You can build your own line assemblies, at your location with the use of Fragola Crimp Fittings. The D-100 Crimp Machine, or any other crimper with an adjustable crimp diameter will work fine. As a precaution, be sure to pressure test your hoses assemblies prior to putting in service.
These fittings are designed to be used with Fragola's PTFE Lined Stainless braided hose only. Hoses from other manufacturers may have a different wall thickness and will not have the desired results, ending in hose failure. Be certain to clean inside the hose assembly prior to installation.
| AN Threads | ||||
| AN Size | Hex Nut Size | Tube Diameter | Thread Size (SAE) | Max Torque (ft-lb) |
|---|---|---|---|---|
| -2 | - | 1/8" | 5/16-24 | - |
| -3 | 1/2" | 3/16" | 3/8-24 | 8.75 |
| -4 | 9/16" | 1/4" | 7/16-20 | 11.5 |
| -6 | 11/16" | 3/8" | 9/16-18 | 16.25 |
| -8 | 7/8" | 1/2" | 3/4-16 | 29 |
| -10 | 1" | 5/8" | 7/8-14 | 35 |
| -12 | 1-1/4" | 3/4" | 1 1/16-12 | 45 |
| -16 | 1-1/2" | 1" | 1 5/16-12 | 70 |
| -20 | 1-7/8" | 1-1/4" | 1 5/8-12 | 85 |
| -24 | - | 1-1/2" | 1 7/8-12 | - |
| -28 | - | 1-3/4" | 2 1/4-12 | - |
| -32 | - | 2" | 2 1/2-12 | - |
