Furick Cup FUPA #12 Screen Install Tool and 2 Replacement Diffusers, 1/8" (3.2mm)

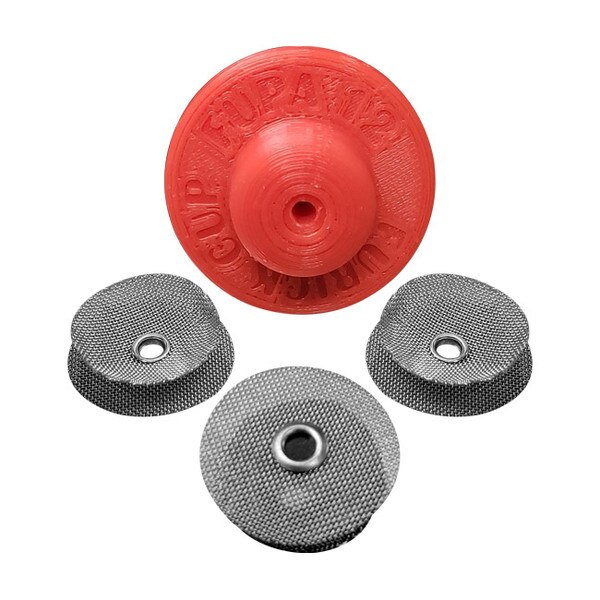

This kit contains the Furick Cup FUPA #12/Mooseknuckle #14 Screen Install Tool and 3 replacement 1/8" (3.2mm) diffuser screens for the FUPA #12/Mooseknuckle #14 welding cups, to refurbish your welding cups back to "like new" condition. The tool is precision machined from PVC for a slick finish, simplicity, and durability. Installing the screens is a breeze, just following these 3 simple steps.
- Step 1 – Install the empty Glass or Ceramic Cup on your torch with a 1/8" tungsten installed.
- Step 2 – Install the screen over the Tungsten, cupped side first.
- Step 3 – Slide on plastic tool in and evenly apply pressure to the side flange of tool, with a little pressure the screen should seat in the Cup perfectly.
Note: You want the screen to look like an hour glass when installed with the screens sealing against the sidewalls of the glass/ceramic.
Note: You may have to Cup the screen with your fingers more if it snags on the Ceramic.
Furick Cup Sizing Chart | ||||
| Cup | Size | CFH | Polarity | Material Options |
|---|---|---|---|---|
| Ally5 | #5 | 15-20 CFH | AC/DC | Glass Only |
| #8 Pro | #8 | 15-20 CFH | AC/DC | Glass or Ceramic |
| Jazzy | #10 | 20-25 CFH | DC | Glass or Ceramic |
| FUPA | #12 | 25-30 CFH | DC | Glass or Ceramic |
| Moose Knuckle | #14 | 25-30 CFH | DC | Glass or Ceramic |
| BBW | #16 | 30-35 CFH | DC | Glass or Ceramic |
| BBW Cippy | #16 | 30-40 CFH | DC | Thermoplastic |
| BBWSG | #16 | 30-40 CFH | DC | Glass or Ceramic |
| SSBBW | #20 | 35-40 CFH | DC | Glass/Ceramic Hybrid |
