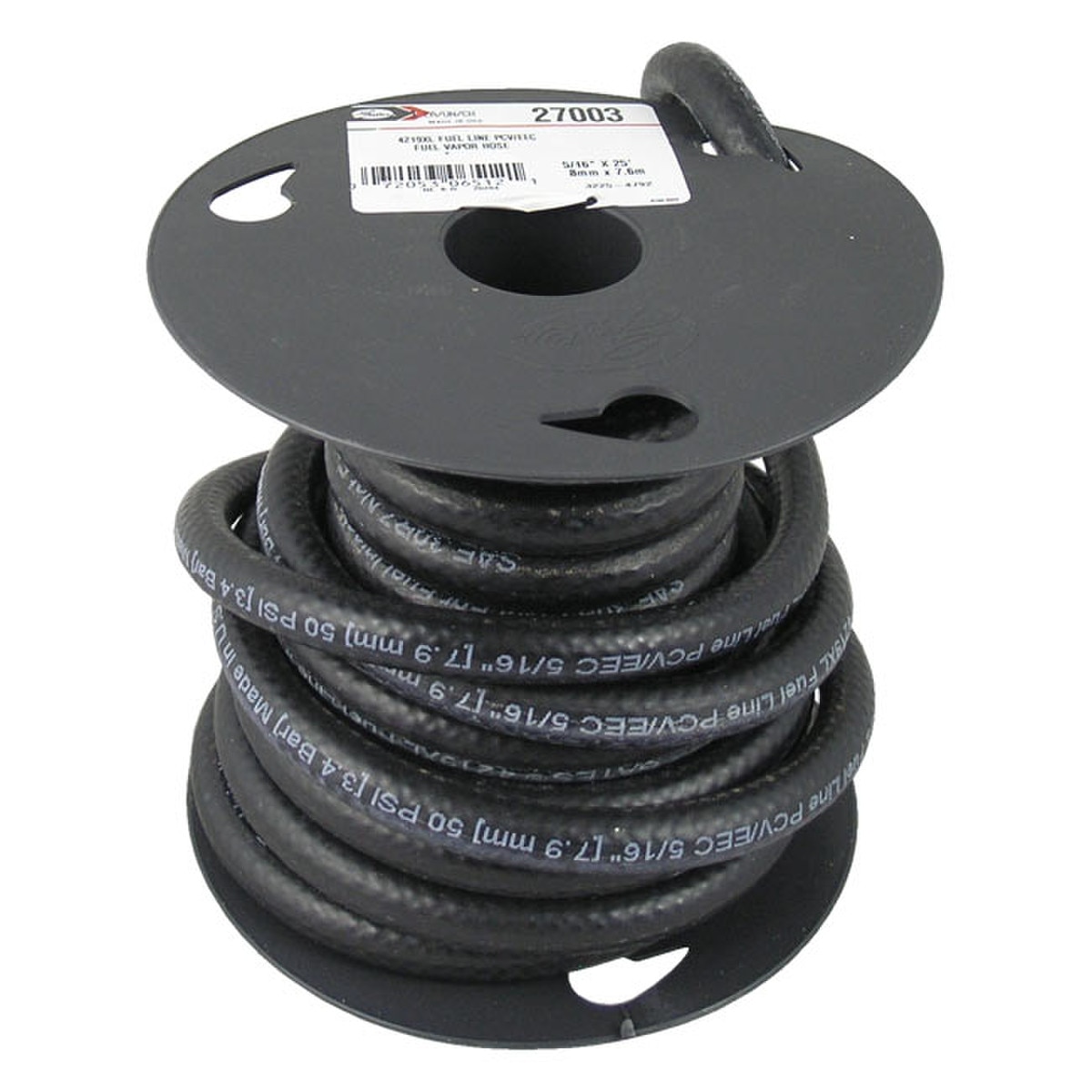

Gates PCV/EEC Fuel Vapor Hose
Gates® Safety Stripe II Fuel Hose is multi-purpose hose for use on return fuel lines, PCV, EEC Systems, and for fuel return hose connections on diesel fuel injection systems. Gates PCV/EEC Hose is approved for use with leaded and unleaded gasoline, diesel and gasoline blends of ethanol (E85), methanol and ethers (up to the legal limits allowed by the EPA).
Caution: Do not use for pressure lines on fuel injected engines or for cooling system applications.
Gates PVC/EEC Hose Features:
- Spiral reinforced construction
- Nitrile tube
- NBR-PVC cover
- Oil resistant cover resists the effects of high heat and ozone found in engine compartments
- Meets SAE 30R6 and 30R7
- Vacuum rating of 24 inHg for sizes less than 1/2" ID (ambient temps)
- Vacuum rating of 10 inHg for sizes 1/2" to 3/4" ID (ambient temps)
- -40°F to 257°F (-40°C to 125°C) with gasoline blends

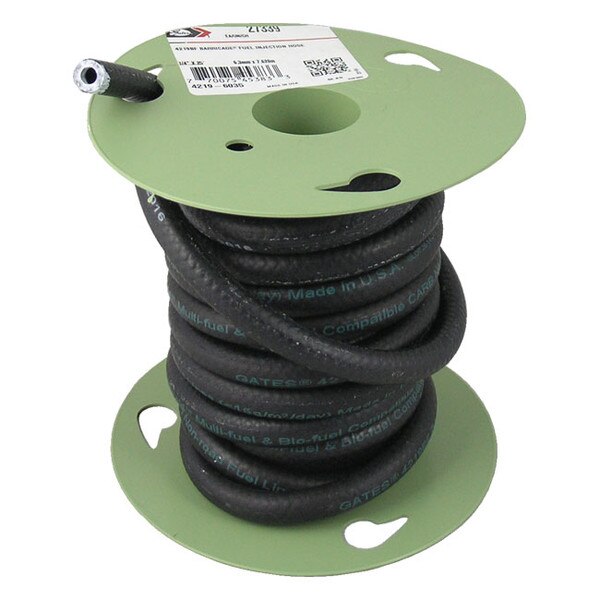

- Use Barricade Fuel Injection hose for fuel injection applications
- Intended for use with fuels where MTBE concentrations are no greater than 15% by volume
- Available in 25' or 250' rolls
| Gates # | Hose ID | Hose OD | Length | Working Pressure |
|---|---|---|---|---|
| 27000 | 1/8" | 5/16" | 25' | 50 psi |
| 27001 | 3/16" | 13/32" | 25' | 50 psi |
| 27002 | 1/4" | 1/2" | 25' | 50 psi |
| 27003 | 3/16" | 9/16" | 25' | 50 psi |
| 27004 | 3/8" | 5/8" | 25' | 50 psi |
| 27005 | 7/16" | 47/64" | 25' | 35 psi |
| 27006 | 1/2" | 25/32" | 25' | 35 psi |
| 27008 | 5/8" | 15/16" | 25' | 35 psi |
| 27010 | 3/4" | 1-1/8" | 25' | 35 psi |
| 27099 | 1/8" | 5/16" | 250' | 50 psi |
| 27098 | 3/16" | 13/32" | 250' | 50 psi |
| 27068 | 1/4" | 1/2" | 250' | 50 psi |
| 27069 | 3/16" | 9/16" | 250' | 50 psi |
| 27070 | 3/8" | 5/8" | 250' | 50 psi |
| 27071 | 7/16" | 47/64" | 250' | 35 psi |
| 27019 | 1/2" | 25/32" | 250' | 35 psi |
| 27020 | 5/8" | 15/16" | 250' | 35 psi |
| 27021 | 3/4" | 1-1/8" | 250' | 35 psi |
