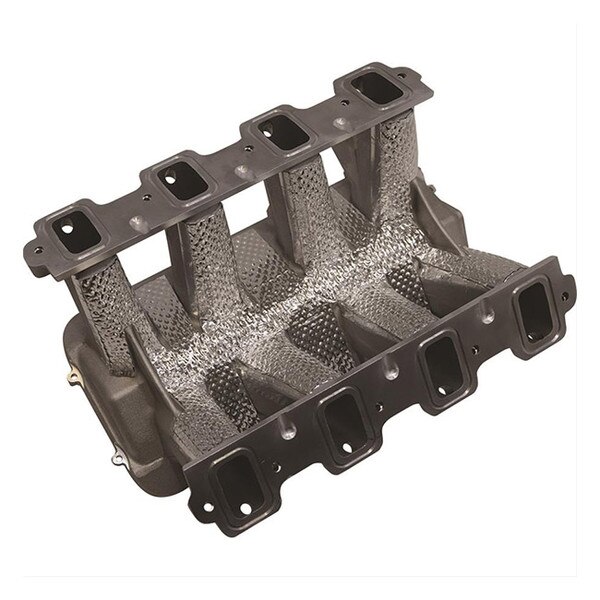

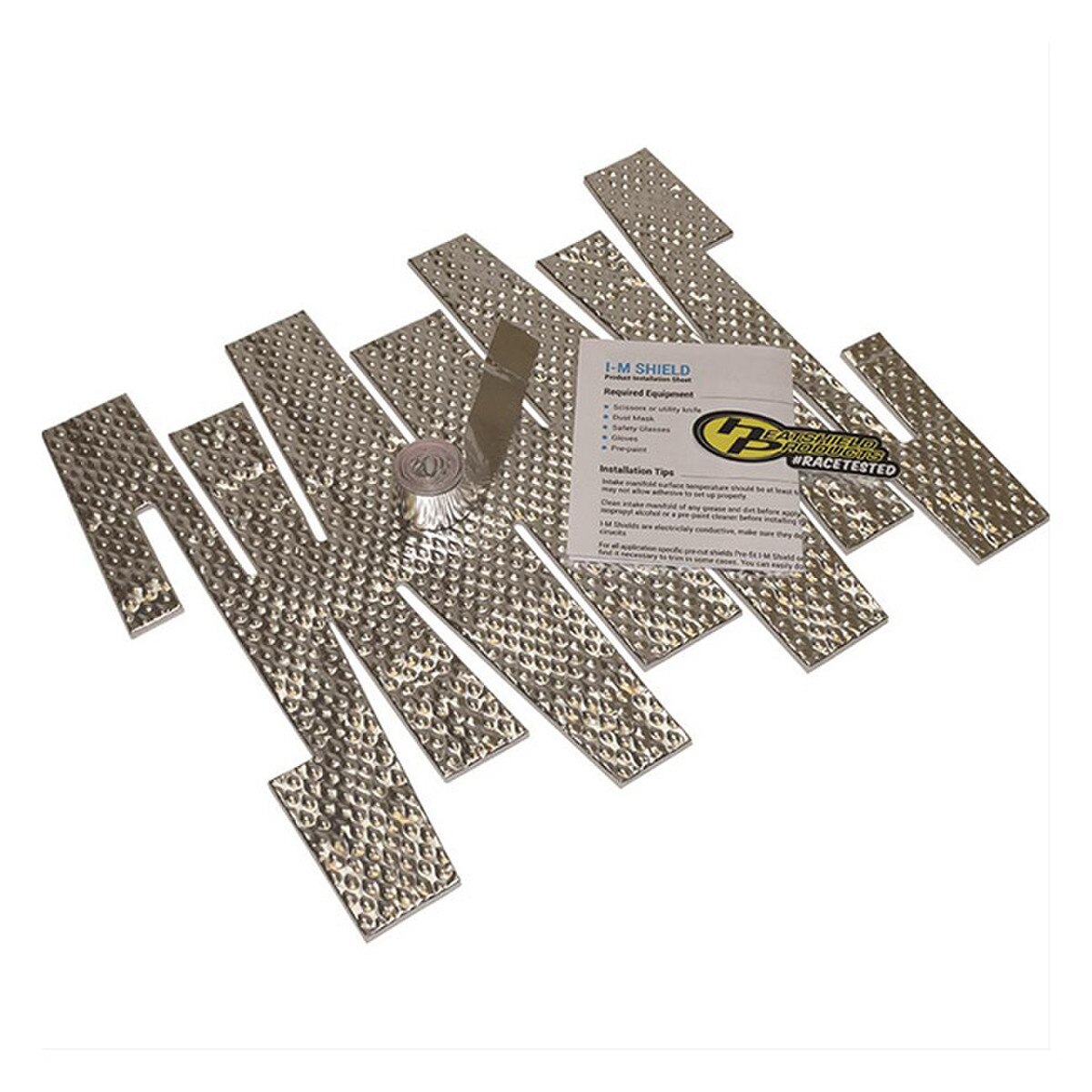

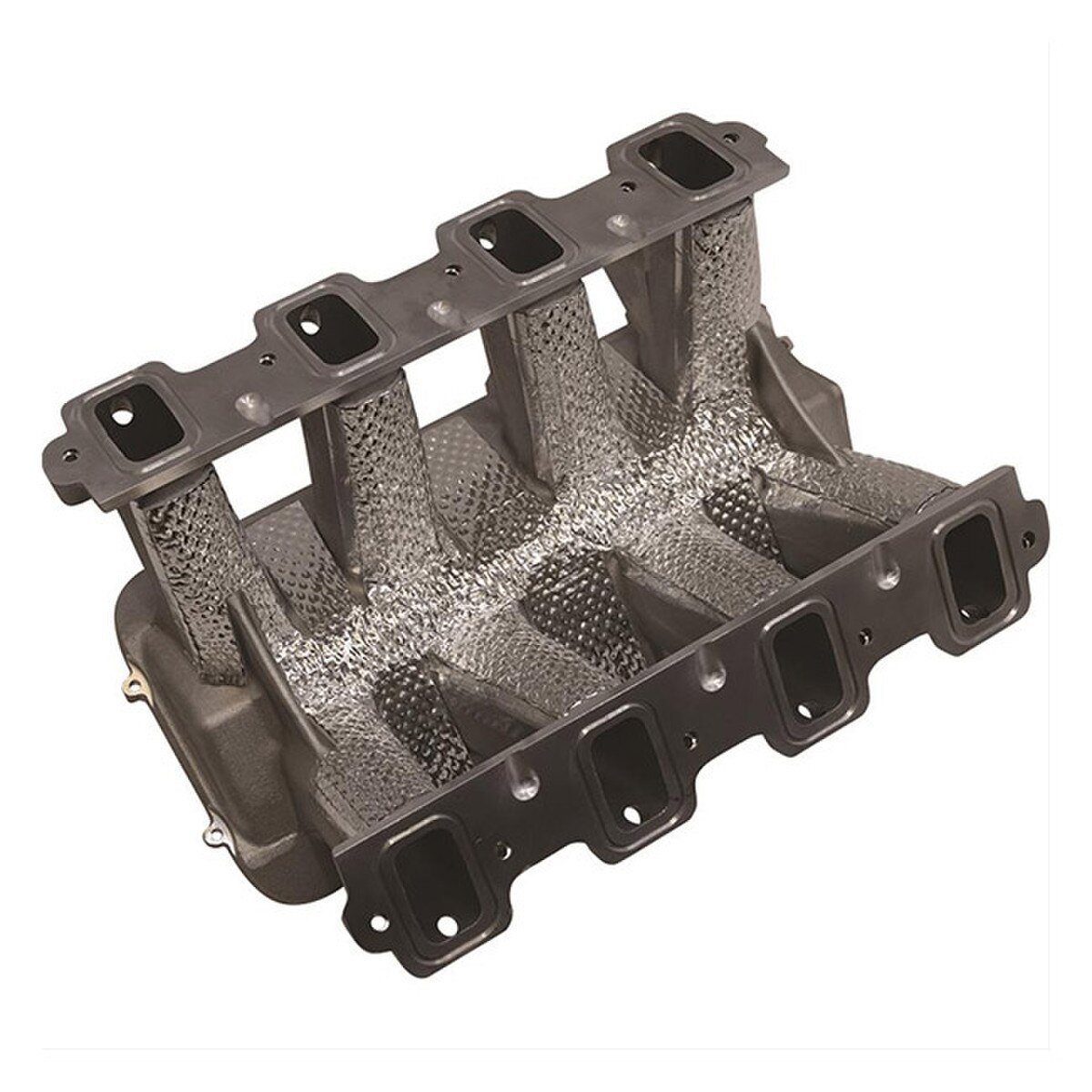

I-M Shield significantly reduces the amount of heat transfer from the top of the engine to the intake manifold, helping to reduce air-intake temperatures and increase horsepower. Lower air-intake manifold temperatures create a denser air/fuel mixture, creating more power. Heavy-duty adhesive will stick to any clean, semi-smooth surface. Simply degrease the surface, wipe with pre-paint cleaner or isopropyl alcohol, let it dry, then firmly press the I-M Shield onto the underside of the intake manifold. Use the provided edging tape to finish the installation of this intake manifold heat shield. I-M Shield is available pre-cut for certain applications and in a universal kit that may be trimmed for a custom fit. Think of I-M Shield as an intercooler for your intake manifold, reducing the temperature of the air/fuel inlet charge for higher density and more power. Patent Pending.
Features:

• Withstands 1100 degrees F radiant continuous
• Best dollar per RWHP around
• Adhesive good for 300 degrees F
• Lowers intake temperatures
• Application: Holley LS Hi-Ram (All)
• Operational Temperature: 1100 Degrees F
• Peak Temperature (30 seconds or less): 2000 Degrees F
• Color: Silver/Aluminum
• Material: Aluminum/Fiberglass
• Made in the USA
• Sold As A Kit

Installation Tips:

• Clean surface before installation
• Wipe with pre-paint cleaner
• Radiant heat barrier requires 1 Inch of airspace
• Not designed for direct contact

Warnings:

• Always wear safety glasses
• Dust mask, gloves and long sleeves are recommended when handling this product
• Caution! This material is electrically conductive
• Be sure to insulate any terminals that might come in contact with this product
