icengineworks 1500NP Series PRO Full System turbo manifold modeling systems include all three stages for design, modeling, cutting, and fabrication of 1-1/2" OD nominal pipe turbo manifolds. This patented 3 stage system eliminates errors and reduces uncertainty in the design and fabrication process. With the icengineworks full systems, you can control all aspects of the process ahead of time: design, modeling, budgeting, assembly, and welding. Endless possibility can be explored before committing costly labor and material to the project. Now, for the first time, you have an unparalleled ability to quickly create complex systems that are not impossible or too expensive to build.

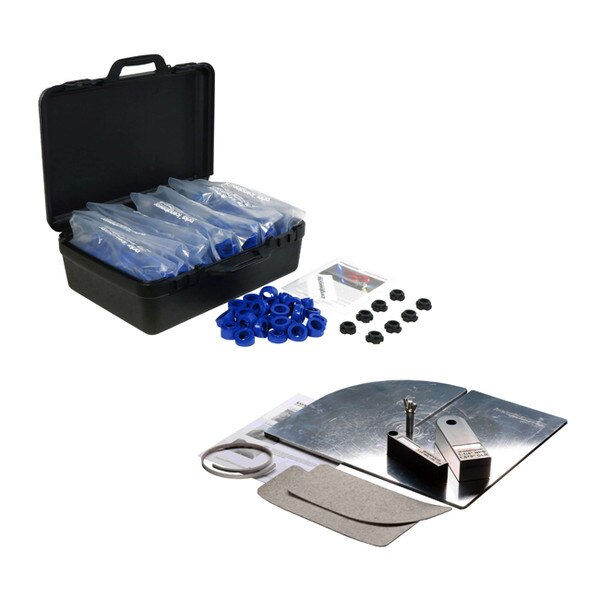

1500NPSYSTEM - 1500NP Series Full System Contents:

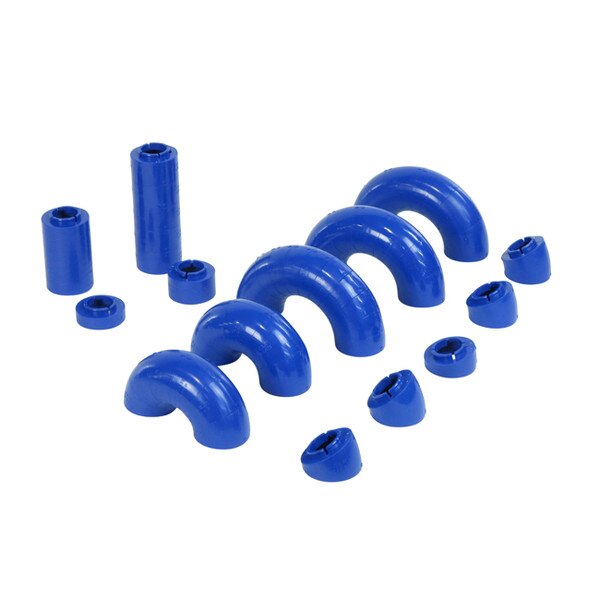

• 1500NPPRO - PRO 1500NP Series Teal Modeling Block Set (368 pieces total)
• (60) 1/2" Straight Blocks
• (60) 1" Straight Blocks
• (60) 1-1/2" CLR 30-degree Blocks
• (60) 1-1/2" CLR 45-degree/1" Blocks
• (60) 1-7/8" CLR 30-degree/1" Blocks
• (60) 1-7/8" CLR 15-degree Blocks

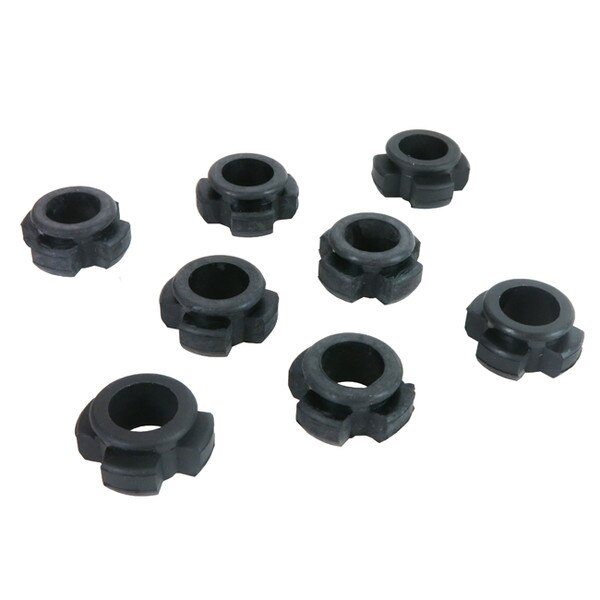

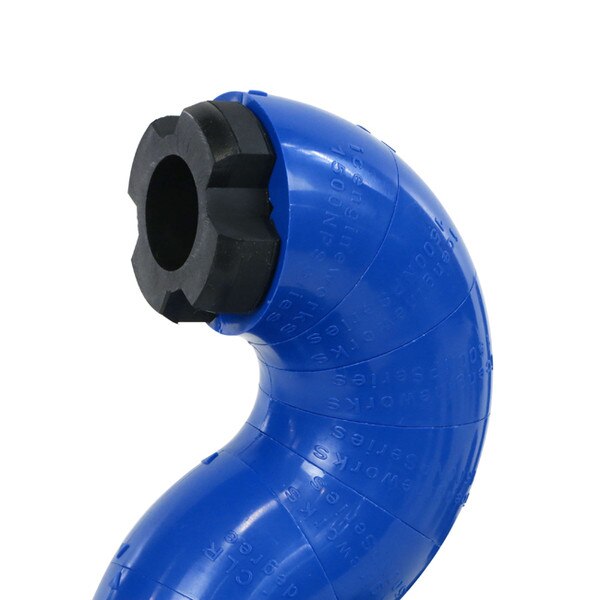

• (8) Block/Starter Tube Adapters
• User Manual
• Control Sheets
• Storage Case
• 1500NPCUT - 1500NP Series CUT System

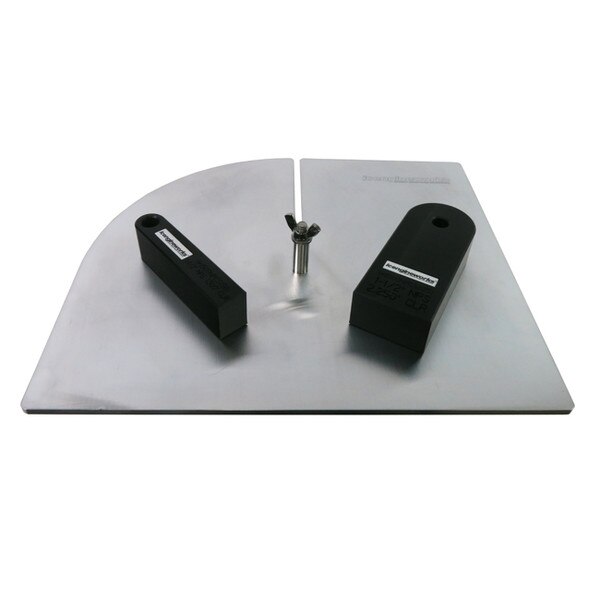

• PIV1001 - Radial Cutting Table
• 1500NPCSS - HDPE Tube Cutting Spacer Set (1-1/2" and 1-7/8" CLR Spacers)
