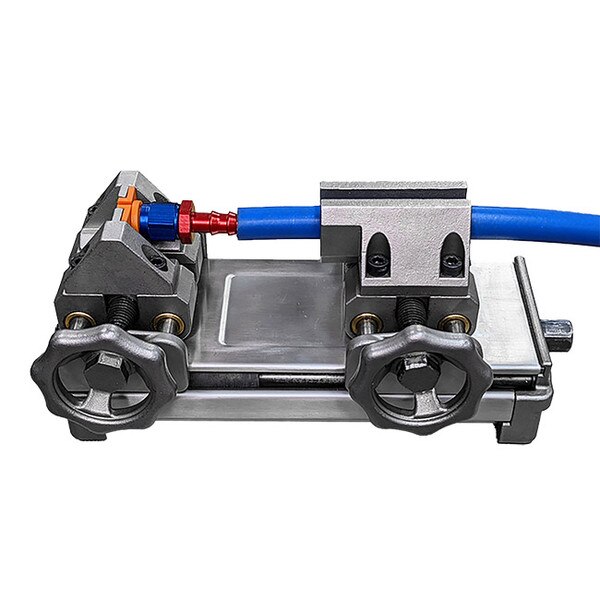

KOUL Tools Model 427 EZ-ON High-Volume Hose Press for 1/4" to 1" Hose
The KOUL Tools Model 427 EZ-ON Hose Press is the ultimate solution for professionals seeking efficient and safe hose assembly. Designed to accommodate hoses ranging from 1/4" to 1", this tool eliminates the need for boiling water or heat guns. Its durable stainless steel construction ensures longevity, making it ideal for high-volume assembly tasks in automotive, aerospace, and industrial applications.
Key Features:
- Versatile Hose Compatibility: Effortlessly installs fittings onto hoses from 1/4" to 1" in diameter.
- Robust Construction: Made entirely of stainless steel, ensuring durability and resistance to wear.
- Ergonomic Design: Utilizes a lead-screw drive system operated by a 17mm socket and small impact gun for effortless assembly.
- Portable Design: Lightweight and includes a custom carrying case for easy transportation.
- Customizable Components: Removable hose clamps and vise allow for custom clamps to accommodate non-standard fittings and hoses.
- Safe Operation: Eliminates the risk of repetitive motion injuries associated with manual hose assembly.
Why Choose the KOUL Tools Model 427?
- Efficiency: Significantly reduces assembly time compared to traditional methods.
- Precision: Ensures consistent and accurate hose installations every time.
- Durability: Built to withstand the demands of high-volume production environments.
- User-Friendly: Designed for ease of use, even for those new to hose assembly.
Frequently Asked Questions (FAQs)
Q: What hose sizes are compatible with this tool?
A: The tool is designed for hoses ranging from 1/4" to 1".
Q: Can I use this tool for angled fittings?
A: Absolutely, the vise is designed to securely hold both straight and angled fittings during installation.
Q: Does the tool require any power source?
A: No external power source is needed; it operates using a manual ratchet or a small impact gun.
Q: Is the carrying case included?
A: Yes, a custom carrying case is included for convenient storage and transport.
Q: What is the warranty period?
A: The tool comes with a six-month warranty covering manufacturing defects.
| AN Threads | ||||
|---|---|---|---|---|
| AN Size | Hex Nut Size | Tube Diameter | Thread Size (SAE) | Max Torque (ft-lb) |
| -2 | - | 1/8" | 5/16-24 | - |
| -3 | 1/2" | 3/16" | 3/8-24 | 8.75 |
| -4 | 9/16" | 1/4" | 7/16-20 | 11.5 |
| -6 | 11/16" | 3/8" | 9/16-18 | 16.25 |
| -8 | 7/8" | 1/2" | 3/4-16 | 29 |
| -10 | 1" | 5/8" | 7/8-14 | 35 |
| -12 | 1-1/4" | 3/4" | 1 1/16-12 | 45 |
| -16 | 1-1/2" | 1" | 1 5/16-12 | 70 |
| -20 | 1-7/8" | 1-1/4" | 1 5/8-12 | 85 |
| -24 | - | 1-1/2" | 1 7/8-12 | - |
| -28 | - | 1-3/4" | 2 1/4-12 | - |
| -32 | - | 2" | 2 1/2-12 | - |
