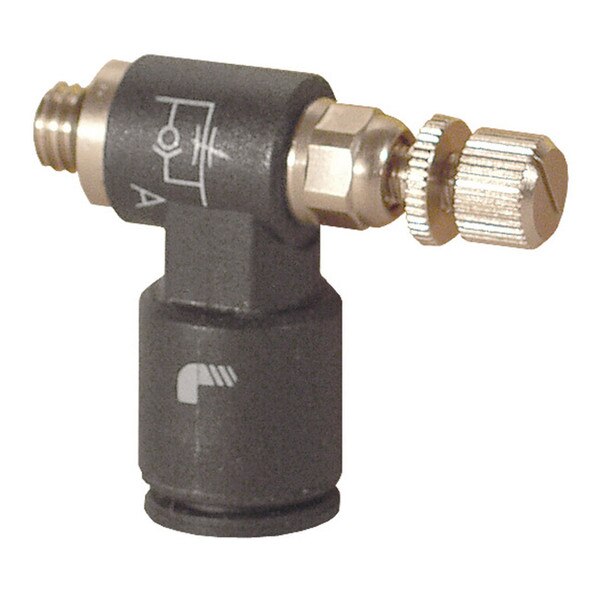

Parker Legris 7065 Series Compact Flow Control Valves are constructed with a glass-filled nylon body and feature external or recessed adjustment screws, offer precise adjustment, accuracy and compactness providing the solution for all applications. These valves control the speed of a cylinder by regulating air exhaust. Intake air flows freely through the flow control and exhaust air is metered out through a specially designed fine adjustment screw.

Parker Legris 7065 Series Compact Flow Control Valve Features:

• Higher maximum flow than standard regulators
• Optimal control of the cylinder rod speed
• 100% leak-tested in production
• Date coding to guarantee quality and traceability
• Reduce compressed air and energy consumption
• Precise adjustment for accurate flow regulation from initial to maximum opening
• Constant cylinder rod displacement speed
• Long-term stability of flow
• Reduced weight (polymer version)
• External adjustment screw for easy adjustment without tooling
• Lockable
• Uni-directional (exhaust or inlet)
• Bi-directional
• Suitable Fluid: Compressed Air
• Control Pressure Range: 15 psi to 145 psi
• Temperature Capability: 32°F to 158°F (0°C to 70°C)
