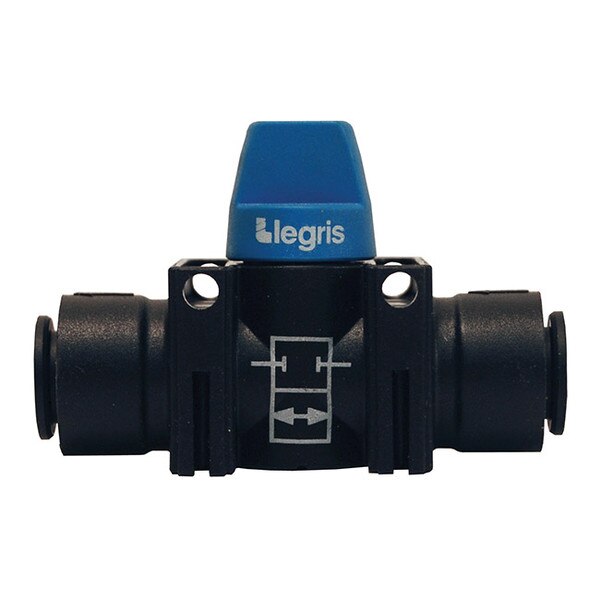

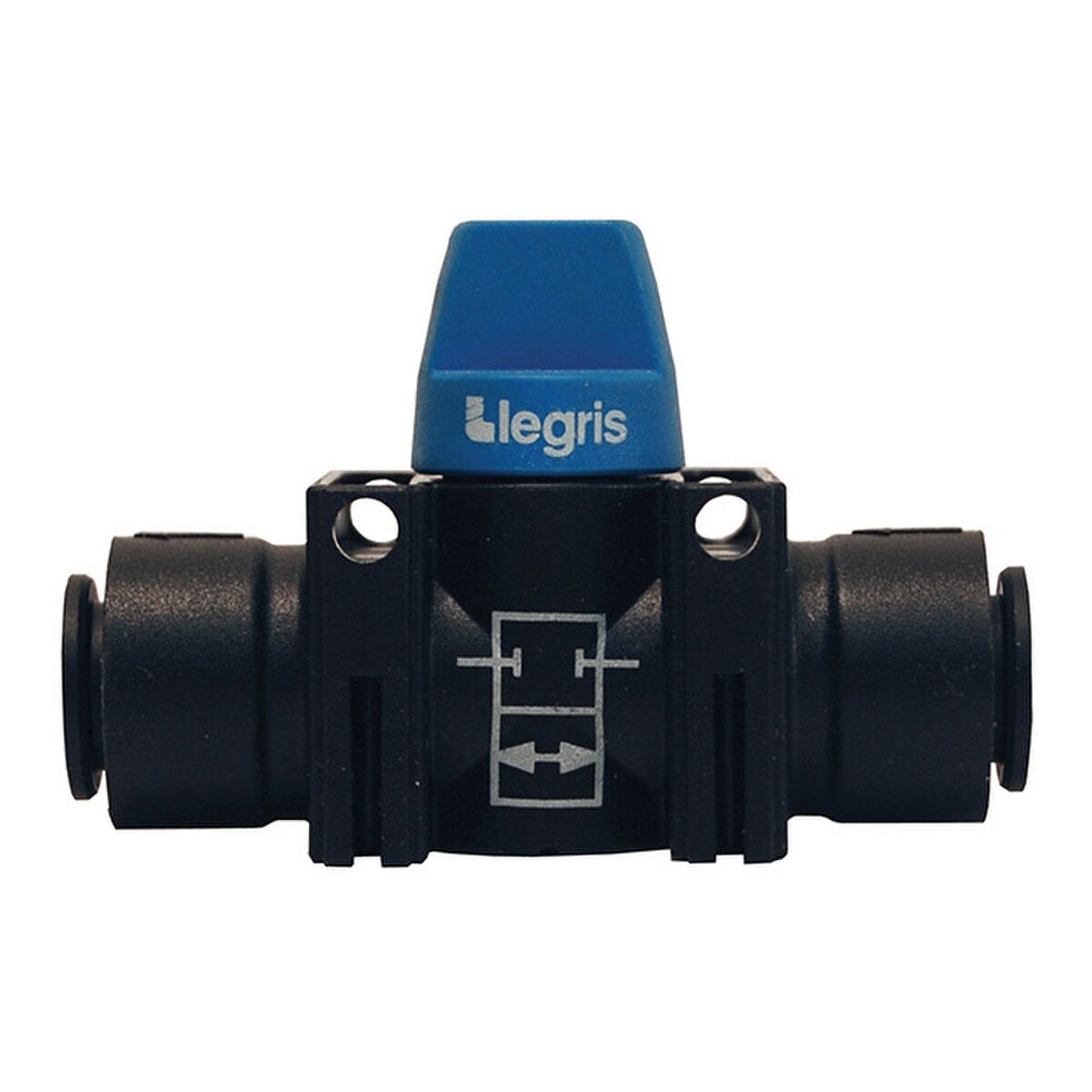

Parker Legris 7910 Series Composite Mini Ball Valves are used for opening/closing lines. This push to connect ball valve is compact and lightweight. Suitable for all types of installations thanks to the 3 types of mounting available.

Legris LF3000 fittings offer performance and reliability. Gripping and sealing within the fitting is achieved using the outside of the tube without deformation so there is no flow restriction. The o-ring within the fitting provides a positive seal on the OD of the tube, in both static and dynamic positions, due to the optimized design of the tube guide. Parker Legris fittings feature individual unit quality control and dating in order to guarantee quality and traceability. All male threaded fittings are provided with a pre-coated sealant on the threads.

The LF 3000 push-in fitting is the most intuitive way of connecting tubes to a fitting in order to create a fluid distribution network. Thanks to its quick installation, versatility and exceptional lifespan, the push-in fitting contributes to improving machine efficiency. Moreover, the advanced patented design of the LF 3000 contributes to reducing total cost of use. LF3000 fittings allow for instant fitting, just push your tube into the fittings. Disconnection is just as instantaneous. Reliable performance is dependent upon the type of tubing being used, ambient temperature, and fluid conveyed together with the suitability of component materials of the fitting, according to the application. Reliable performance is dependent upon the type of tubing being used, ambient temperature, and fluid conveyed together with the suitability of component materials of the fitting, according to the application.

Parker Legris 7910 Series Composite Mini Ball Valve Features:

• 2-way, non-venting valve
• Enables in-line opening and closing of a pneumatic circuit
• Compact and lightweight, suited to all types of installation
• LF 3000 push-in connection, excellent static and dynamic sealing
• Suitable Fluid: Compressed Air
• Maximum Operating Pressure: 145 PSI
• Vacuum Rating: 28 inHg (99% vacuum)
• Temperature Capability: -4°F to 175°F (-20°C to 79°C)
• Nylon body with nickel-plated brass ball
• Screwdriver slot allows opening and closing even when access is difficult
• Handle is differentiated by a blue color and marked with the corresponding pneumatic symbol, enabling immediate identification by the uses
• 100% leak-tested in production
• Date coding to guarantee quality and traceability

Parker Legris 7910 Series Composite Mini Ball Valve Construction:

• Body: Glass Filled Nylon
• Ball: Nickel-Plated Brass
• Stem: Brass
• Stem Seal: Buna
• O-Rings: Buna
• Handle: Glass Filled Nylon
• Gripping Ring: Stainless Steel
