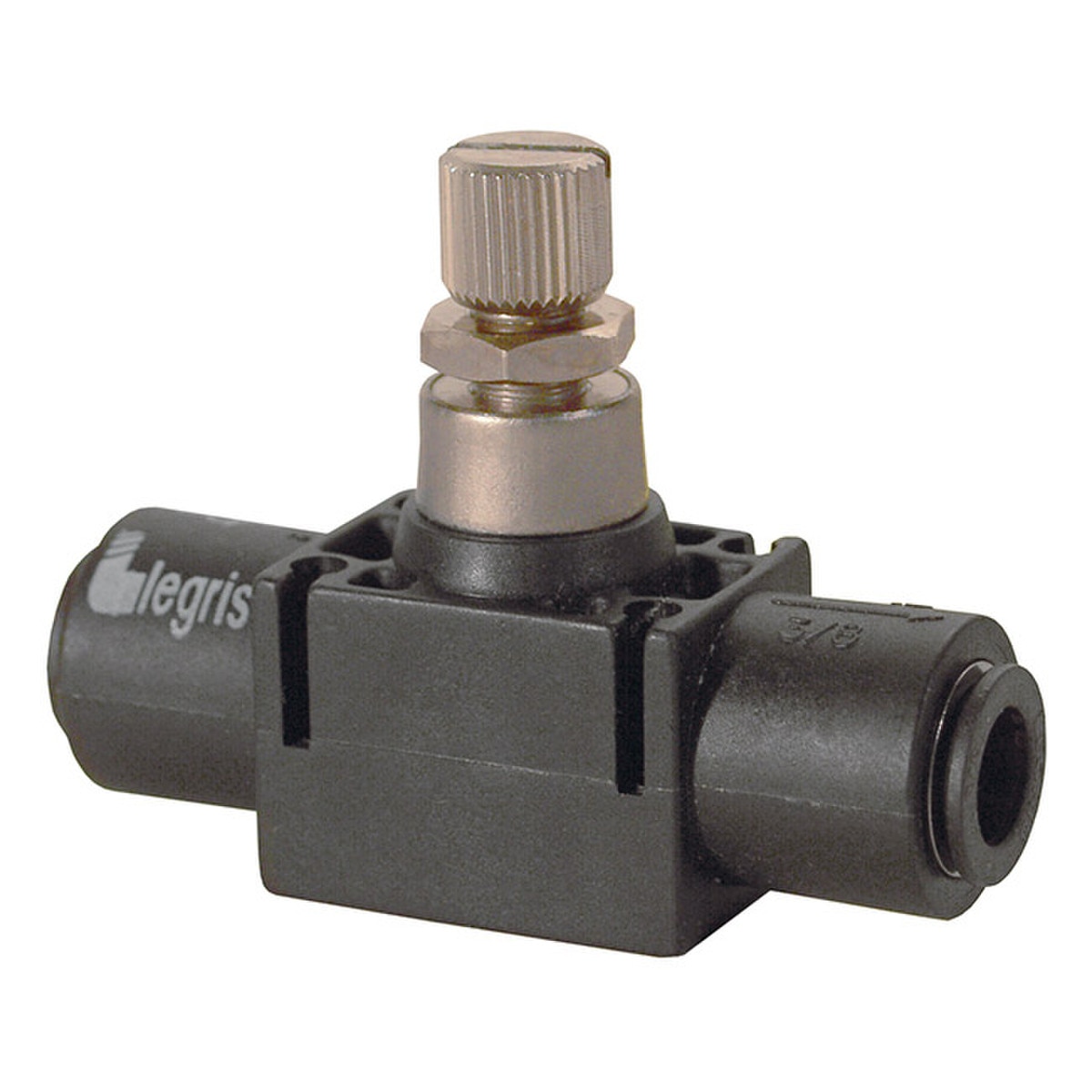

Parker Legris In-Line Flow Control Valve

Parker Legris 7770 Series In-Line Exhaust Flow Control Valves are for use where cylinder access is difficult or another fitting is attached to the cylinder port.

Parker Legris 7770 Series In-Line Exhaust Flow Control Valve Features:

• Reliable, precise and progressive adjustment
• Lock nut to prevent unwanted adjustment
• Perfectly adapted to reduced spaces due to their small size
• Constant cylinder rod displacement speed
• Long-term stability of flow
• Push-to-connect
• Unidirectional
• Small and lightweight for easy installation
• Meter out flow control
• Working Fluid: Compressed Air
• Stackable using 2 joining clips (supplied) or panel mountable using existing holes
• Control Pressure Range: 15 psi to 145 psi
• Temperature Capability: 32°F to 158°F (0°C to 70°C)

Parker Legris 7770 Series In-Line Exhaust Flow Control Valve Construction:

• Nylon body with stainless steel gripping ring
• Nickel plated brass adjustment screw and locking nut
