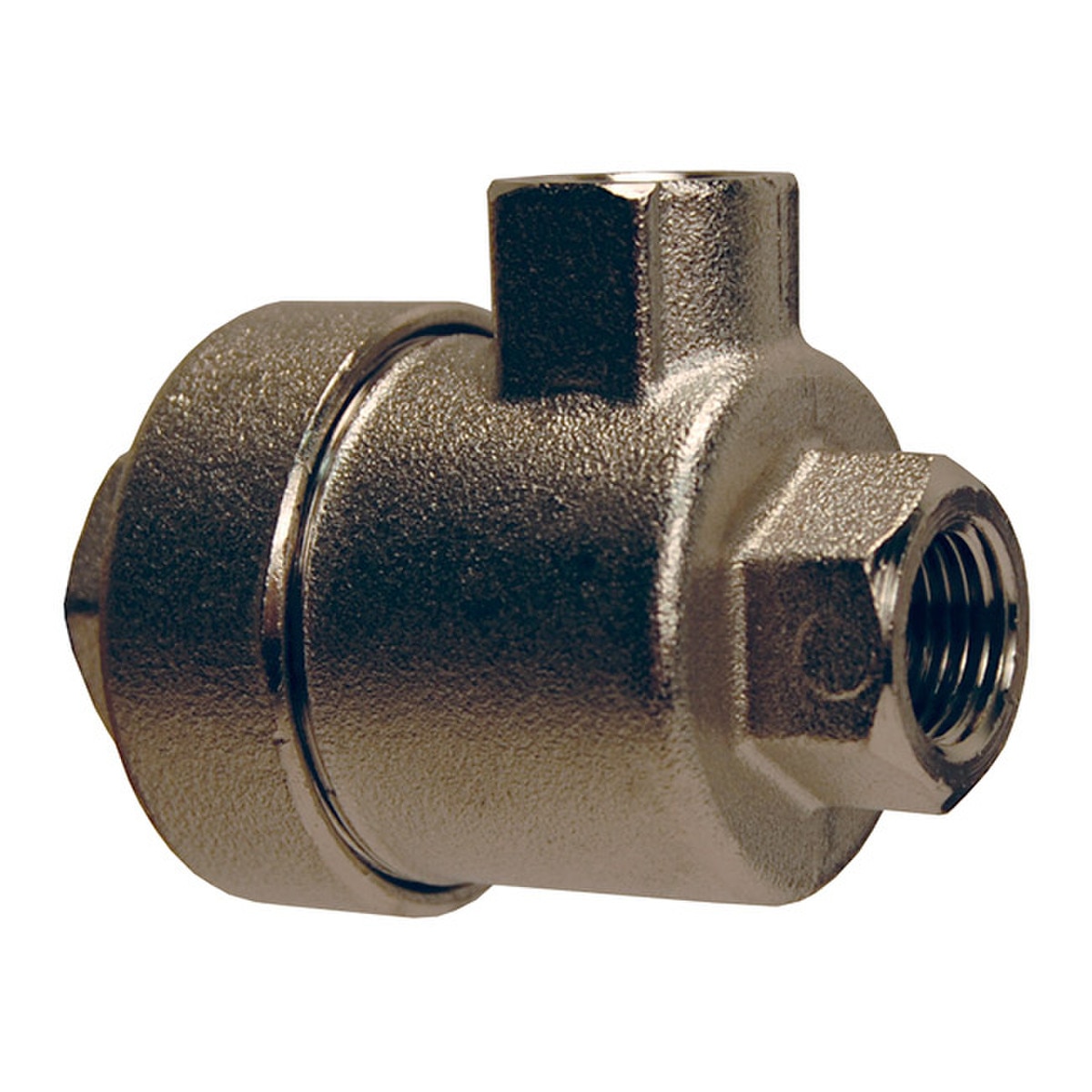

Parker Legris Quick Exhaust Valve
Parker Legris 7982 Series Quick Exhaust Valves can be used with all pneumatic equipment. Increases system efficiency and the speed of a cylinder by purging cylinder air at the cylinder port rather than the control valve.
Parker Legris 7982 Series Quick Exhaust Valve Features:
- Suitable Fluid: Compressed Air
- Pressure Range: 10 psi to 150 psi
- Temperature Capability: 0°F to 160°F (-17°C to 71°C)
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
Parker Legris 7982 Series Quick Exhaust Valve Construction:
- Body: Nickel-Plated Brass
- Piston: Polyurethane
- Seals: Nylon
| MFG Part # | Size | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| 79821111 | 1/8" | 2.01" | 0.63" | 1.46" | 0.09 lbs |
| 79821414 | 1/4" | 2.05" | 0.63" | 1.46" | 0.08 lbs |
| 79821818 | 3/8" | 2.05" | 0.63" | 1.46" | 0.06 lbs |
| 79822222 | 1/2" | 2.05" | 0.63" | 1.46" | 0.06 lbs |
