TiAL® V-Band Flange for TiAL® GT Series Turbo Housing - Discharge

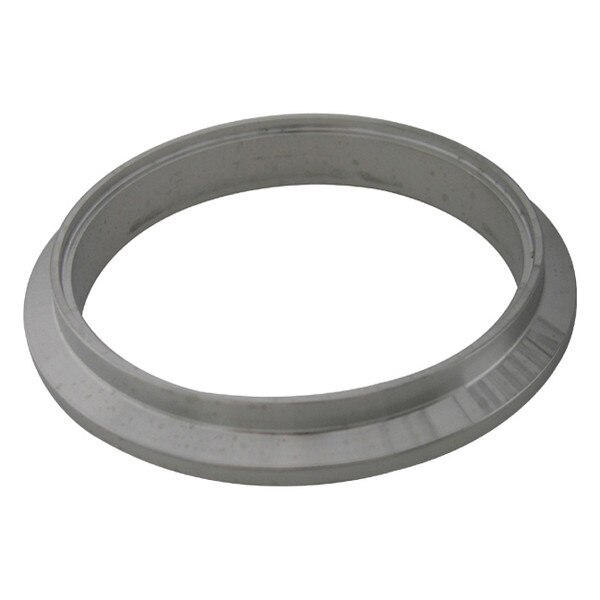

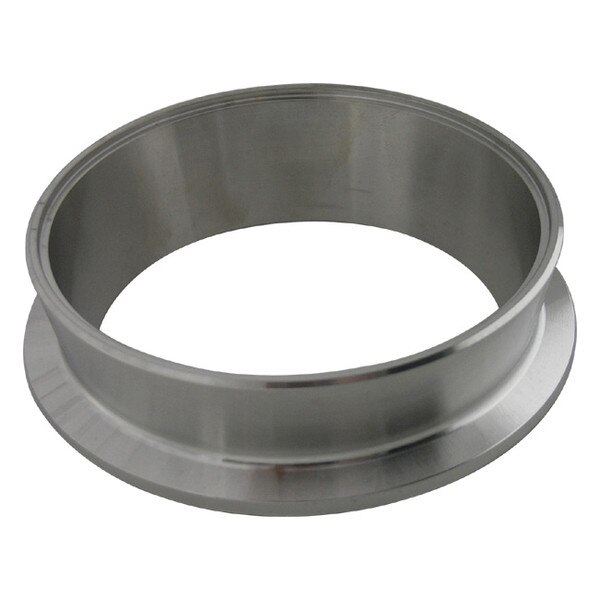

TiAL® V-Band Discharge Weld Flanges compliment their V-Band turbo housings to make your custom fabrication projects as simple as possible. These male flanges are precision machined in the United States from 304 stainless steel to provide a long lasting, air tight seal. Available for GT25, GT28, GT30, GT35, GT42, GT45 and GT55 series v-band compressor housings. Secure with a TiAL® V-Band discharge clamp.
| VMS Part # | TiAL Part # | Configuration | Flange OD | Neck OD | Neck ID | Overall Length (OAL) |
|---|---|---|---|---|---|---|
| TIALVBOFS-GT283035-F | 002499 | Garrett GT28/30/35, Borg Warner S300 (Female) | 3.55" (90.2mm) | 3.14" (79.7mm) | 3.00" (76.2mm) | 0.45" (11.4mm) |
| TIALVBOFS-GT283035-M | 002500 | Garrett GT28/30/35, Borg Warner S300 (Male - Downpipe Side) | 3.55" (90.2mm) | 3.14" (79.7mm) | 3.00" (76.2mm) | 0.53" (13.4mm) |
| TIALVBOFS-GT4245 | 002493 | Garrett GT42/45, Borg Warner S400/SXE | 4.50" (114.3mm) | 4.22" (107.3mm) | 4.00" (101.8mm) | 1.23" (31.2mm) |
| TIALVBOFS-GT55 | 003959 | Garrett GT55 | 4.74" (120.4mm) | 4.67" (118.7mm) | 4.52" (114.7mm) | 0.70" (17.7mm) |
