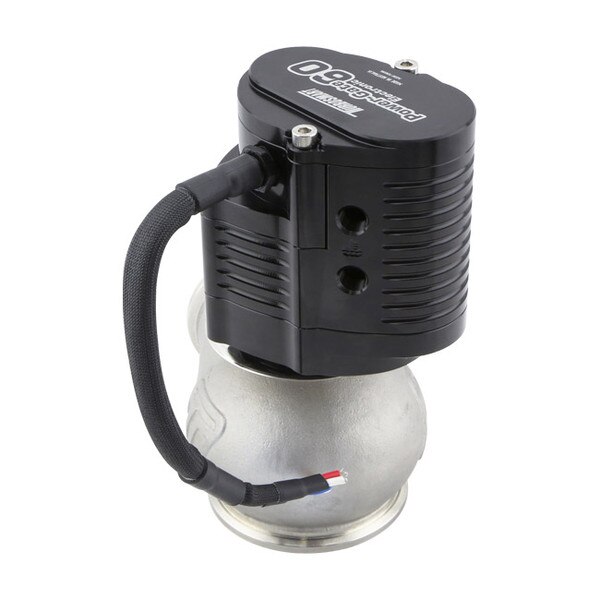

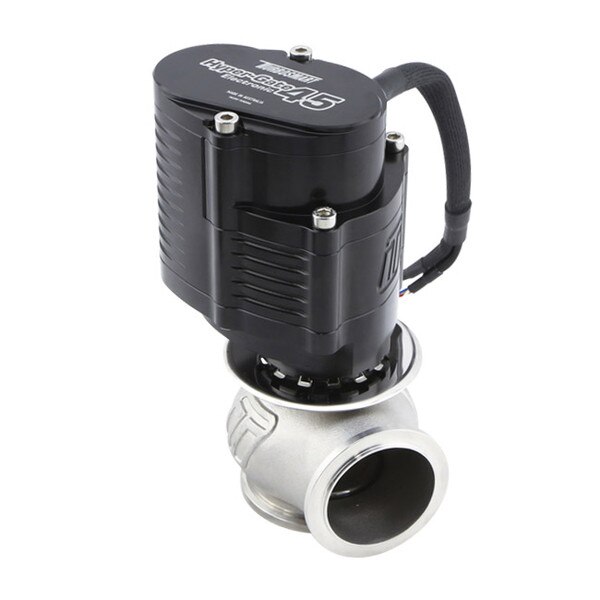

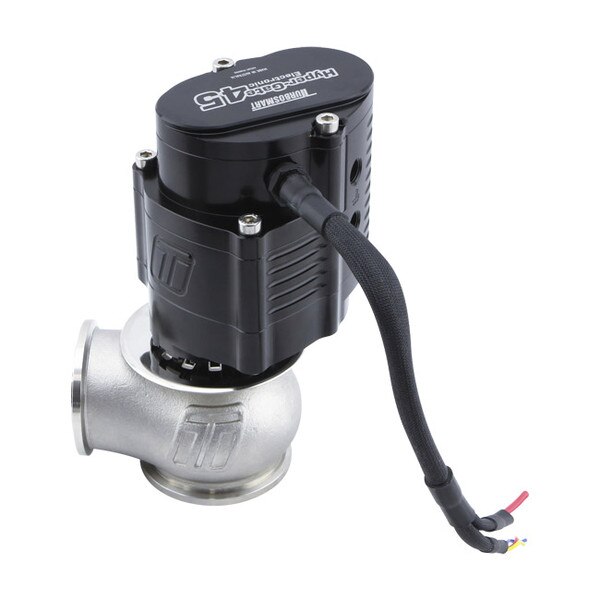

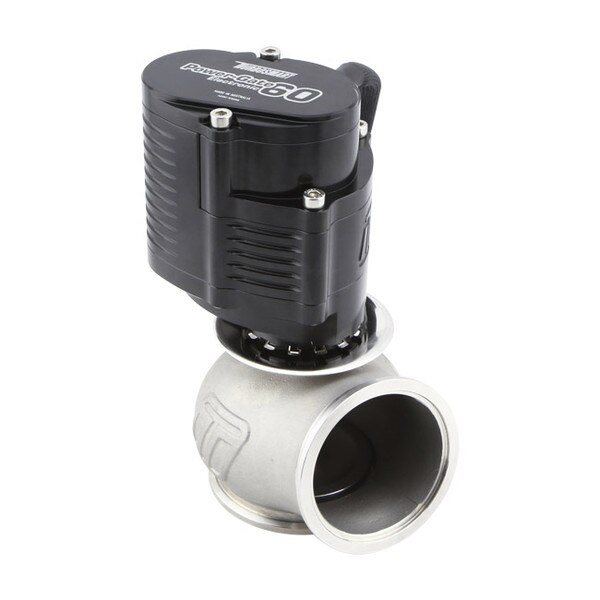

Turbosmart Electronically Actuated Wastegates

Turbosmart’s new electronically actuated wastegate valves give you all the flow and interchangeability of Turbosmart’s Gen-V range of External wastegates, with the kind of control never seen before, independent of any reference signal, without the need for compressed gas or boost hoses and is fully adjustable from your tuning interface, no need for changing springs: Boost control is completely adjustable from your laptop. Mechanically actuated wastegates are truly tried and tested over the years. The Gen-V range particularly has proven itself in the harshest of environments and continues to set world records and claim fans with their reliability and performance. As boost control strategies become more and more complex however, Turbosmart went back to the drawing board for a solution that maintains all the performance and reliability of the Gen-V range and adds truly infinite control. The Turbosmart e-WG operates on a current draw while providing fast and efficient boost control against up to 80psi drive pressure (e-WG60) and over 120psi for the e-WG45. As with the Gen-V range there is a provision for optional water cooling.

Turbosmart Electronically Actuated Wastegate Features:

Can be directly swapped with Turbosmart Gen-V Wastegates as long as the actuator has room

Full travel achieved in 600ms

Fully adjustable without need for springs

5 wires, 2 for the motor and 3 for the onboard position sensor

Can completely replace a compressed gas (CO2) setup with just the eWG alone

Requires a programmable ECU, high-current (20A) output, and a spare analog input.
