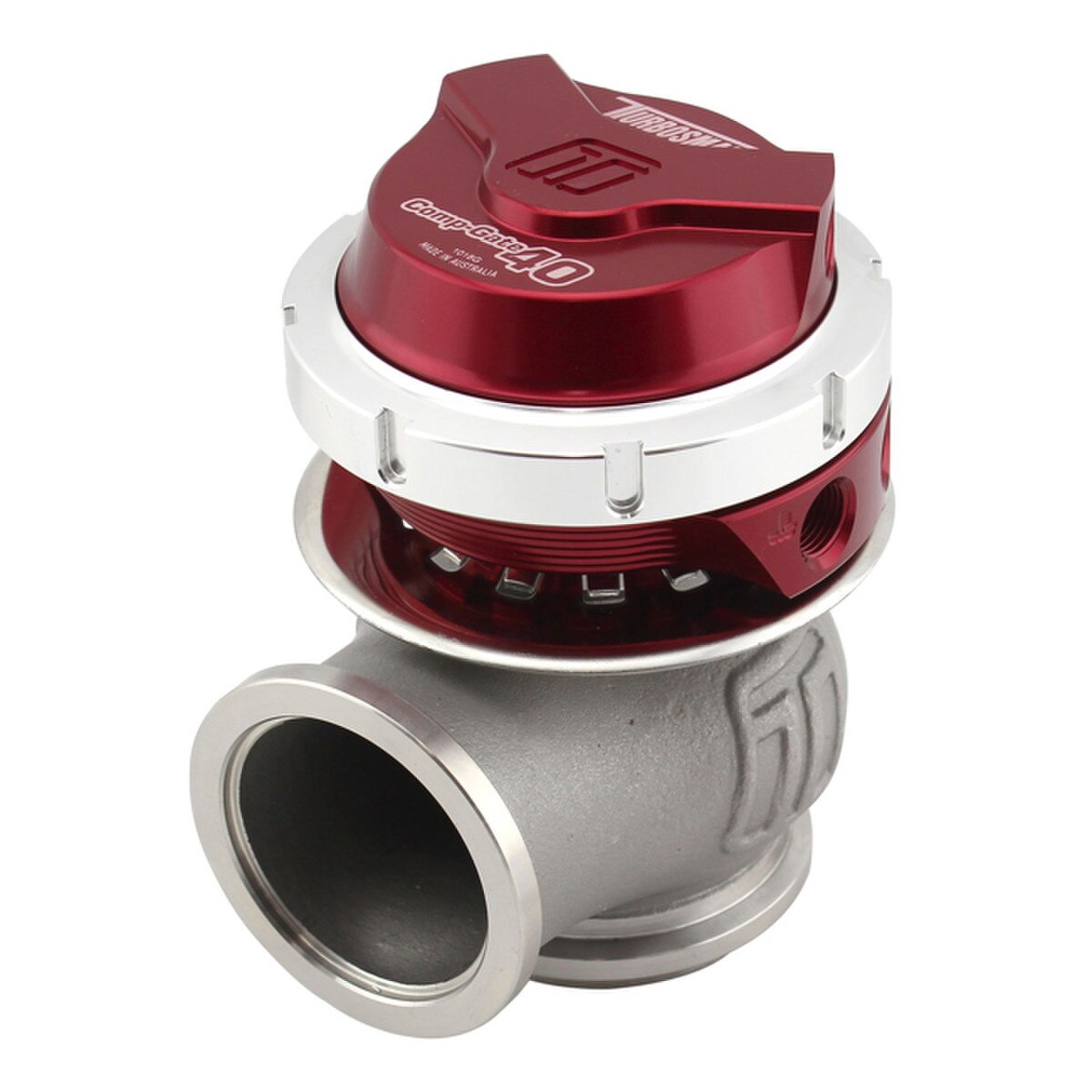

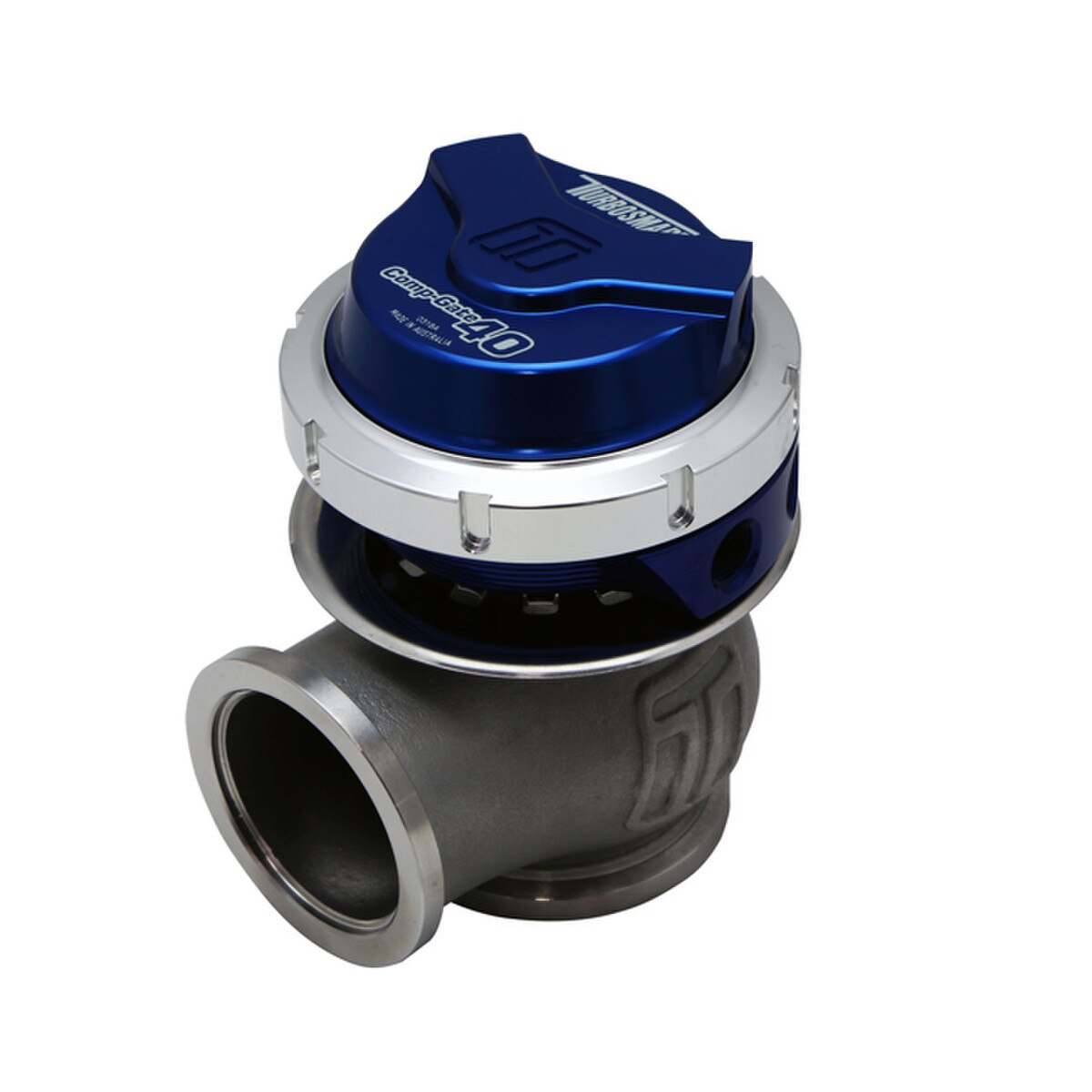

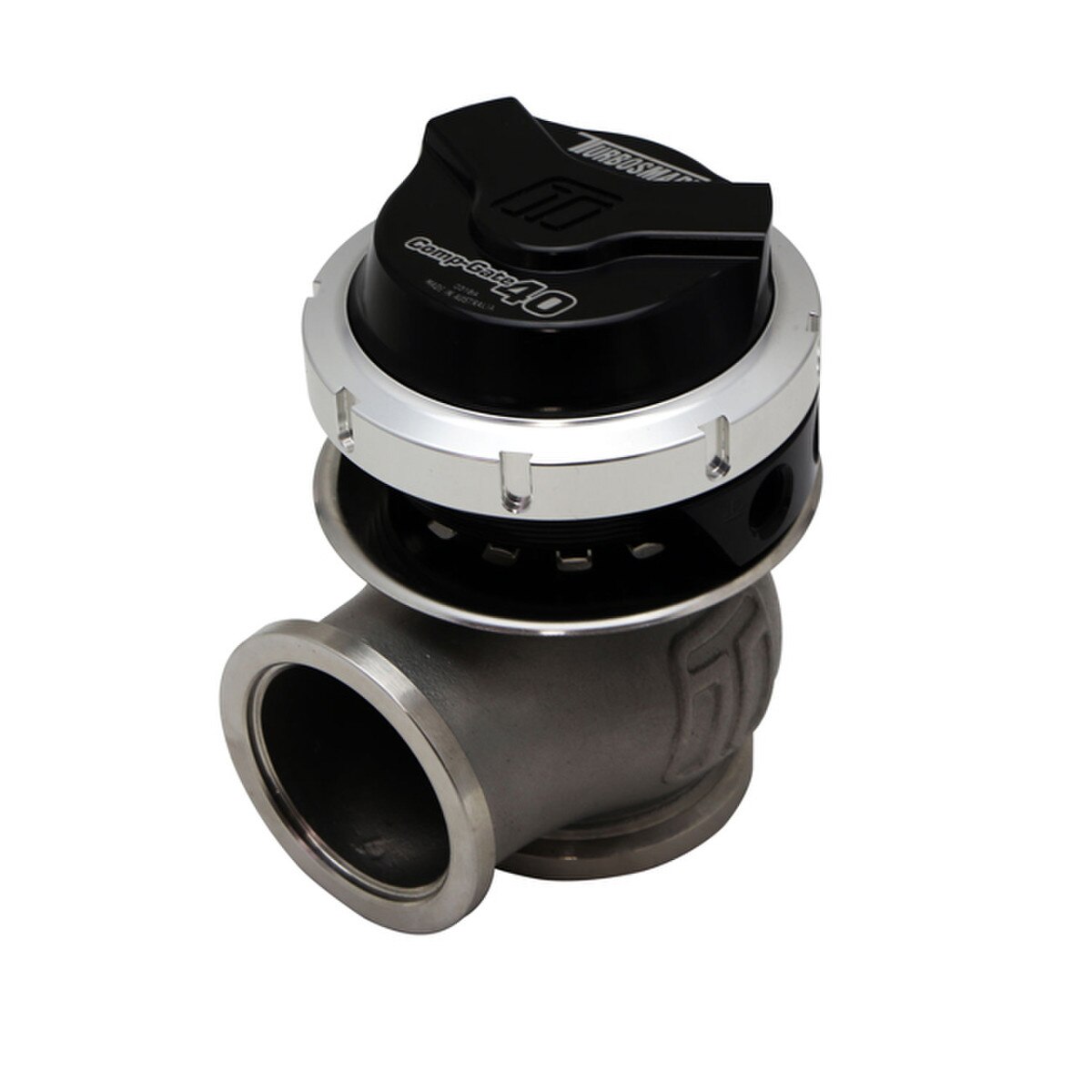

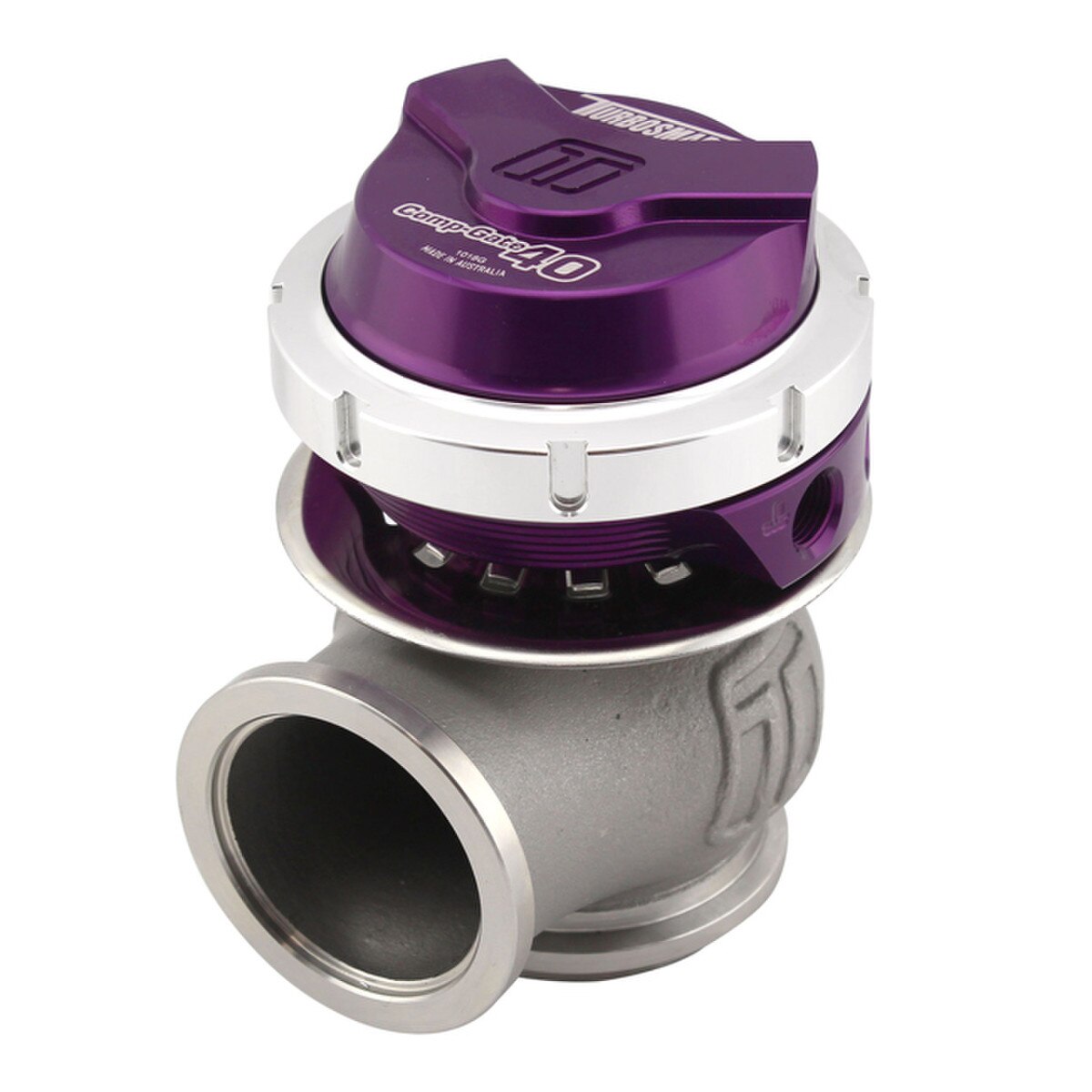

The Gen-V WG40 Comp-Gate40 external wastegate is a cost effective, high performing 40mm external wastegate. The Gen-V provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity. A direct fit upgrade to all 4th-generation Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base, strap-type V-band clamps, liquid-cooling, 1/8? NPT ports, and are provided with a range of springs.

Features summary:

Direct swap for Turbosmart Gen 4 Comp-Gate 40, inlet is the same as other 38/40mm V-band wastegates 40mm valve size.

High temp spring combinations from 3 – 26psi supplied in the box.

1/8”NPT ports.

V-band clamp mounting system to suit 1-3/4” OD pipe.

Locking collar for compact size and easy spring changes.

Included in the box:

Wastegate unit (pre-assembled with spring as per order)

Inlet and Outlet SS304 Weld Flanges

Inlet and Outlet V-Band Clamps

SS316 Valve Seat

Collar tool (master/slave)

4x 1/8” NPT plugs (1x installed) / 2x 1/8” NPT nipples

Sticker

Instruction card
