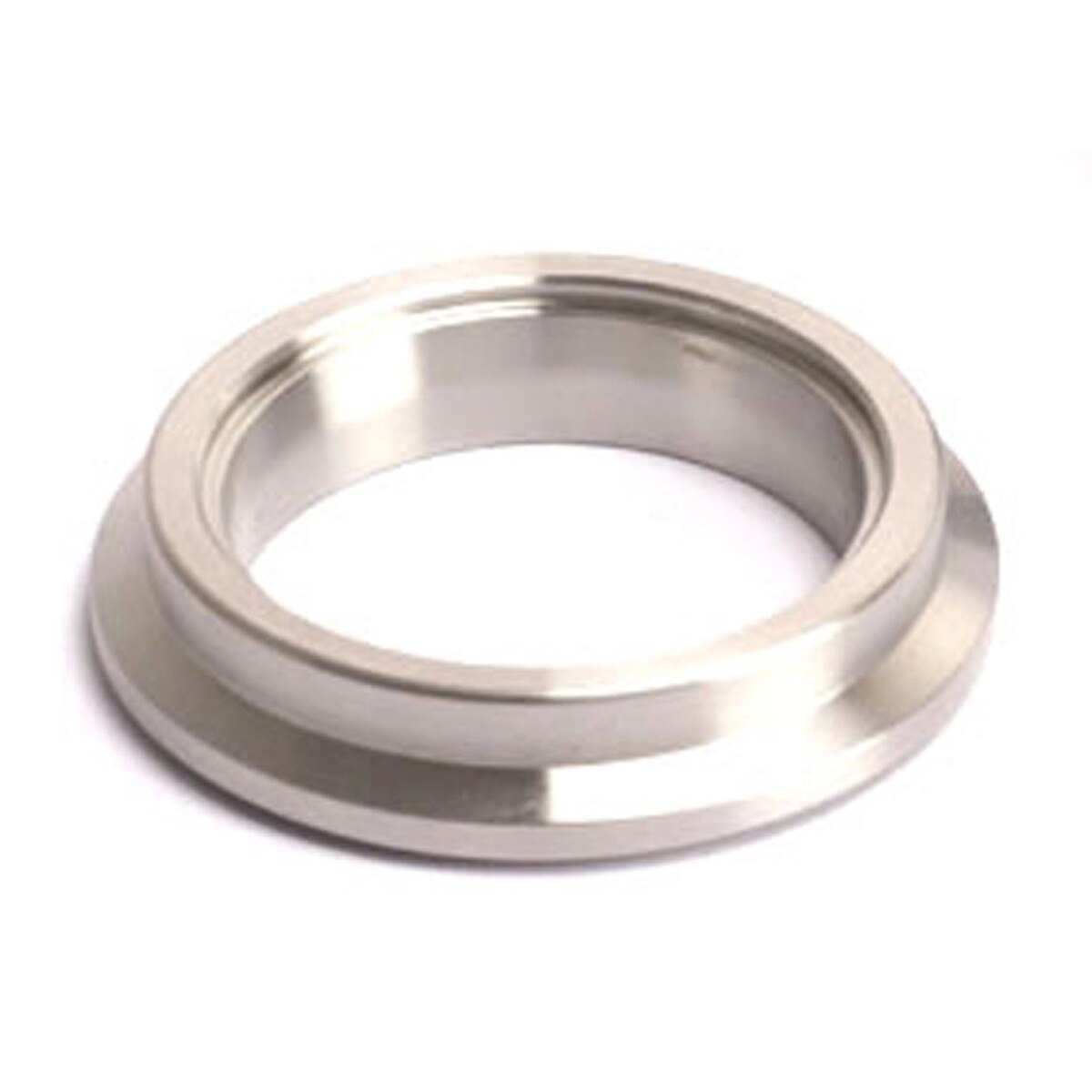

Turbosmart Wastegate Inlet Weld Flanges
Weld flanges designed specifically to suit the inlets of Turbosmart Wastegates. 45mm and 50mm variants available in both aluminum and stainless steel.
| VMS Part # | Turbosmart Part # | Flange OD | Flange ID | Neck OD | Neck ID | Overall Length (OAL) | Material |
|---|---|---|---|---|---|---|---|
| TBSM-WGWF-40SS-IN | TS-0505-3001 | 2.18" (55.4mm) | 1.43" (36.3mm) | 1.93" (49.0mm) | 1.75" (44.5mm) | 0.53" (13.5mm) | Stainless Steel |
| TBSM-WGWF-45AL-IN | TS-0504-3007 | 2.50" (63.5mm) | 1.65" (41.9mm) | 2.21" (56.1mm) | 1.89" (48.0mm) | 0.47" (11.9mm) | Aluminum |
| TBSM-WGWF-45SS-IN | TS-0504-3001 | 2.50" (63.5mm) | 1.65" (41.9mm) | 2.21" (56.1mm) | 1.89" (48.0mm) | 0.47" (11.9mm) | Stainless Steel |
| TBSM-WGWF-50AL-IN | TS-0502-3007 | 2.67" (67.8mm) | 1.89" (48.0mm) | 2.36" (59.9mm) | 2.00" (50.8mm) | 0.53" (13.5mm) | Aluminum |
| TBSM-WGWF-50SS-IN | TS-0502-3001 | 2.67" (67.8mm) | 1.89" (48.0mm) | 2.36" (59.9mm) | 2.00" (50.8mm) | 0.53" (13.5mm) | Stainless Steel |
| TBSM-WGWF-60SS-IN | TS-0503-3001 | 3.15" (80.0mm) | 2.24" (56.9mm) | 2.83" (71.9mm) | 2.50" (63.5mm) | 0.60" (15.2mm) | Stainless Steel |
