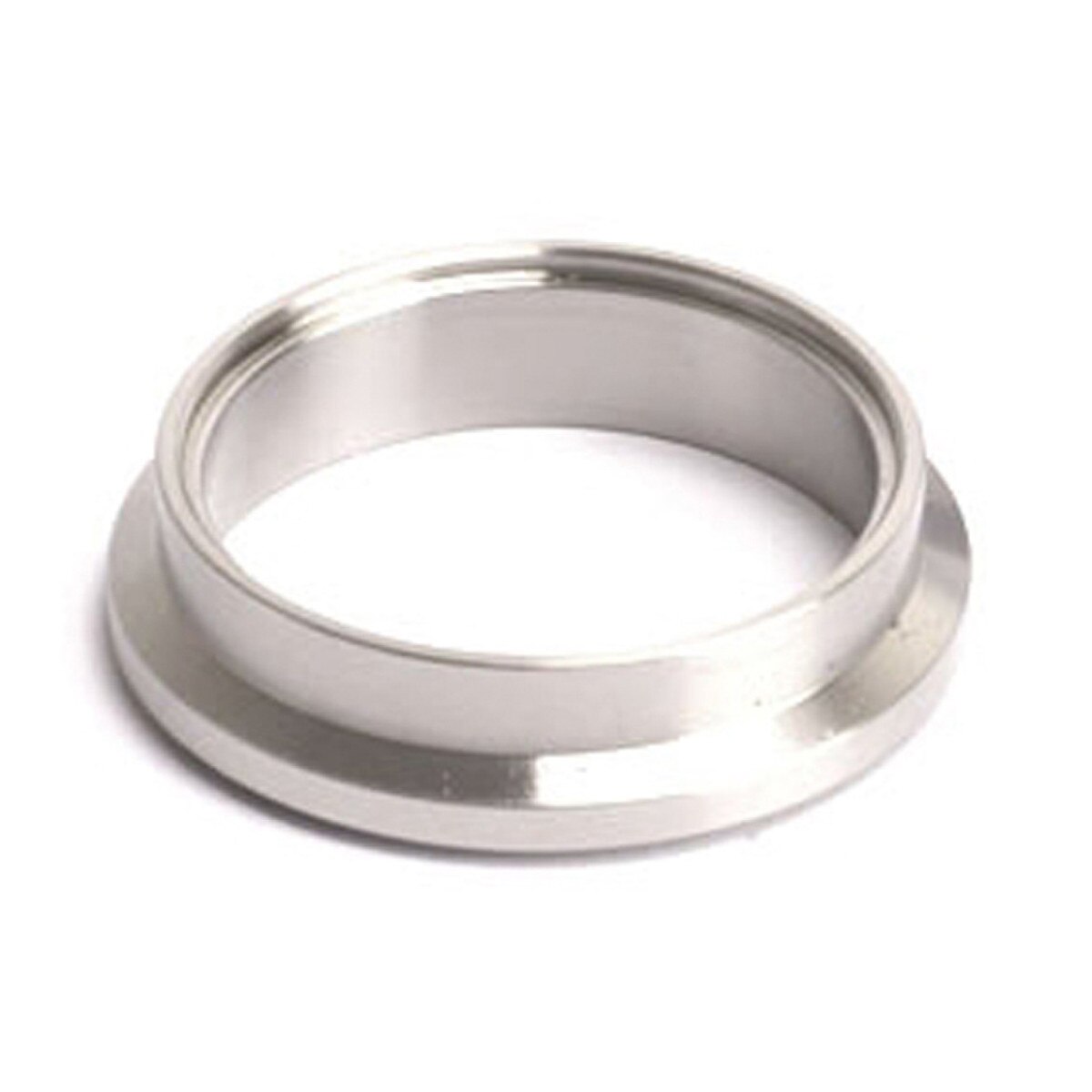

Turbosmart Wastegate Outlet Weld Flanges
Weld flanges designed specifically to suit the outlets of Turbosmart Wastegates. 45mm, 50mm and 60mm variants available in both aluminum and stainless steel.
| VMS Part # | Turbosmart Part # | Flange OD | Flange ID | Neck OD | Neck ID | Overall Length (OAL) | Material |
|---|---|---|---|---|---|---|---|
| TBSM-WGWF-40SS-OUT | TS-0505-3002 | 2.00" (50.8mm) | 1.47" (37.3mm) | 1.75" (44.5mm) | 1.50" (38.1mm) | 0.53" (13.5mm) | Stainless Steel |
| TBSM-WGWF-45AL-OUT | TS-0504-3008 | 2.20" (55.9mm) | 1.63" (41.4mm) | 1.91" (48.5mm) | 1.76" (44.7mm) | 0.47" (11.9mm) | Aluminum |
| TBSM-WGWF-45SS-OUT | TS-0504-3002 | 2.20" (55.9mm) | 1.63" (41.4mm) | 1.91" (48.5mm) | 1.76" (44.7mm) | 0.47" (11.9mm) | Stainless Steel |
| TBSM-WGWF-50AL-OUT | TS-0502-3008 | 2.44" (62.0mm) | 1.96" (49.8mm) | 2.17" (55.1mm) | 2.00" (50.8mm) | 0.59" (15.0mm) | Aluminum |
| TBSM-WGWF-50SS-OUT | TS-0502-3002 | 2.44" (62.0mm) | 1.96" (49.8mm) | 2.17" (55.1mm) | 2.00" (50.8mm) | 0.59" (15.0mm) | Stainless Steel |
| TBSM-WGWF-60SS-OUT | TS-0503-3002 | 2.95" (74.9mm) | 2.36" (59.9mm) | 2.71" (68.8mm) | 2.52" (64.0mm) | 0.51" (13.0mm) | Stainless Steel |
