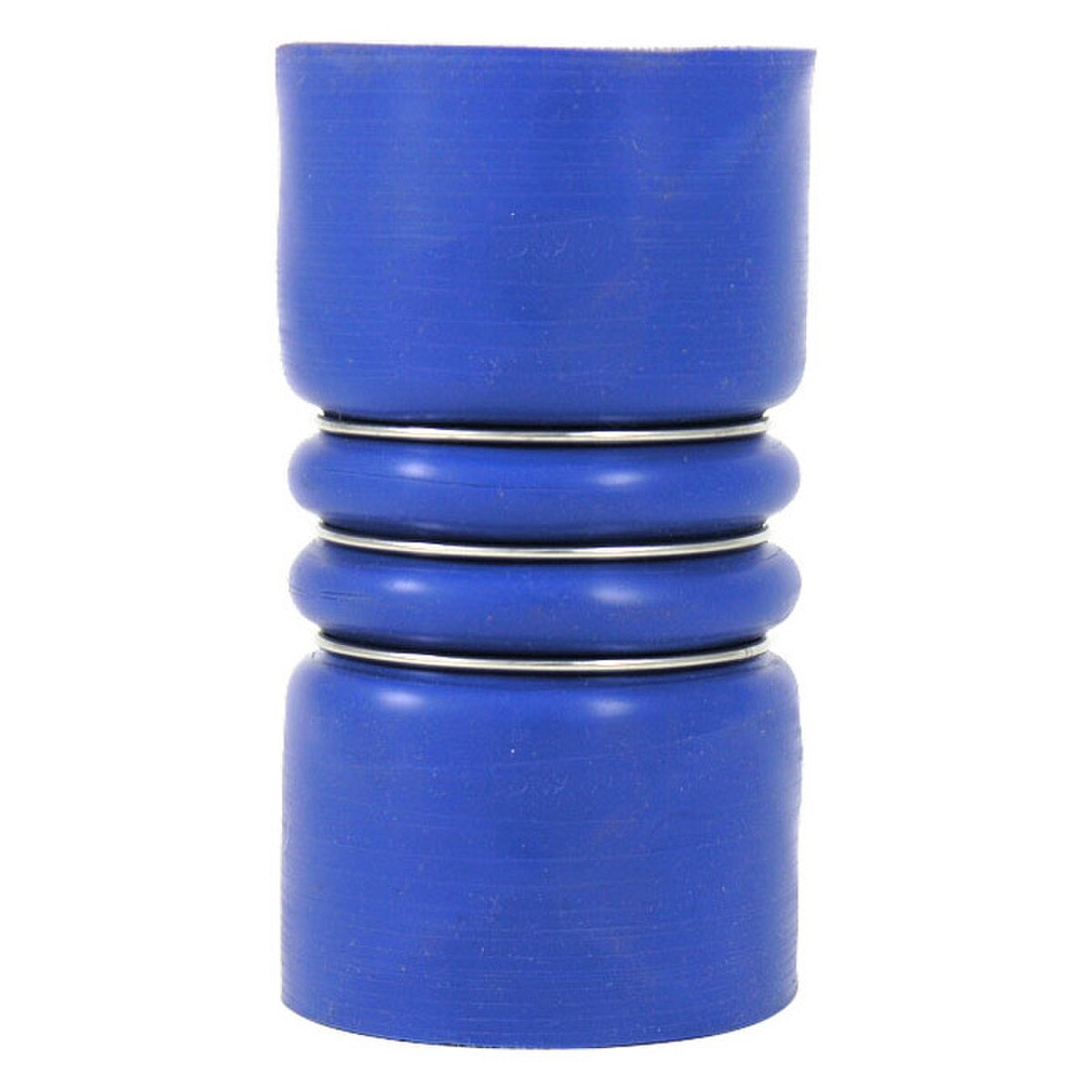

Venair Charge Air Cooler Hose, Cold Side
Venair Silicone Charge Air Cooler Hoses are hand crafted using the highest quality VMQ silicone and stainless steel rings for long lasting performance. Every silicone hose is subject to strict quality controls to ensure a flawless product that is free from defects.
These silicone turboloaders are manufactured with 4-ply polyester reinforcement, which can withstand high boost applications as well as temperatures from -76° up to 356° Fahrenheit, making these perfect for the cold side of turbo. The stainless steel rings provide axial flexibility so this coupling can absorb engine vibrations, helping prevent undo strain on your intercooler piping. These silicone hump hoses are perfect for finishing off your custom turbo installation and make a great upgrade for direct fitment intercooler kits with low quality couplers.
Silicone Turboloader Features:
- 4 Ply Polyester Reinforcement
- -76° up to 356° Fahrenheit Operating Range
- Matching inner liner and outer jacket color
- Great axial flexibility
- Highly resistant to ozone
- Not affected by anti-freeze or anti-rust liquids
- Highly resistant to hardening
- Very good compression characteristics
- Very long life
- Reduced maintenance problems
- Not suitable for carrying gasoline, oil, or other petroleum products
| VMS Part # | Size (Hose ID) | OAL (Overall Length) | C (Cuff Length) | # of Rings/Humps | Working Pressure | Bursting Pressure | Reinforcement |
|---|---|---|---|---|---|---|---|
| VACAC4P-200-0630-3 | 2.00" (51mm) | 6.30" (160mm) | 1.89" (48mm) | 3 / 2 | 66 psi (4.6 bar) | 198 psi (13.7 bar) | 4 Ply Poly |
| VACAC4P-200-0787-5 | 2.00" (51mm) | 7.87" (200mm) | 1.69" (43mm) | 5 / 4 | 66 psi (4.6 bar) | 198 psi (13.7 bar) | 4 Ply Poly |
| VACAC4P-250-0600-3 | 2.50" (63mm) | 5.98" (152mm) | 1.77" (45mm) | 3 / 2 | 56 psi (3.9 bar) | 169 psi (11.7 bar) | 4 Ply Poly |
| VACAC4P-250-0800-3 | 2.50" (63mm) | 7.87" (200mm) | 1.77" (45mm) | 3 / 4 | 56 psi (3.9 bar) | 169 psi (11.7 bar) | 4 Ply Poly |
| VACAC4P-275-0700-4 | 2.75" (70mm) | 7.09" (180mm) | 1.77" (45mm) | 4 / 3 | 52 psi (3.6 bar) | 158 psi (10.9 bar) | 4 Ply Poly |
| VACAC4P-275-0787-4 | 2.75" (70mm) | 7.87" (200mm) | 2.20" (56mm) | 4 / 3 | 52 psi (3.6 bar) | 158 psi (10.9 bar) | 4 Ply Poly |
| VACAC4P-300-0600-3 | 3.00" (76mm) | 5.98" (152mm) | 1.77" (45mm) | 3 / 2 | 49 psi (3.4 bar) | 149 psi (10.3 bar) | 4 Ply Poly |
| VACAC4P-300-0787-5 | 3.00" (76mm) | 7.87" (200mm) | 1.69" (43mm) | 5 / 4 | 49 psi (3.4 bar) | 149 psi (10.3 bar) | 4 Ply Poly |
| VACAC4P-300-1181-6 | 3.00" (76mm) | 11.81" (300mm) | 2.44" (62mm) | 6 / 7 | 49 psi (3.4 bar) | 149 psi (10.3 bar) | 4 Ply Poly |
| VACAC4P-313-0787-4 | 3.13" (80mm) | 7.87" (200mm) | 2.20" (56mm) | 4 / 3 | 47 psi (3.2 bar) | 143 psi (9.9 bar) | 4 Ply Poly |
| VACAC4P-350-0600-3 | 3.50" (90mm) | 5.98" (152mm) | 1.50" (38mm) | 3 / 2 | 43 psi (3.0 bar) | 132 psi (9.1 bar) | 4 Ply Poly |
| VACAC4P-350-0827-5 | 3.50" (90mm) | 8.27" (210mm) | 1.89" (48mm) | 5 / 4 | 43 psi (3.0 bar) | 132 psi (9.1 bar) | 4 Ply Poly |
| VACAC4P-400-0630-3 | 4.00" (102mm) | 6.30" (160mm) | 1.89" (48mm) | 3 / 2 | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Poly |
| VACAC4P-400-0827-5 | 4.00" (102mm) | 8.27" (210mm) | 1.89" (48mm) | 5 / 4 | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Poly |
| VACAC4P-400-0984-6 | 4.00" (102mm) | 9.84" (250mm) | 2.20" (56mm) | 6 / 5 | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Poly |
| VACAC4P-400-1102-7 | 4.00" (102mm) | 11.02" (280mm) | 2.48" (63mm) | 7 / 6 | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Poly |
| VACAC4P-450-0800-4 | 4.50" (114mm) | 7.87" (200mm) | 2.20" (56mm) | 4 / 3 | 32 psi (2.2 bar) | 99.2 psi (6.8 bar) | 4 Ply Poly |
