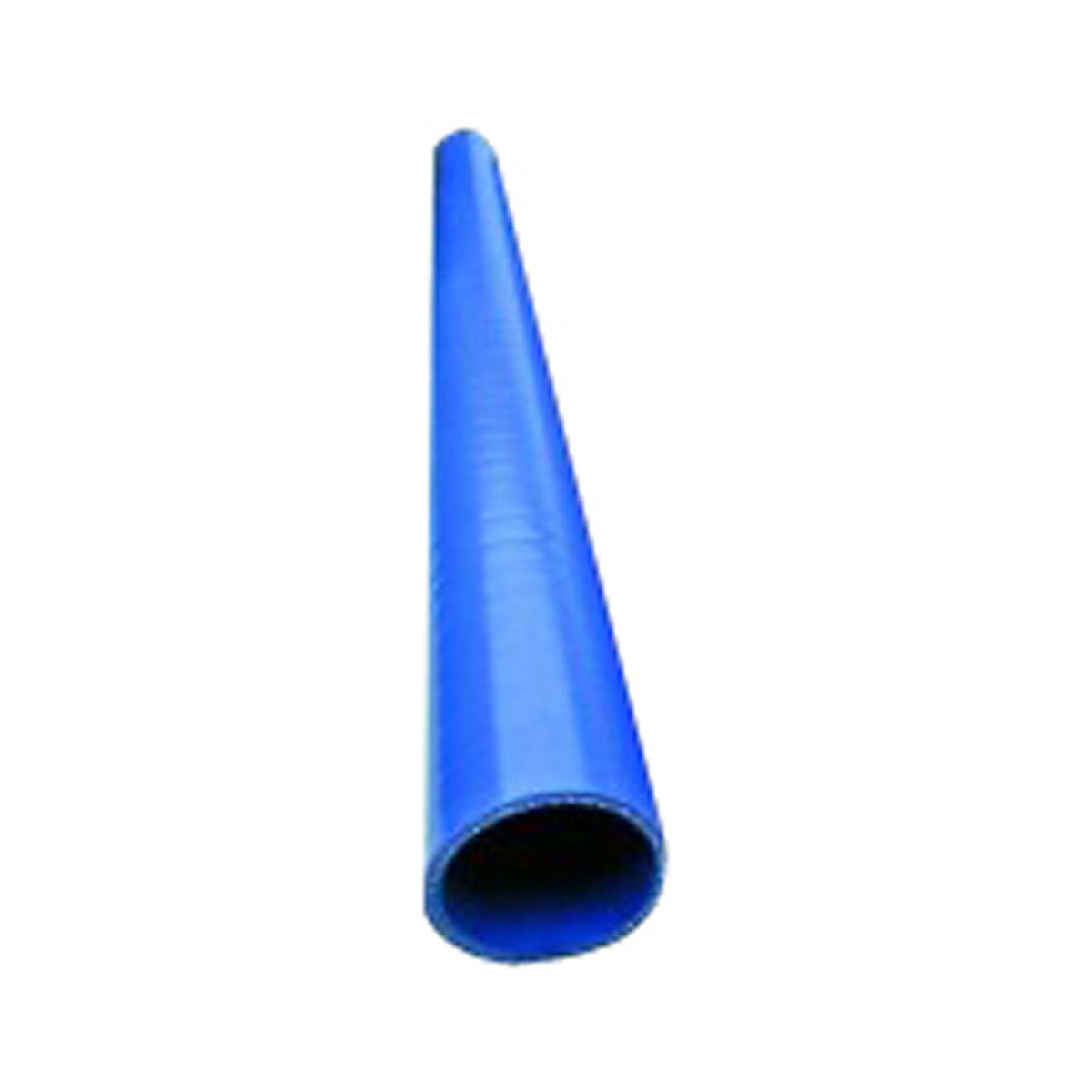

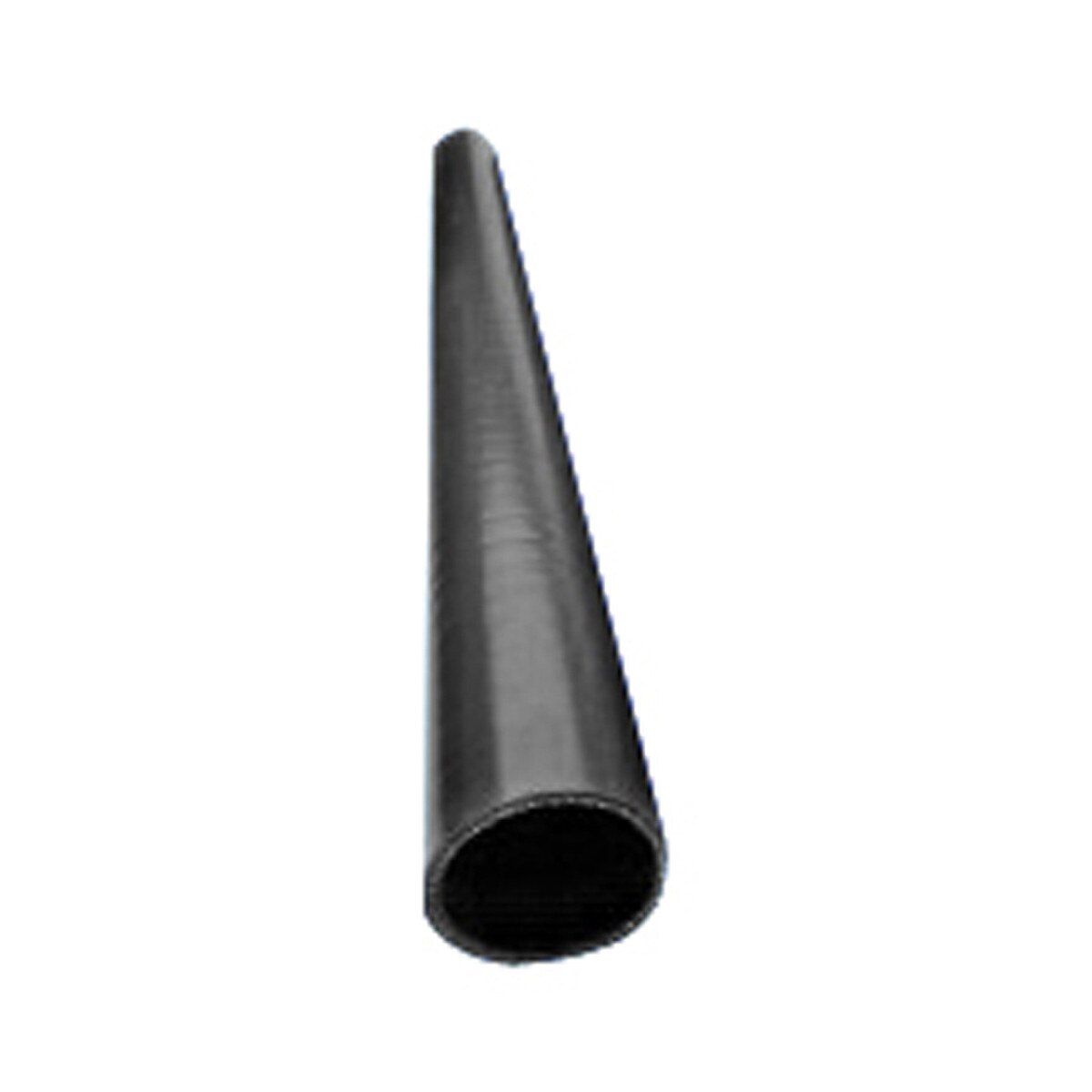

Venair Silicone Hose, 3' and 13' Lengths
Venair Silicone Couplers and Hose are hand crafted using the highest quality VMQ silicone and every silicone hose is subject to strict quality controls to ensure a flawless product that is free from defects.
This silicone hose is manufactured with either a 3-ply or 4-ply polyester reinforcement. 1/2" through 1-7/8" sticks have 3-ply polyester reinforcement, 2" and larger sticks feature 4-ply polyester reinforcement. Capable of withstanding high boost applications as well as temperatures from -76° up to 356° Fahrenheit. Unlike rubber hose, silicone will not spoil with age and is highly resistant to hardening while maintaining very good compression characteristics. These silicone sticks are great for making custom length silicone hose couplers or intake tubes.
Silicone Hose and Couplers Feature:
- Polyester Reinforcement (3 or 4 ply depending on size)
- -76° up to 356° Fahrenheit Operating Range
- Matching inner liner and outer jacket color
- Easy to cut
- Highly resistant to ozone
- Not affected by anti-freeze or anti-rust liquids
- Highly resistant to hardening
- Very good compression characteristics
- Very long life
- Reduced maintenance problems
- Not suitable for carrying gasoline, oil, or other pe(more...)
 | ||||||
| VMS Part # | Size (Hose ID) | OAL (Overall Length) | Working Pressure | Burst Pressure | Reinforcement | Color (*) |
|---|---|---|---|---|---|---|
| VAHSE3P-025-* | 0.25" (6mm) | 3' or 13' (1m or 4m) | 214 psi (14.8 bar) | 642 psi (44.3 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-031-* | 0.31" (8mm) | 3' or 13' (1m or 4m) | 172 psi (11.9 bar) | 517 psi (35.6 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-038-* | 0.39" (10mm) | 3' or 13' (1m or 4m) | 146 psi (10.1 bar) | 438 psi (30.2 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-050-* | 0.5" (13mm) | 3' or 13' (1m or 4m) | 120 psi (8.3 bar) | 360 psi (24.8 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-063-* | 0.63" (16mm) | 3' or 13' (1m or 4m) | 103 psi (7.1 bar) | 307 psi (21.2 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-075-* | 0.75" (19mm) | 3' or 13' (1m or 4m) | 90 psi (6.2 bar) | 270 psi (18.6 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-088-* | 0.88" (22mm) | 3' or 13' (1m or 4m) | 80 psi (5.5 bar) | 240 psi (16.5 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-100-* | 1" (25mm) | 3' or 13' (1m or 4m) | 72 psi (5 bar) | 217 psi (15 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-113-* | 1.13" (28mm) | 3' or 13' (1m or 4m) | 67 psi (4.6 bar) | 200 psi (13.8 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-119-* | 1.18" (30mm) | 3' or 13' (1m or 4m) | 62 psi (4.3 bar) | 188 psi (13 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-125-* | 1.25" (32mm) | 3' or 13' (1m or 4m) | 59 psi (4.1 bar) | 180 psi (12.4 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-138-* | 1.37" (35mm) | 3' or 13' (1m or 4m) | 55 psi (3.8 bar) | 176 psi (12.1 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-150-* | 1.5" (38mm) | 3' or 13' (1m or 4m) | 52 psi (3.6 bar) | 156 psi (10.8 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-156-* | 1.57" (40mm) | 3' or 13' (1m or 4m) | 50 psi (3.4 bar) | 150 psi (10.3 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-163-* | 1.63" (42mm) | 3' or 13' (1m or 4m) | 45 psi (3.1 bar) | 136 psi (9.4 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-175-* | 1.75" (45mm) | 3' or 13' (1m or 4m) | 45 psi (3.1 bar) | 136 psi (9.4 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE3P-188-* | 1.89" (48mm) | 3' or 13' (1m or 4m) | 43 psi (3 bar) | 130 psi (9 bar) | 3 Ply Poly | Black, Blue, or Red |
| VAHSE4P-200-* | 2" (51mm) | 3' or 13' (1m or 4m) | 66 psi (4.6 bar) | 198 psi (13.7 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-213-* | 2.13" (55mm) | 3' or 13' (1m or 4m) | 62 psi (4.3 bar) | 187 psi (12.9 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-225-* | 2.25" (57mm) | 3' or 13' (1m or 4m) | 61 psi (4.2 bar) | 182 psi (12.5 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-238-* | 2.38" (60mm) | 3' or 13' (1m or 4m) | 59 psi (4.1 bar) | 177 psi (12.2 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-250-* | 2.5" (63mm) | 3' or 13' (1m or 4m) | 56 psi (3.9 bar) | 169 psi (11.7 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-263-* | 2.63" (67mm) | 3' or 13' (1m or 4m) | 55 psi (3.8 bar) | 166 psi (11.4 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-275-* | 2.75" (70mm) | 3' or 13' (1m or 4m) | 52 psi (3.6 bar) | 158 psi (10.9 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-300-* | 3" (76mm) | 3' or 13' (1m or 4m) | 49 psi (3.4 bar) | 149 psi (10.3 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-313-* | 3.12" (80mm) | 3' or 13' (1m or 4m) | 47 psi (3.2 bar) | 143 psi (9.9 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-350-* | 3.5" (90mm) | 3' or 13' (1m or 4m) | 43 psi (3 bar) | 132 psi (9.1 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-375-* | 3.75" (95mm) | 3' or 13' (1m or 4m) | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-400-* | 4" (102mm) | 3' or 13' (1m or 4m) | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-413-* | 4.13" (105mm) | 3' or 13' (1m or 4m) | 37 psi (2.6 bar) | 114.7 psi (7.9 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-433-* | 4.33" (110mm) | 3' or 13' (1m or 4m) | 34 psi (2.3 bar) | 105.4 psi (7.3 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-450-* | 4.5" (115mm) | 3' or 13' (1m or 4m) | 32 psi (2.2 bar) | 99.2 psi (6.8 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-475-* | 4.75" (120mm) | 3' or 13' (1m or 4m) | 29 psi (2 bar) | 89.9 psi (6.2 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-500-* | 5" (127mm) | 3' or 13' (1m or 4m) | 27 psi (1.9 bar) | 83.7 psi (5.8 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-513-* | 5.12" (130mm) | 3' or 13' (1m or 4m) | 24 psi (1.7 bar) | 74.4 psi (5.1 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-525-* | 5.25" (133mm) | 3' or 13' (1m or 4m) | 24 psi (1.7 bar) | 74.4 psi (5.1 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-550-* | 5.5" (140mm) | 3' or 13' (1m or 4m) | 24 psi (1.7 bar) | 74.4 psi (5.1 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-600-* | 6" (152mm) | 3' or 13' (1m or 4m) | 24 psi (1.7 bar) | 74.4 psi (5.1 bar) | 4 Ply Poly | Black, Blue, or Red |
| VAHSE4P-800-* | 8" (204mm) | 3' or 13' (1m or 4m) | 21 psi (1.4 bar) | 65.1 psi (4.5 bar) | 4 Ply Poly | Black, Blue, or Red |
