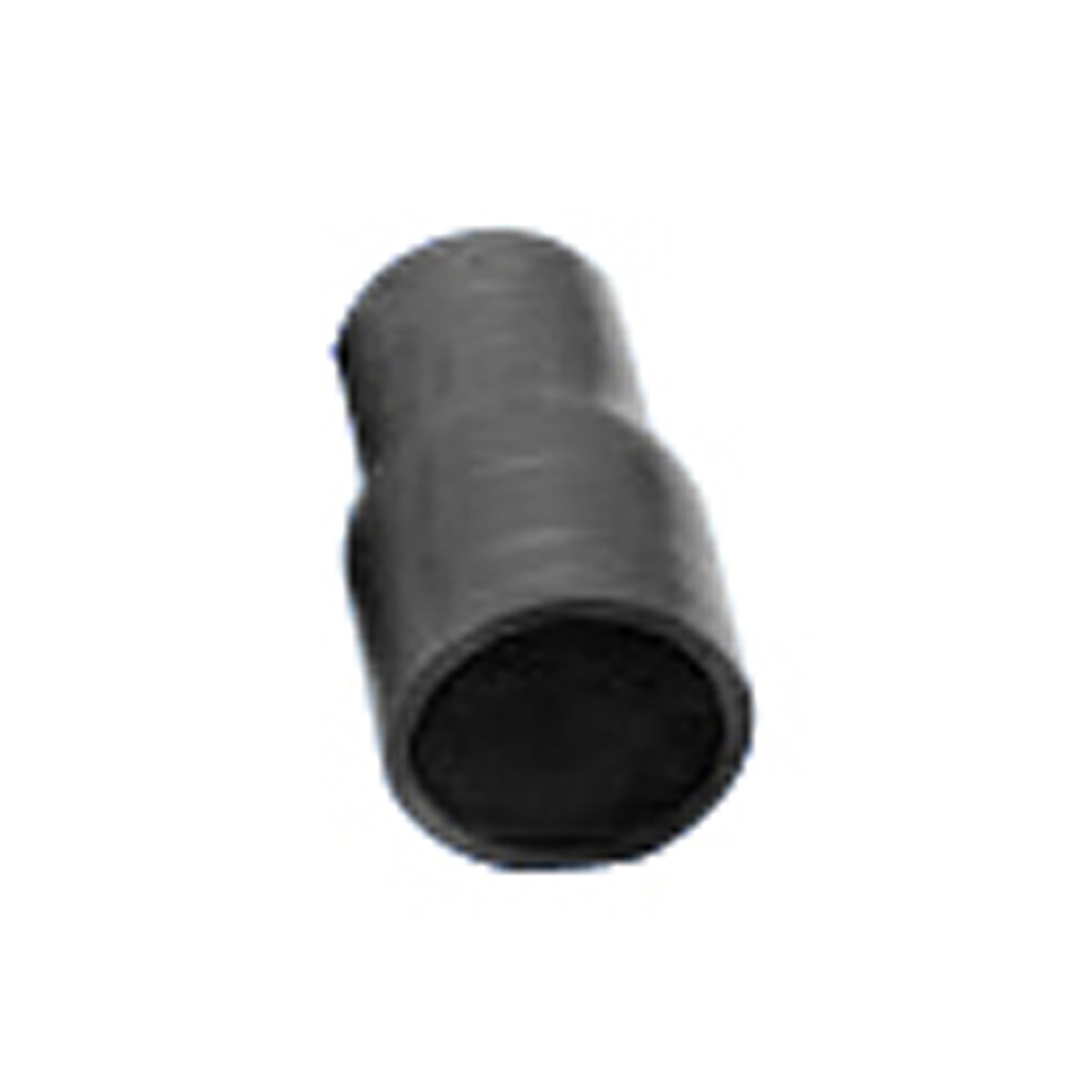

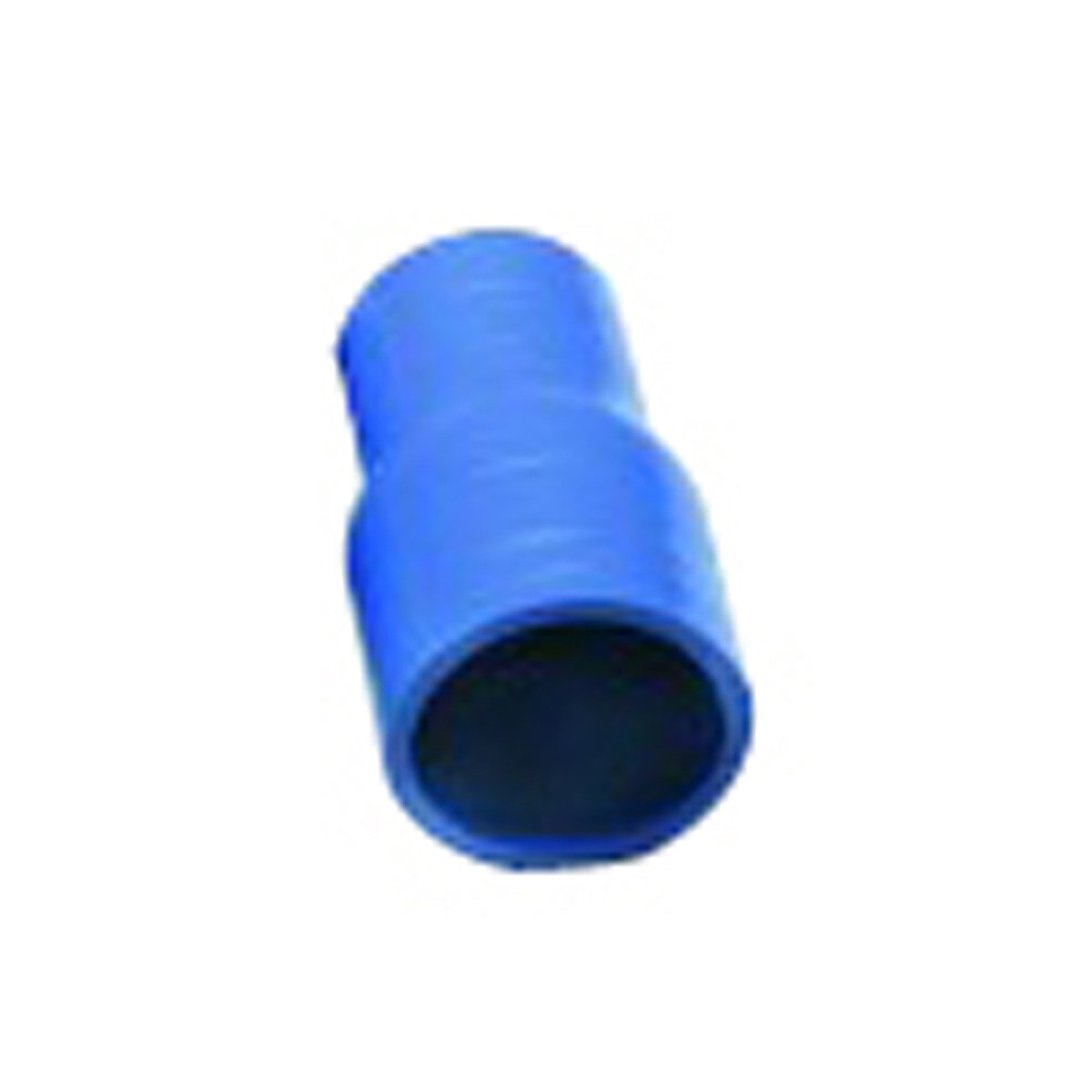

Venair Silicone Reducers
Venair Silicone Reducers are hand crafted using the highest quality VMQ silicone and every silicone hose is subject to strict quality controls to ensure a flawless product that is free from defects.
These silicone transitions are manufactured with either a 3-ply or 4-ply polyester reinforcement, depending on the size. 1/2" through 1-3/4" transitions have 3-ply polyester reinforcement, 2" and larger transitions feature 4-ply polyester reinforcement. Capable of withstanding high boost applications as well as temperatures from -76° up to 356° Fahrenheit. Unlike rubber hose, silicone will not spoil with age and is highly resistant to hardening while maintaining very good compression characteristics. These silicone hose transitions are perfect for finishing off your custom intercooler and turbo installation and they make a great upgrade for direct fitment intercooler kits.
Silicone Reducer Coupler Features:
- Polyester Reinforcement (3 or 4 ply depending on size)
- Length varies by size, see chart on specifications tab
- -76° up to 356° Fahrenheit Operating Range
- Matching inner liner and outer jacket color
- Highly resistant to ozone
- Not affected by anti-freeze or anti-rust liquids
- Highly resistant to hardening
- Very good compression characteristics
- Very long life
- Reduced maintenance problems
- Not suitable for carrying gasoline, oil, or other petroleum products
 | |||||||
| VMS Part # | Size 1 (ID 1) | Size 2 (ID 2) | Overall Length (OAL) | Working Pressure | Burst Pressure | Reinforcement | Color (*) |
|---|---|---|---|---|---|---|---|
| VARED3P-0500634-* | 0.50" (13mm) | 0.63" (16mm) | 4.00" (102mm) | 103 psi (7.1 bar) | 307 psi (21.2 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-0500754-* | 0.50" (13mm) | 0.75" (19mm) | 4.00" (102mm) | 90 psi (6.2 bar) | 270 psi (18.6 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-0630754-* | 0.63" (16mm) | 0.75" (19mm) | 4.00" (102mm) | 90 psi (6.2 bar) | 270 psi (18.6 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-0630884-* | 0.63" (16mm) | 0.88" (22mm) | 4.00" (102mm) | 80 psi (5.5 bar) | 240 psi (16.5 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-0750884-* | 0.75" (19mm) | 0.88" (22mm) | 4.00" (102mm) | 80 psi (5.5 bar) | 240 psi (16.5 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-0751004-* | 0.75" (19mm) | 1.00" (25mm) | 4.00" (102mm) | 72 psi (5.0 bar) | 217 psi (15.0 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-0751134-* | 0.75" (19mm) | 1.13" (28mm) | 4.00" (102mm) | 67 psi (4.6 bar) | 200 psi (13.8 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-0881134-* | 0.88" (22mm) | 1.13" (28mm) | 4.00" (102mm) | 67 psi (4.6 bar) | 200 psi (13.8 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-0881504-* | 0.88" (22mm) | 1.50" (38mm) | 4.00" (102mm) | 52 psi (3.6 bar) | 156 psi (10.8 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1001134-* | 1.00" (25mm) | 1.13" (28mm) | 4.00" (102mm) | 67 psi (4.6 bar) | 200 psi (13.8 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1001254-* | 1.00" (25mm) | 1.25" (32mm) | 4.00" (102mm) | 59 psi (4.1 bar) | 180 psi (12.4 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1001384-* | 1.00" (25mm) | 1.38" (35mm) | 4.00" (102mm) | 55 psi (3.8 bar) | 176 psi (12.1 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1001504-* | 1.00" (25mm) | 1.50" (38mm) | 4.00" (102mm) | 52 psi (3.6 bar) | 156 psi (10.8 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1131254-* | 1.13" (28mm) | 1.25" (32mm) | 4.00" (102mm) | 59 psi (4.1 bar) | 180 psi (12.4 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1131384-* | 1.13" (28mm) | 1.38" (35mm) | 4.00" (102mm) | 55 psi (3.8 bar) | 176 psi (12.1 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1131504-* | 1.13" (28mm) | 1.50" (38mm) | 4.00" (102mm) | 52 psi (3.6 bar) | 156 psi (10.8 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1251384-* | 1.25" (32mm) | 1.38" (35mm) | 4.00" (102mm) | 55 psi (3.8 bar) | 176 psi (12.1 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1251504-* | 1.25" (32mm) | 1.50" (38mm) | 4.00" (102mm) | 52 psi (3.6 bar) | 156 psi (10.8 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1251754-* | 1.25" (32mm) | 1.75" (45mm) | 4.00" (102mm) | 45 psi (3.1 bar) | 136 psi (9.4 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1381504-* | 1.38" (35mm) | 1.50" (38mm) | 4.00" (102mm) | 52 psi (3.6 bar) | 156 psi (10.8 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1381634-* | 1.38" (35mm) | 1.63" (40mm) | 4.00" (102mm) | 45 psi (3.1 bar) | 136 psi (9.4 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1381754-* | 1.38" (35mm) | 1.75" (45mm) | 4.00" (102mm) | 45 psi (3.1 bar) | 136 psi (9.4 bar) | 3 Ply Poly | Black or Blue |
| VARED3P-1501754-* | 1.50" (38mm) | 1.75" (45mm) | 4.00" (102mm) | 45 psi (3.1 bar) | 136 psi (9.4 bar) | 3 Ply Poly | Black or Blue |
| VARED4P-1502004-* | 1.50" (38mm) | 2.00" (51mm) | 4.00" (102mm) | 66 psi (4.6 bar) | 198 psi (13.7 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-1752004-* | 1.75" (45mm) | 2.00" (51mm) | 4.00" (102mm) | 66 psi (4.6 bar) | 198 psi (13.7 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-1882135-* | 1.88" (48mm) | 2.13" (54mm) | 5.00" (127mm) | 62 psi (4.3 bar) | 187 psi (12.9 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2002134-* | 2.00" (51mm) | 2.13" (54mm) | 4.00" (102mm) | 62 psi (4.3 bar) | 187 psi (12.9 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2002254-* | 2.00" (51mm) | 2.25" (57mm) | 4.00" (102mm) | 61 psi (4.2 bar) | 182 psi (12.5 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2002385-* | 2.00" (51mm) | 2.38" (60mm) | 5.00" (127mm) | 59 psi (4.1 bar) | 177 psi (12.2 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2002505-* | 2.00" (51mm) | 2.50" (63mm) | 5.00" (127mm) | 56 psi (3.9 bar) | 169 psi (11.7 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2002755-* | 2.00" (51mm) | 2.75" (70mm) | 5.00" (127mm) | 52 psi (3.6 bar) | 158 psi (10.9 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2003005-* | 2.00" (51mm) | 3.00" (76mm) | 5.00" (127mm) | 49 psi (3.4 bar) | 149 psi (10.3 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2252505-* | 2.25" (57mm) | 2.50" (63mm) | 5.00" (127mm) | 56 psi (3.9 bar) | 169 psi (11.7 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2252755-* | 2.25" (57mm) | 2.75" (70mm) | 5.00" (127mm) | 52 psi (3.6 bar) | 158 psi (10.9 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2382755-* | 2.38" (60mm) | 2.75" (70mm) | 5.00" (127mm) | 52 psi (3.6 bar) | 158 psi (10.9 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2383005-* | 2.38" (60mm) | 3.00" (76mm) | 5.00" (127mm) | 49 psi (3.4 bar) | 149 psi (10.3 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2502755-* | 2.50" (63mm) | 2.75" (70mm) | 5.00" (127mm) | 52 psi (3.6 bar) | 158 psi (10.9 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2503005-* | 2.50" (63mm) | 3.00" (76mm) | 5.00" (127mm) | 49 psi (3.4 bar) | 149 psi (10.3 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2633005-* | 2.63" (67mm) | 3.00" (76mm) | 5.00" (127mm) | 49 psi (3.4 bar) | 149 psi (10.3 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2753005-* | 2.75" (70mm) | 3.00" (76mm) | 5.00" (127mm) | 49 psi (3.4 bar) | 149 psi (10.3 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-2753135-* | 2.75" (70mm) | 3.13" (80mm) | 5.00" (127mm) | 47 psi (3.2 bar) | 143 psi (9.9 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-3003505-* | 3.00" (76mm) | 3.50" (89mm) | 5.00" (127mm) | 43 psi (3.0 bar) | 132 psi (9.1 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-3004006-* | 3.00" (76mm) | 4.00" (102mm) | 6.00" (152mm) | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-3133506-* | 3.13" (80mm) | 3.50" (89mm) | 6.00" (152mm) | 43 psi (3.0 bar) | 132 psi (9.1 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-3504006-* | 3.50" (89mm) | 4.00" (102mm) | 6.00" (152mm) | 40 psi (2.8 bar) | 121 psi (8.3 bar) | 4 Ply Poly | Black or Blue |
| VARED4P-4005006-* | 4.00" (102mm) | 5.00" (127mm) | 6.00" (152mm) | 27 psi (1.9 bar) | 83.7 psi (5.8 bar) | 4 Ply Poly | Black or Blue |
