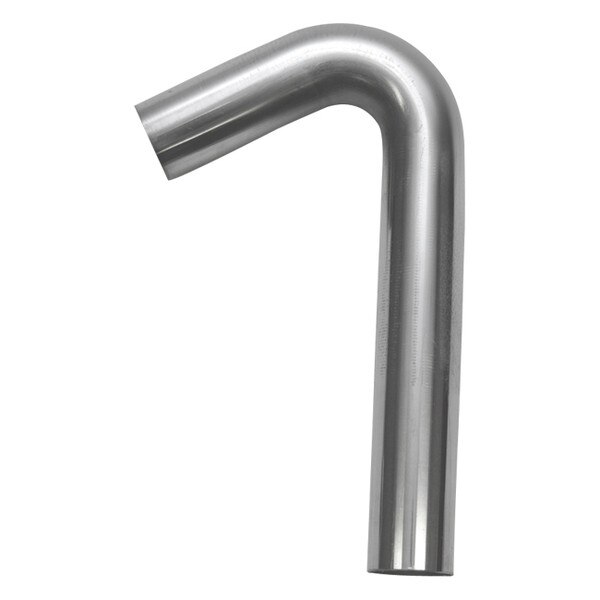

Verocious 120 Degree Mandrel Bends, Mild Steel
Verocious 120 Degree Mild Steel Mandrel Bends are mandrel bent from 16 gauge (0.065 wall) 1010 mild steel tubing. Smooth and true throughout, these high quality 120 degree elbows are perfect for custom exhaust fabrication.
Verocious Motorsports Mild Steel Bends are made right here in the USA --- Buy Proud, Buy American!
 | |||||
| VMS Part # | Tube OD | Leg (A) | Leg (B) | Bend Radius (R) | Wall Thickness |
|---|---|---|---|---|---|
| 120MS16-100100-4X6 | 1.00" (25.4mm) | 4.00" (101.6mm) | 6.00" (152.4mm) | 1.00 (25.4mm) | 16 ga. (0.065") |
| 120MS16-125125-1.25X6 | 1.25" (31.75mm) | 1.25" (31.75mm) | 6.00" (152.4mm) | 1.25 (31.75mm) | 16 ga. (0.065") |
| 120MS16-138150-4X6 | 1.38" (35.1mm) | 4.00" (101.6mm) | 6.00" (152.4mm) | 1.50 (38.1mm) | 16 ga. (0.065") |
| 120MS16-150150-1.5X6 | 1.50" (38.1mm) | 1.50" (38.1mm) | 6.00" (152.4mm) | 1.50 (38.1mm) | 16 ga. (0.065") |
| 120MS16-163163-4X6 | 1.63" (41.4mm) | 4.00" (101.6mm) | 6.00" (152.4mm) | 1.63 (41.4mm) | 16 ga. (0.065") |
| 120MS16-175175-1.75X6 | 1.75" (44.45mm) | 1.75" (44.45mm) | 6.00" (152.4mm) | 1.75 (44.45mm) | 16 ga. (0.065") |
| 120MS16-200200-2X6 | 2.00" (50.8mm) | 2.00" (50.8mm) | 6.00" (152.4mm) | 2.00 (50.8mm) | 16 ga. (0.065") |
| 120MS16-225225-2.25X6 | 2.25" (57.15mm) | 2.25" (57.15mm) | 6.00" (152.4mm) | 2.25 (57.15mm) | 16 ga. (0.065") |
| 120MS16-250250-2.5X6 | 2.50" (63.5mm) | 2.50" (63.5mm) | 6.00" (152.4mm) | 2.50 (63.5mm) | 16 ga. (0.065") |
| 120MS16-275300-2.75X6 | 2.75" (69.85mm) | 2.75" (69.85mm) | 6.00" (152.4mm) | 3.00 (76.2mm) | 16 ga. (0.065") |
| 120MS16-300300-3X6 | 3.00" (76.2mm) | 3.00" (76.2mm) | 6.00" (152.4mm) | 3.00 (76.2mm) | 16 ga. (0.065") |
| 120MS16-350350-3.5X6 | 3.50" (88.9mm) | 3.50" (88.9mm) | 6.00" (152.4mm) | 3.50 (88.9mm) | 16 ga. (0.065") |
| 120MS16-400400-4X6 | 4.00" (101.6mm) | 4.00" (101.6mm) | 6.00" (152.4mm) | 4.00 (101.6mm) | 16 ga. (0.065") |
