• Verocious 90 Degree Mandrel Bends, 304 Stainless Steel

Verocious 90 Degree Mandrel Bends, 304 Stainless Steel

(0)No Reviews yet
Back

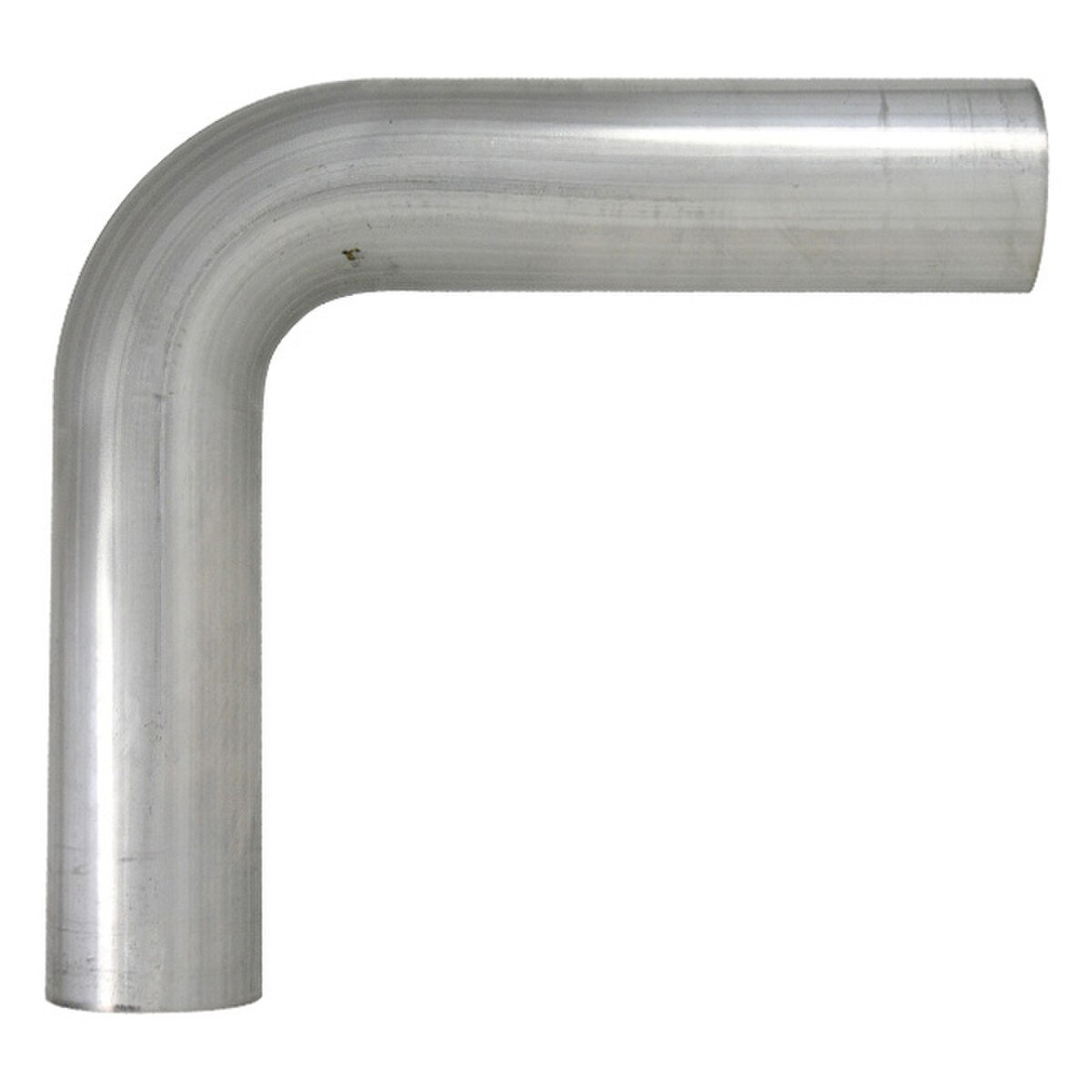

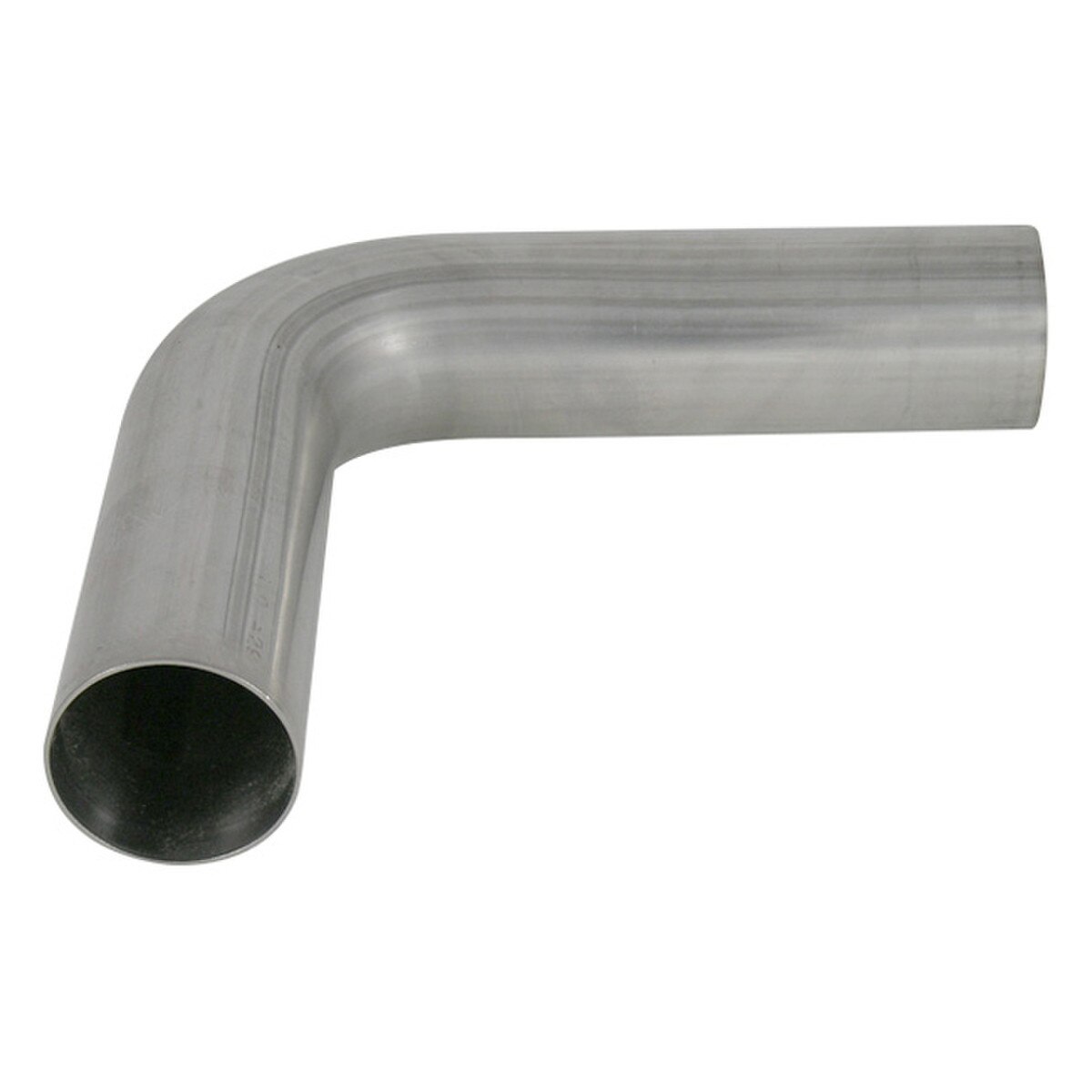

Our 90 degree mandrel bends are made from 304 Stainless Steel 16 Gauge (.065 wall) Tubing. Use these mandrel bends for fabricating your custom high performance intake and exhaust systems. These high quality Stainless Steel mandrel bends are smooth and true throughout.

Verocious Motorsports Stainless Steel Bends are made right here in the USA --- Buy Proud, Buy American!

Back
VMS Part #Tube ODLeg
(A)		Leg
(B)		Bend
Radius
(R)		Wall
Thickness
0900416-063100-3X30.63"
(15.9mm)		3.00"
(76.2mm)		3.00"
(76.2mm)		1.00"
(25.4mm)		16 ga.
(0.065")
0900416-075100-3X30.75"
(19.1mm)		3.00"
(76.2mm)		3.00"
(76.2mm)		1.00"
(25.4mm)		16 ga.
(0.065")
0900416-088150-6X60.88"
(22.4mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		1.50"
(38.1mm)		16 ga.
(0.065")
0900416-100100-6X61.00"
(25.4mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		1.00"
(25.4mm)		16 ga.
(0.065")
0900416-100150-3X91.00"
(25.4mm)		3.00"
(76.2mm)		9.00"
(228.6mm)		1.50"
(38.1mm)		16 ga.
(0.065")
0900416-125125-6X61.25"
(31.8mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		1.25"
(31.8mm)		16 ga.
(0.065")
0900416-138150-6X61.38"
(35.1mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		1.50"
(38.1mm)		16 ga.
(0.065")
0900416-138250-6X61.38"
(35.1mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		2.50"
(63.5mm)		16 ga.
(0.065")
0900416-150150-6X61.50"
(38.1mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		1.50"
(38.1mm)		16 ga.
(0.065")
0900416-150300-6X61.50"
(38.1mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		3.00"
(76.2mm)		16 ga.
(0.065")
0900416-163163-6X61.63"
(41.4mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		1.63"
(41.4mm)		16 ga.
(0.065")
0900416-163250-6X61.63"
(41.4mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		2.50"
(63.5mm)		16 ga.
(0.065")
0900416-175175-6X61.75"
(44.5mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		1.75"
(44.5mm)		16 ga.
(0.065")
0900416-175250-6X61.75"
(44.5mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		2.50"
(63.5mm)		16 ga.
(0.065")
0900416-188188-6X61.88"
(47.8mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		1.88"
(47.8mm)		16 ga.
(0.065")
0900416-188250-6X61.88"
(47.8mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		2.50"
(63.5mm)		16 ga.
(0.065")
0900416-200200-6X62.00"
(50.8mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		2.00"
(50.8mm)		16 ga.
(0.065")
0900416-200300-6X62.00"
(50.8mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		3.00"
(76.2mm)		16 ga.
(0.065")
0900416-200400-6X62.00"
(50.8mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		4.00"
(101.6mm)		16 ga.
(0.065")
0900416-213250-6X62.13"
(54.1mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		2.50"
(63.5mm)		16 ga.
(0.065")
0900416-213400-6X62.13"
(54.1mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		4.00"
(101.6mm)		16 ga.
(0.065")
0900416-225225-6X62.25"
(57.2mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		2.25"
(57.2mm)		16 ga.
(0.065")
0900416-225350-6X62.25"
(57.2mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		3.50"
(88.9mm)		16 ga.
(0.065")
0900416-238250-6X62.38"
(60.5mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		2.50"
(63.5mm)		16 ga.
(0.065")
0900416-238600-6X62.38"
(60.5mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		16 ga.
(0.065")
0900416-250250-6X62.50"
(63.5mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		2.50"
(63.5mm)		16 ga.
(0.065")
0900416-250375-6X62.50"
(63.5mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		3.75"
(95.3mm)		16 ga.
(0.065")
0900416-250600-4X62.50"
(63.5mm)		4.00"
(152.4mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		16 ga.
(0.065")
0900416-275300-6X62.75"
(69.9mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		3.00"
(76.2mm)		16 ga.
(0.065")
0900416-275400-6X62.75"
(69.9mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		4.00"
(101.6mm)		16 ga.
(0.065")
0900416-300300-6X63.00"
(76.2mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		3.00"
(76.2mm)		16 ga.
(0.065")
0900416-300450-6X63.00"
(76.2mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		4.50"
(114.3mm)		16 ga.
(0.065")
0900416-300600-8X83.00"
(76.2mm)		8.00"
(203.2mm)		8.00"
(203.2mm)		6.00"
(152.4mm)		16 ga.
(0.065")
0900416-350350-4X83.50"
(88.9mm)		4.00"
(101.6mm)		8.00"
(203.2mm)		3.50"
(88.9mm)		16 ga.
(0.065")
0900416-350450-5X73.50"
(88.9mm)		5.00"
(127.0mm)		7.00"
(177.8mm)		4.50"
(114.3mm)		16 ga.
(0.065")
0900416-400400-4X94.00"
(101.6mm)		4.00"
(101.6mm)		9.00"
(228.6mm)		4.00"
(101.6mm)		16 ga.
(0.065")
0900416-400600-6X84.00"
(101.6mm)		6.00"
(152.4mm)		8.00"
(203.2mm)		6.00"
(152.4mm)		16 ga.
(0.065")
0900416-450450-8X84.50"
(114.3mm)		8.00"
(203.2mm)		8.00"
(203.2mm)		4.50"
(114.3mm)		16 ga.
(0.065")
0900416-450675-7X84.50"
(114.3mm)		7.00"
(127.0mm)		8.00"
(228.6mm)		6.75"
(171.5mm)		16 ga.
(0.065")
0900416-500525-5X95.00"
(127.0mm)		5.00"
(127.0mm)		9.00"
(228.6mm)		5.25"
(133.4mm)		16 ga.
(0.065")
0900416-500750-5X95.00"
(127.0mm)		5.00"
(127.0mm)		9.00"
(228.6mm)		7.50"
(190.5mm)		16 ga.
(0.065")
0900416-600600-6X66.00"
(152.4mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		6.00"
(152.4mm)		16 ga.
(0.065")
