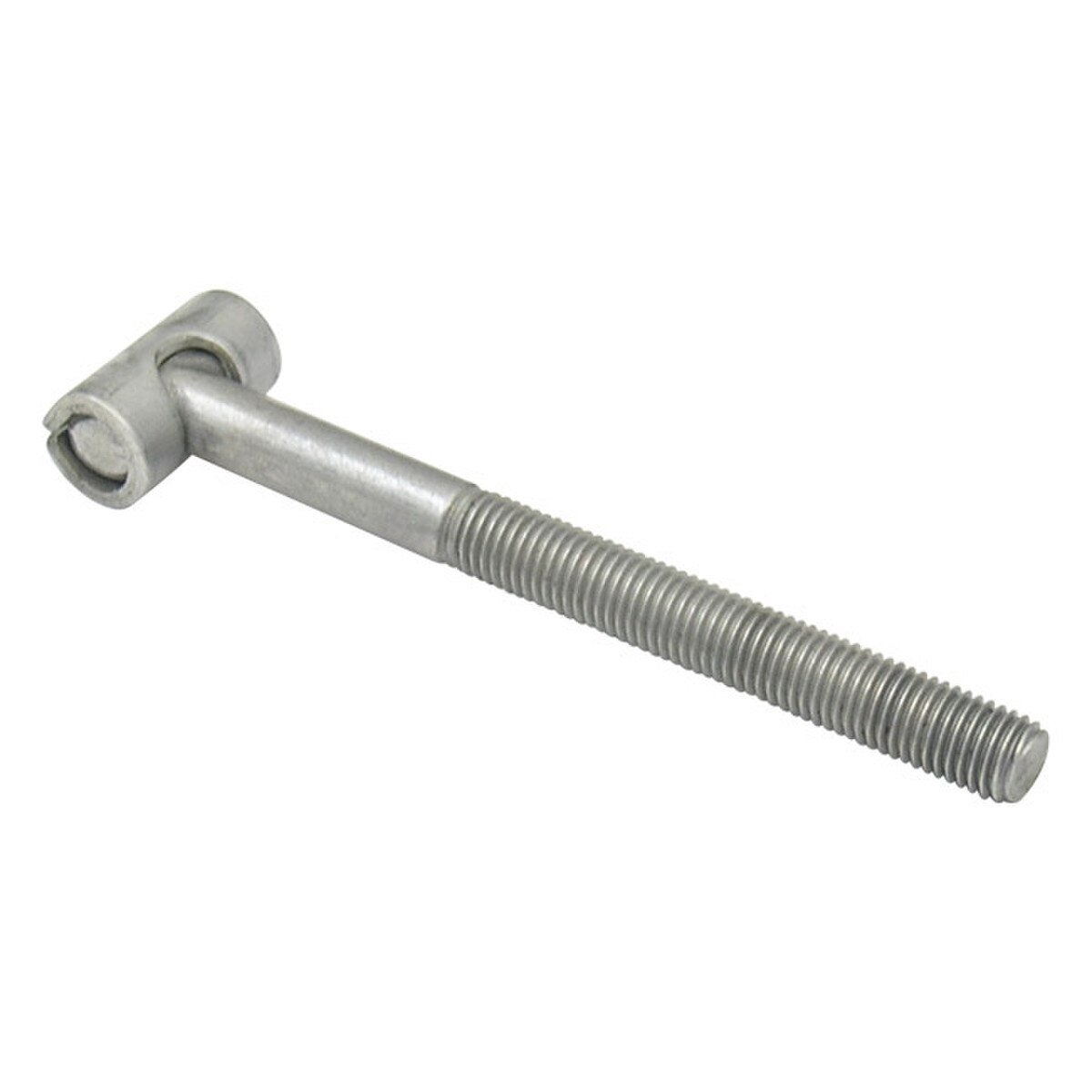

Verocious Motorsports V-Band Repair Kits - Replacement T-Bolts
Need to replace a broken or galled v-band clamp bolt? Choose from our standard or premium replacement v-band t-bolts to get you back up and running. Available in standard factory spec 420 stainless steel or upgrade to a premium 431 stainless steel bolt that's been heat treated for over 125,000 psi tensile strength! All of our v-band clamps, flanges, and components are manufactured in a ISO 9001 certified facility.
Note: The first thing you should do before installing any nuts (even the mock-up one) on your v-band bolts is apply a coating of anti-seize which will alleviate any problems with galling. The use of anti-seize will significantly extend your bolt/nuts life-cycle.
All Verocious V-Band clamps up to 2.75" utilize 1/4"-28 hardware. 3" and larger Verocious clamps take the 5/16-24 hardware. All size of Vibrant clamps utilize 1/4"-28 hardware.
Verocious V-Band Torque Specs:
- 1/4"-28 hardware - 90 in-lbs (1.5" - 2.75" clamps)
- 5/16"-24 hardware - 160 in-lbs (3" - 5" clamps)
Verocious V-Band Repair Bolts | |||||
VMS Part # | SKU # | Length | Thread | Clamp Size | Style |
---|---|---|---|---|---|
VMSVBBOLT-1/4-STD | 100234 | 3" | 1/4"-28 | 1.5" - 2.75" | Standard |
VMSVBBOLT-5/16-STD | 100235 | 3.5" | 5/16"-24 | 3" - 5" | Standard |
VMSVBBOLT-1/4-PRE | 100236 | 3" | 1/4"-28 | 1.5" - 2.75" | Premium |
VMSVBBOLT-5/16-PRE | 100237 | 3.5" | 5/16"-24 | 3" - 5" | Premium |
